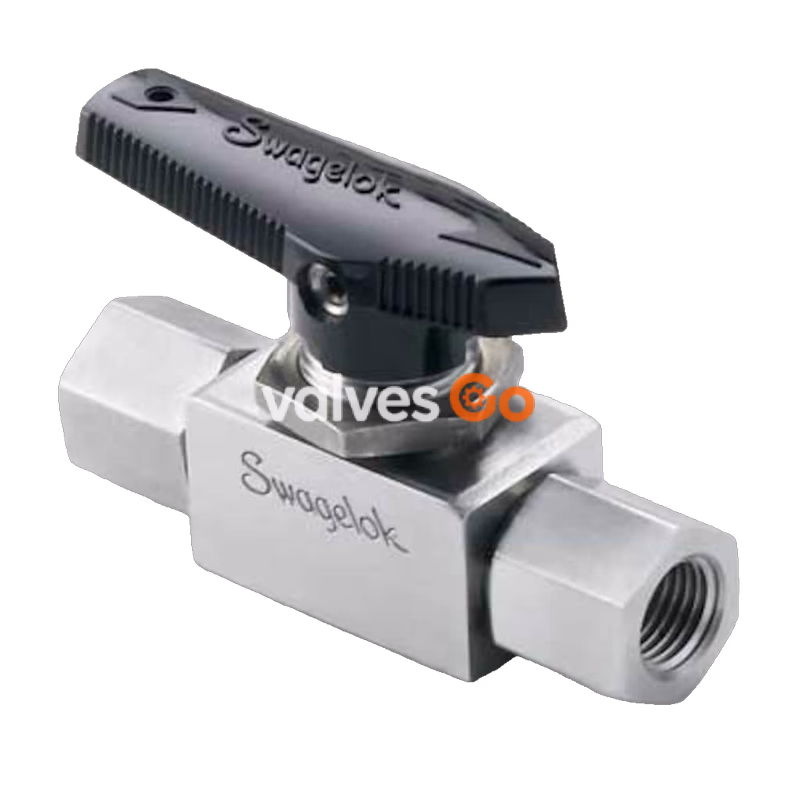

Swagelok SS-4SKPM4 is a 316 stainless steel multipurpose ball valve from the SK series, designed for durable service in both low- and high-pressure fluid systems. This 2-way straight pattern valve features 1/4 in. male NPT end connections and is processed according to Swagelok Standard Cleaning and Packaging (SC-10).

Technical Specifications

Specification	Detail
Body Material	316 Stainless Steel
Connection 1	1/4 in. Male NPT
Connection 2	1/4 in. Male NPT
Cleaning	Standard Cleaning and Packaging (SC-10)
Design	2-Way Straight Pattern
UNSPSC	40141607

Design Features

The SK series multipurpose ball valves are engineered for maximum flow in a compact design. They offer low operating torque and a wide temperature range, making them suitable for a variety of industrial applications.

Configuration Note

This model is configured as a 2-way straight pattern valve, facilitating efficient flow control in linear piping arrangements. It provides reliable shut-off and service longevity in demanding environments.

Selection and Safety

The total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Do not mix or interchange Swagelok products or components with those of other manufacturers.
