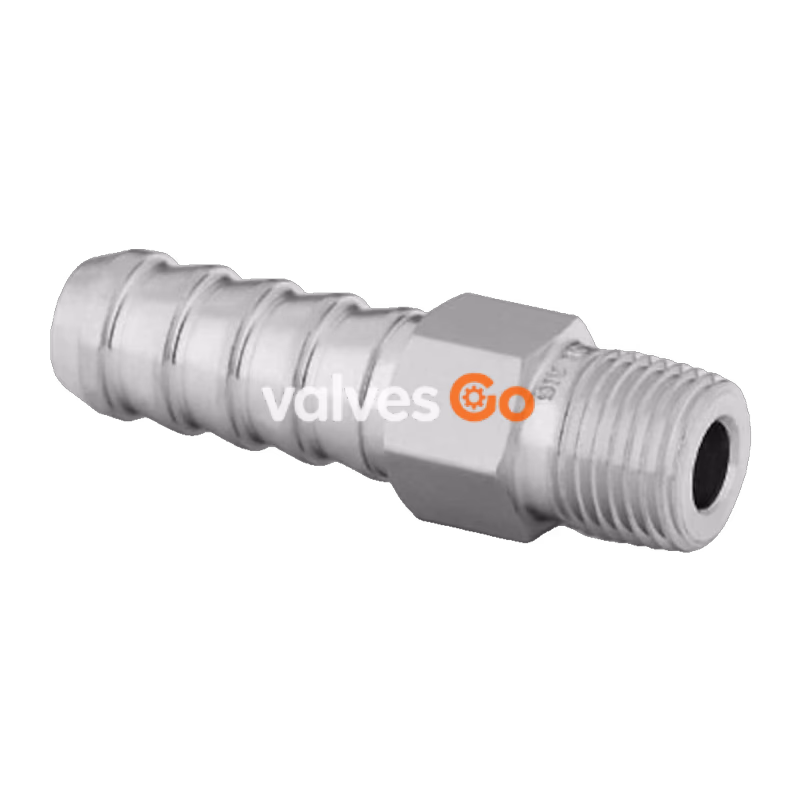

Swagelok SS-6-HC-1-4 is a 316 stainless steel hose connector designed for integrating flexible tubing into industrial systems. It features a 1/4 in. male NPT end connection and a 3/8 in. hose identification (ID) barb, providing a reliable transition for a variety of Swagelok hoses and flexible plastic tubing. The 316 stainless steel construction ensures excellent corrosion resistance and durability in demanding process environments.

Technical Specifications

Specification	Detail
Body Material	316 Stainless Steel
Connection 1 Size	1/4 in.
Connection 1 Type	Male NPT
Hose Size	3/8 in.
eClass (10.1)	27302103
UNSPSC (15.1)	40141734

Connectors for Plastic Tubing

These end connections are suitable for a wide variety of Swagelok hoses and flexible tubing, enabling easy field installation without specialized tooling. The broader selection includes:

• Swagelok tube fittings and adapters
• Male NPT fittings
• Male ISO/BSP tapered fittings
• Unions

Safe Product Selection

The total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Do not mix or interchange Swagelok products or components with those of other manufacturers, as they are not governed by universal industrial design standards.
