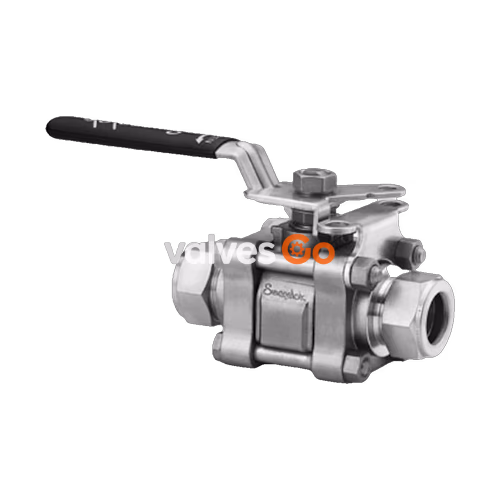

Swagelok SS-62TS6-JL is a 316 stainless steel 3-piece 60 series 2-way ball valve. It features 3/8 in. Swagelok tube fittings, reinforced PTFE seats, a locking lever handle, and a room temperature pressure rating of 2200 psig, providing reliable, low-maintenance shutoff for general service applications.
2-Way Straight Pattern
Quarter-turn 60 series ball valves offer versatile actuation and are available in multiple alloys. The 3-piece process/instrumentation design features unique coned-disc spring-loaded seats, live-loaded two-piece V-ring stem packing, and a three-piece swing-out design engineered for high reliability and low maintenance. A range of configurations are available, including optional vent porting.
Specifications
| Specification | Value |
|---|---|
| Ball/Stem Material | Stainless Steel |
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 3/8 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 3/8 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 3.8 |
| Fastener Material | 316 Stainless Steel |
| Flange Seal Material | Fluorocarbon FKM |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Locking SS Lever |
| Low Emissions Certified | Yes |
| Room Temperature Pressure Rating | 2200 PSIG @ 100°F / 151 BAR @ 37℃ |
| Seat Material | Reinforced PTFE |
| Seat Spring Material | 316 Stainless Steel |
| Service Class | General |
| Stem Bearing Material | Alloy X750 |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37010401 |
| eClass (6.1) | 37010401 |
| eClass (10.1) | 37010401 |
| UNSPSC (4.03) | 40141607 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (17.1001) | 40183104 |
Safety and Compatibility
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
