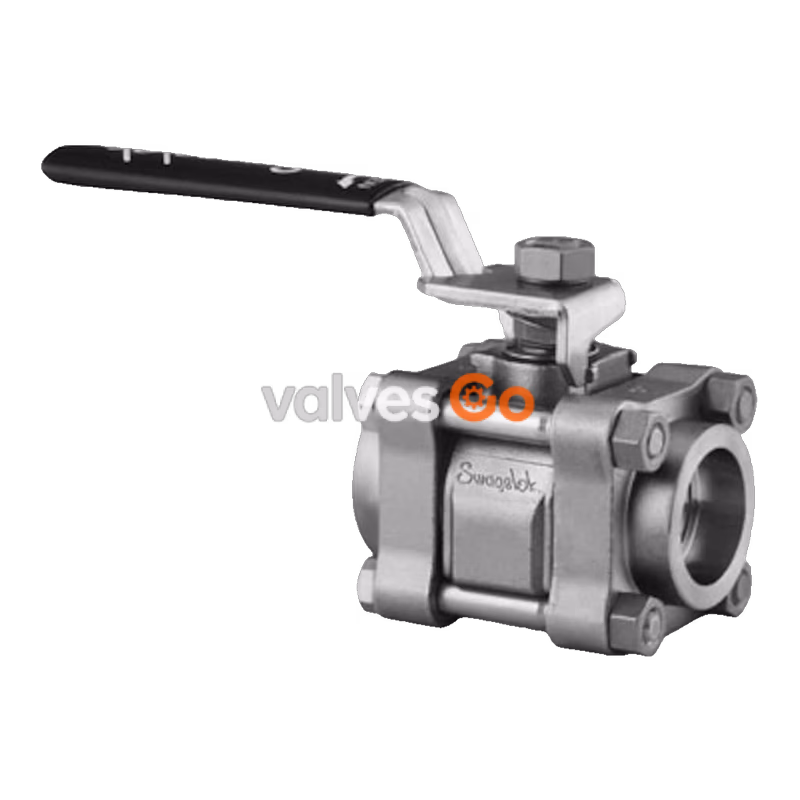

Swagelok 60 Series ball valve SS-65TSW12P is a 3-piece, 2-way straight pattern valve designed for general industrial service. This quarter-turn ball valve features 3/4 in. pipe socket weld ends and a 316 stainless steel body, providing reliable shutoff in a versatile, swing-out design that simplifies maintenance and service.

The 60 series utilizes a unique design with coned-disc spring-loaded seats and live-loaded two-piece V-stem packing to ensure high reliability. The lever handle provides clear visual indication of the valve position and easy operation.

Technical Specifications

Feature	Details
Ball/Stem Material	Stainless Steel
Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Flow Pattern	2-Way, Shutoff, Straight
Handle Style	Lever (Black)
Pressure Rating	2200 PSIG @ 100°F / 151 BAR @ 37°C
Seat Material	Reinforced PTFE
Seat Spring Material	316 Stainless Steel
Flange Seal Material	Fluorocarbon FKM
Service Class	General
Testing	According to Swagelok WS-22

Construction and Serviceability

The three-piece, swing-out design allows the center section to be removed by simply removing one bolt, facilitating quick and easy seat and seal replacement without removing the valve from the system piping. This makes it an ideal choice for processes requiring frequent inspection or maintenance.

System Safety

The total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Do not mix or interchange Swagelok products or components with those of other manufacturers.
