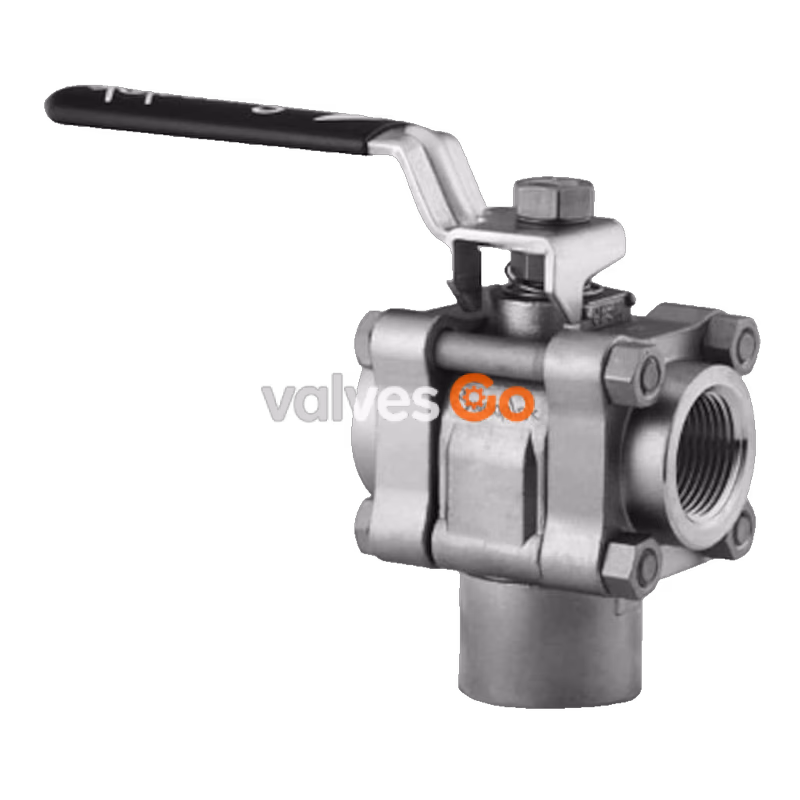

Swagelok SS-65XTF16 is a 3-piece 60 series 3-way ball valve engineered for reliable, low-maintenance switching in demanding process and instrumentation systems. This 316 stainless steel valve features 1 in. female NPT ports and a swing-out design that allows for easy in-line maintenance without removing the entire valve from the system.

Design and Performance

The 60 series ball valve utilizes a unique conical disc spring-loaded seat design and live-loaded two-piece V-stem packing to ensure consistent sealing across various pressure and temperature ranges. The reinforced PTFE (RPTFE) seats provide excellent chemical compatibility and wear resistance.

Technical Specifications

Feature	Specification
Ball/Stem Material	Stainless Steel
Body Material	316 Stainless Steel
Flow Pattern	3-Way, Switching
CV Maximum	12
Seat Material	Reinforced PTFE
Seal Material	Fluorocarbon FKM (Flange)
Pressure Rating	1000 PSIG @ 100°F / 68.9 BAR @ 37°C
Handle Style	Black Lever
Stem Bearing	Alloy X750
Testing	According to WS-22

Low Emissions Certification

This product is certified for low emissions, supporting environmental and safety compliance in process applications.

System Safety

The total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Do not mix Swagelok components with those of other manufacturers.
