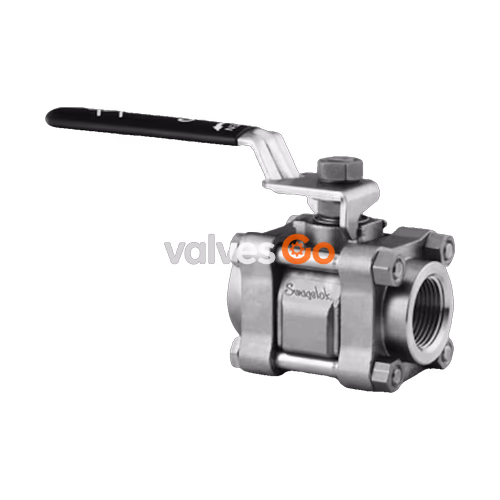

Swagelok SS-67TF24 stainless steel 3-piece 60 series ball valve. This 1 1/2" valve features female NPT (FNPT) ends and reinforced PTFE seats with a 2-way straight pattern flow. It utilizes a swing-out design that is rated for 1500 PSIG at 100°F. The valve is built for durability, clean shutoff, and easy service in general industrial applications.

2-Way Straight Pattern

Quarter-turn ball valves offer versatile actuation and are available in multiple alloys. A range of configurations are available, including optional vent porting.

Specifications

Specification	Value
Ball/Stem Material	Stainless Steel
Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1 1/2 in.
Connection 1 Type	Female NPT
Connection 2 Size	1 1/2 in.
Connection 2 Type	Female NPT
CV Maximum	100
Fastener Material	316 Stainless Steel
Flange Seal Material	Fluorocarbon FKM
Flow Pattern	2-Way, Shutoff, Straight
Handle Color	Black
Handle Style	Lever
Low Emissions Certified	Yes
Room Temperature Pressure Rating	1500 PSIG @ 100°F / 103 BAR @ 37°C
Seat Material	Reinforced PTFE
Seat Spring Material	316 Stainless Steel
Service Class	General
Stem Bearing Material	Alloy X750
Testing	Testing according to WS-22
eClass (4.1/5.1.4/6.0/6.1/10.1)	37010401
UNSPSC (4.03/10.0/11.0501/13.0601/15.1)	40141607
UNSPSC (17.1001)	40183106

System Design and Intermixing

The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
