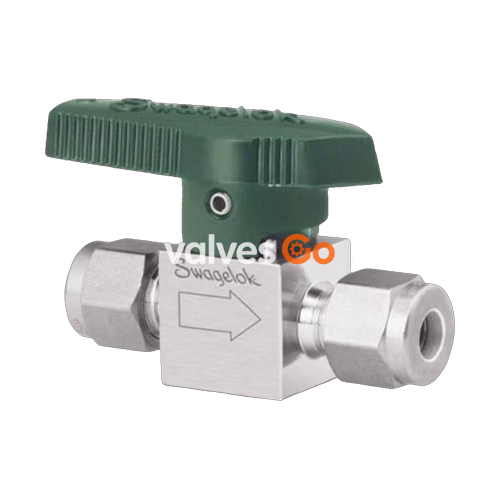

Swagelok SS-6P4T-MM is a 316 stainless steel quarter-turn instrument plug valve with 6 mm Swagelok tube fittings. It features a simple, compact 2-way straight pattern design that delivers full flow and positive shutoff.
These quarter-turn plug valves provide an economical and reliable alternative to ball valves while maintaining dependable low-torque actuation. They are available in a variety of body and seal materials to suit different instrument and process applications.
Specifications
| Specification | Value |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 6mm |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 6mm |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 2.3 |
| Handle Color | Green |
| Handle Style | Directional |
| eClass (4.1) | 37010416 |
| eClass (5.1.4) | 37010416 |
| eClass (6.0) | 37010416 |
| eClass (6.1) | 37010416 |
| eClass (10.1) | 37010416 |
| UNSPSC (4.03) | 40141600 |
| UNSPSC (10.0) | 40141626 |
| UNSPSC (11.0501) | 40141626 |
| UNSPSC (13.0601) | 40141626 |
| UNSPSC (15.1) | 40141626 |
| UNSPSC (17.1001) | 40183109 |
WARNING
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
