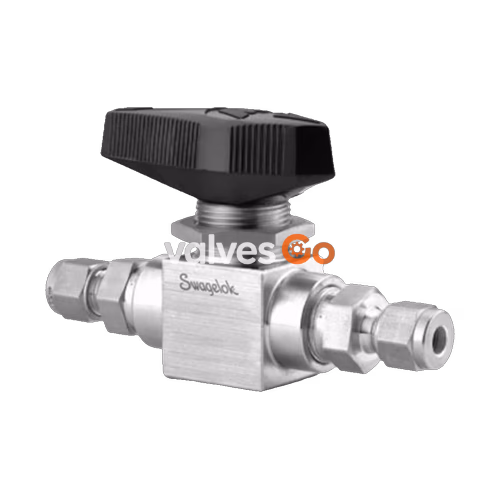

Swagelok SS-83KS10MM is a 316 stainless steel 3-piece high-pressure ball valve designed for reliable shutoff in demanding applications. This valve features PCTFE seats and 10 mm Swagelok tube fitting end connections, providing a robust solution for high-pressure fluid systems. It is Low Emissions Certified and tested according to WS-22 standards.

83 and H83 Series Design

Trunnion-style 83 and H83 series ball valves provide durable service in both low- and high-pressure applications. They feature a compact, maximum-flow design with low operating torque across a wide temperature range. These valves are engineered for longevity and can be ordered with ECE R110-type approval for specific gas applications.

Specifications

Specification	Detail
Body Material	316 Stainless Steel
Flow Pattern	2-Way, Shutoff Straight
Max Cv	1.3
Orifice	0.187 in / 4.7 mm
Pressure Rating	6000 PSIG @ 100°F / 413 BAR @ 37°C
Seat Material	PCTFE
Handle Style	Black Phenolic Handle
Cleaning	Standard Cleaning and Packaging (SC-10)
Testing	Tested according to WS-22

System Safety and Selection

When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.

Do not mix or interchange Swagelok products or components with those of other manufacturers, as they are not governed by the same industrial design standards.
