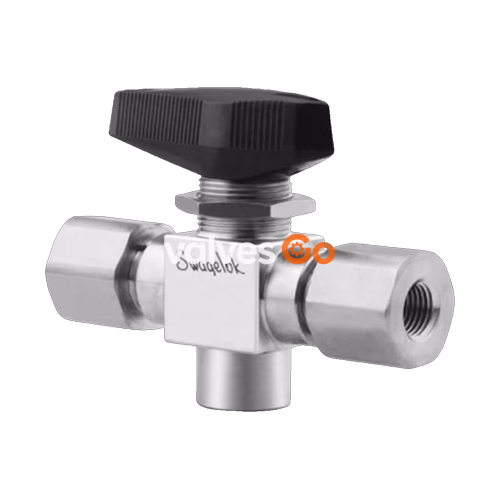

Swagelok SS-H83XPF4 3-piece high-pressure 3-way switching ball valve. Built for durability, the trunnion-style 83 and H83 series ball valves are ideal for low- and high-pressure systems. Their streamlined design supports optimal flow, minimal torque requirements, and wide temperature tolerance. These valves can be specified with ECE R110- type certification.
Specifications
| Attribute | Value |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Female NPT |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Female NPT |
| Connection 3 Size | 1/4 in. |
| Connection 3 Type | Female NPT |
| CV Maximum | 0.75 |
| Flow Pattern | 3-Way, Switching |
| Handle Color | Black |
| Handle Style | Phenolic Handle |
| Orifice | 0.187 in /4.7 mm |
| Room Temperature Pressure Rating | 10000 PSIG @ 100°F /689 BAR @ 37℃ |
| Seat Material | PEEK |
| Service Class | High Pressure Service |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eclass (6.0) | 37010401 |
| eclass (6.1) | 37010401 |
| eClass (10.1) | 37010401 |
| UNSPSC (4.03) | 40141607 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (17.1001) | 40183108 |
