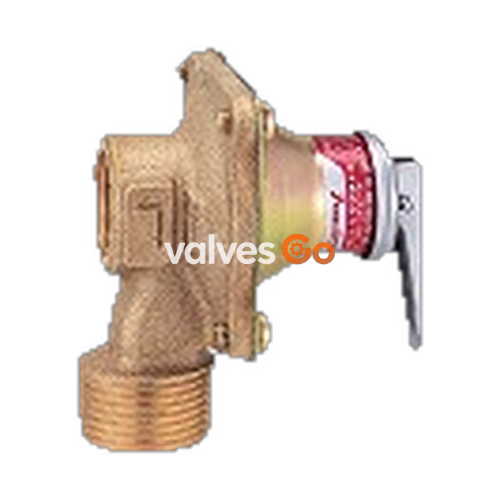

Yoshitake AL-52F-95 home boiler relief valve is installed in the plumbing system of heat exchangers, which are used for small hot water boilers operating at pressures less than 100 kPa or 200 kPa. This valve automatically discharges water to protect machinery when pressure abnormally increases due to water expansion and system trouble.

Features

1. Large diaphragm at the pressure receiving section enables to blow out large capacity at first operation. It also makes the commence-to-blow pressure and reseating pressure stable.
2. The valve is sanitary, since wetted part and mechanical part are separated by diaphragm.
3. Manual lever enables to check the operation and water level. It can also quickly discharge water inside the system.
4. Diaphragm is made of heat and water resistance synthetic rubber.
5. AL-72F can easily installed by cap nut, since the outlet connection is parallel screw.
6. AL-52FS is suitable for electric water heater, since the valve seat is made of stainless steel.

Specifications

Application	Cold and hot water
Commence-to-blow pressure	95+6 kPa
Reseating pressure	87 kPa or more
Max. temperature	100°C
Body	Bronze
Diaphragm	Synthetic rubber
Connection	AL-52F / AL-52FS: JIS R 3/4 x JIS Rc 1/2 screwed AL-72F: JIS R 3/4 x JIS G 1/2 screwed

INFO

• Please use AL-24F for big size hot water heat exchanger.
• Commence-to-blow pressure options available: 60-90kPa, 100-140kPa, 190kPa (AL-52F, AL-72F), 60-90kPa, 100kPa, 120kPa, 140kPa and 190kPa (AL-52FS).

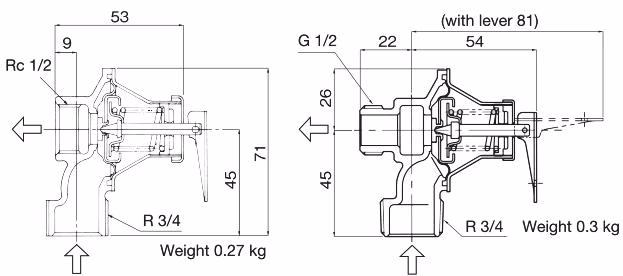

Dimensions and Weights

Note: Part of AL-72F-190 structure is different from above drawing. Dimensions with lever is 86. Part of structure except for 95 kPa are different.

Maximum Pressure Limits

Water pressure reducing valve (kPa)	Relief valve for hot water maker (kPa)	Max. pressure of hot water heat exchanger (kPa)
80	95, 97	100
85	97	100
120	190	200
150	190	200
170	190	200

Attention

Using the bold font valves to simple boiler (100 kPa) is illegal.

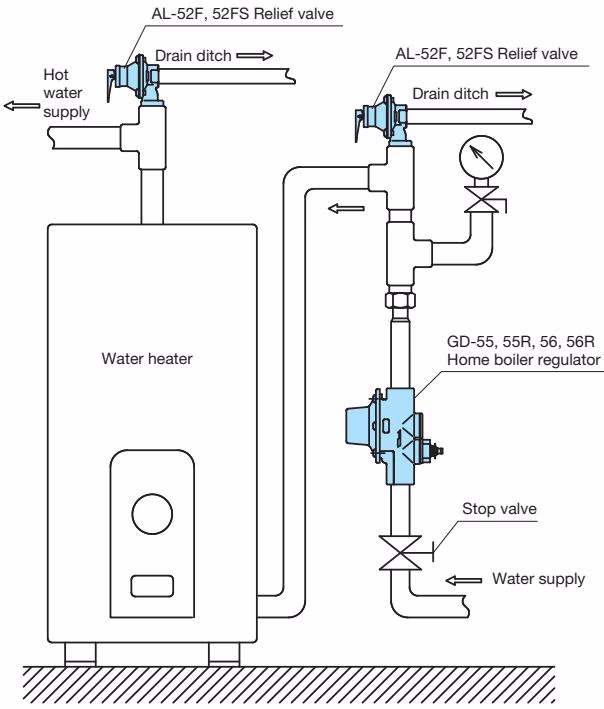

Piping Example

Precautions for Installation and Operation

1. Please be sure to remove foreign substances and scales from inside of the piping before connecting the product to the piping.
2. Install pipe at the relief valve outlet side and conduct to drain ditch. Also install the relief valve so as to check the operation visually.
3. Relief valve will be opened by lifting the lever horizontally. Please check the operation 1-2 times a month.
4. Styrofoam package can be used as heat insulating material to prevent freezing.

Parts List

No.	Part Name	Material
14	Label	Polyester
13	Split Pin	Stainless Steel (SUS)
12	Lever	Stainless Steel (SUS430)
11	Cap	Stainless Steel (SUS430)
10	Adjusting Screw	Brass (C3604)
9	Spring	Piano Wire (SWP)
8	Set Screw	Carbon Steel (S12C)
7	Bonnet	Carbon Steel Sheet (SPC)
6	Spring Plate	Carbon Steel Sheet (SPC)
