Armstrong AD5000 Intelligent Monitoring is a wireless technology designed to monitor acoustic patterns associated with leaking gases and high-pressure fluids. The AIM™ AD5000 is the ideal solution to identify leaking isolation or safety relief valves. Identifying the source quickly can reduce the use of flares to burn off product and the costly fines that may be associated with it. Instant notification helps to minimize material and production loss. Ultimately, the AD5000 can help cut down on environmental fines, reduce product recirculation, and improve safety by instantly identifying the leak source.

Using non-intrusive technology combined with WirelessHART, the AIM™ AD5000 is the ideal solution for any temporary or permanent 24/7 acoustic monitoring.

Technical Specifications

Specification	Value
Output	WirelessHART 2.4 GHz
Local Display	Liquid Crystal Display, Viewing Area: 1.34" x 0.55" (34 mm x 14 mm)
Temperature Operating Range	With display: -30°C to 80°C (-22°F to 176°F) Without display: -40°C to 90°C (-40°F to 194°F)
Max Pipe Temperature	315°C (600°F) - Heat sink required
Materials of Construction	Housing: Aluminum Paint: Powder Coat O-ring: Nitrile Stem: 304 SS Antenna: Nylon 6,6 Nameplate: 304 SS
Battery Type	Tadiran Lithium Ion, Model TLH-5920
Weight	2.2 lbs (1 Kg)
Enclosure Rating	IP66

Transmitted Information

Variable	Description
Primary Variable (PV)	Count (0-255)
Secondary Variable (SV)	Current temperature reading (°F or °C)
Third Variable (TV)	Alarm Setting (default 0)
Fourth Variable (QV)	Estimated battery life (Days)

Product Certifications

Agency	Certification Details
Factory Mutual (FM) - US	Intrinsic Safe for Class I/II/III, Division 1, Groups A-G. Zone 0, AEx ia IIC T3.
Factory Mutual (FM) - Canada	Intrinsic Safe for Class I/II/III, Division 1, Groups A-G. Zone 0, Ex ia IIC T3.
ATEX (European)	Intrinsic Safety Ex ia IIC T3.
IECEx	Equipment Protection Level: Ga. Gas/Vapour: EX ia IIC T3.

(Note: Ambient Temperature Range for all certifications is -40°C to 90°C. For use with TADIRAN model TLH-5920 lithium ion battery only.)

Installation Guidelines

WARNING

Explosion Hazard: Do not open when an explosive dust atmosphere is present. Use only Tadiran TLH-5920 batteries. The enclosure contains aluminum and is considered a potential risk of ignition by impact or friction.

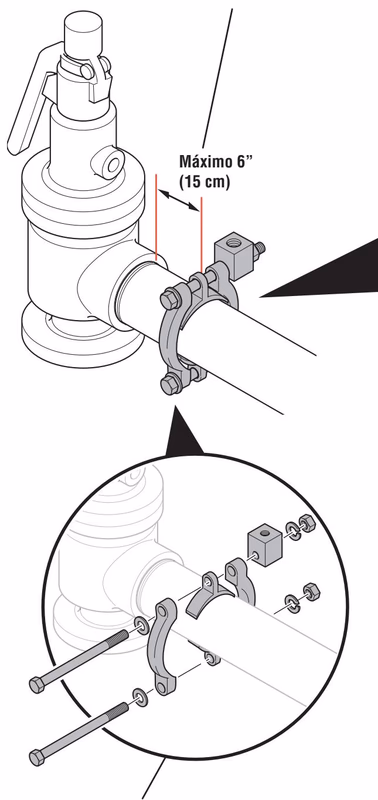

• Waveguide Placement: Place the Waveguide at a distance no greater than 6" (15 cm) from the valve body.

• Mounting: Assemble the bracket on the discharge pipe and tighten the screws to a torque of 25 ft/lb (34 N-m).

• Heat Sink: Install the heat sink if the pipe surface temperature exceeds 200°C (400°F). Do not install on surfaces exceeding 315°C (600°F). Ensure the concave side of the heat sink faces upward.

• Stem Installation: Carefully thread the acoustic node stem into the Waveguide. Tighten to a torque of 20 ft/lb (16 N-m) and tighten the locknut.

Dimensions

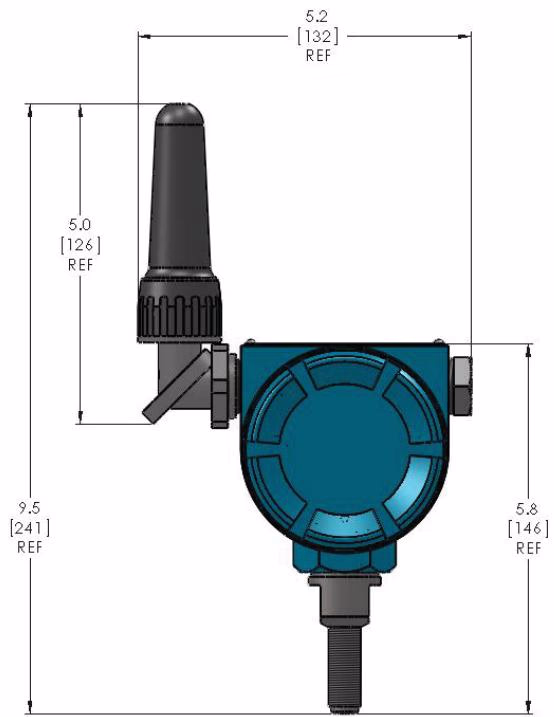

Models without display screen:

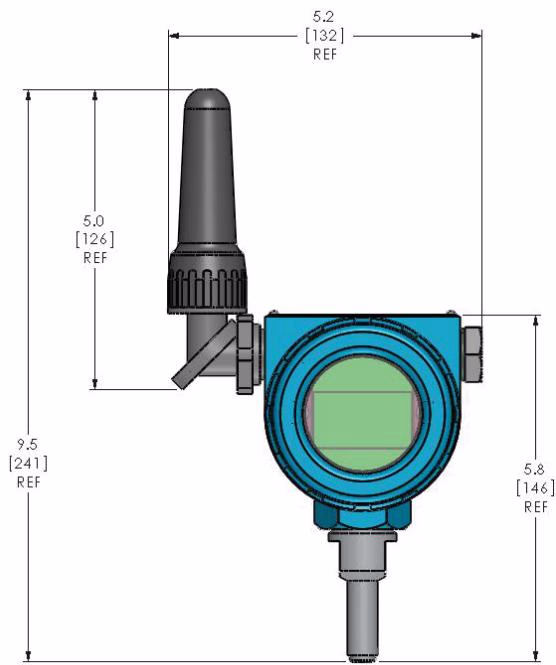

Models with display screen:

Ordering Options

• AD5000: Acoustic Monitor (No Display, Unprogrammed)
• AD5000D: Display
• AD5000P: Programmed
• AD5000DP: Display, Programmed
• Mounting Hardware: WG (Waveguide) available for pipe sizes from 1/2" (15 mm) to 12" (300 mm).
• Heat Sink: HS400

Related AIM™ Devices

The ST5700 Steam Trap Monitor and TD5100 Temperature Monitor are also available in the Armstrong Intelligent Monitoring (AIM™) device family, sharing similar WirelessHART network infrastructure.
