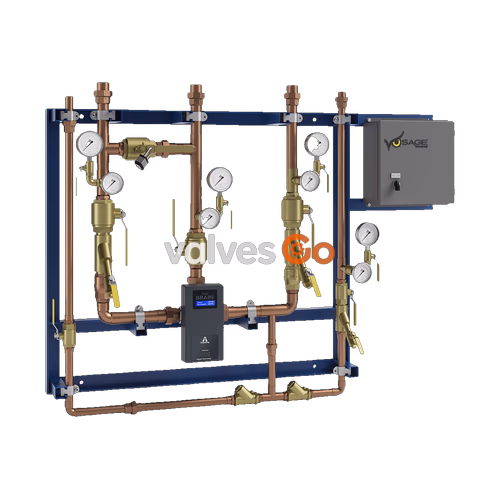

Armstrong The Brain® DMC Series Digital Mixing Center (DMC), equipped with the SAGE® hot water system monitoring and reporting tool, is designed specifically to be the primary water temperature controller in a continuously pumped circulating hot water system. Digital technology provides enhanced water temperature control accuracy which resists zero system demand "Temperature Creep" without the use of a manual throttling valve or a temperature activated pump shut-off device (aquastat).

Connectivity and SAGE® Integration

SAGE® (BS) is available with specific ProtoCessor cards for Building Automation System (BAS) connectivity to systems which operate on Modbus TCP, BACnet™, or LonWorks™ protocols. Mobile connectivity features smart hot water system dashboard monitoring, secure remote programming, multi-location view, temperature and system diagnostic alerts, with unlimited digital documentation and automated report generation. Mobile connectivity may be enabled by a customer activated subscription.

Operational Specifications

• Temperature Control: +/-2°F DRV water temperature control at peak, moderate or zero fixture demand on hot water systems designed for continuous recirculation.
• Temperature Differential: 1°F minimum recirculating water temperature differential.
• Set Point Range: Programmable set point range of 81-158°F (27-70°C) capable of BAS or mobile monitoring and adjustment.
• Thermal Disinfection: Programmable thermal disinfection range of 158-185°F (70-85°C).
• Safety Closure: Automatic safe closure of hot water inlet in response to: inlet supply failure, 110V power failure, or programmable high temperature error.
• Battery Backup: Automatic safe closure of hot water inlet powered by a replaceable lithium battery monitored for low-level alerting.

Technical Specifications

• Power: 100-240V AC
• Construction: Stainless Steel Valve Construction with Polymer Electronics Enclosure.
• Compliance: Lead Free compliant.
• Maximum Inlet HW Supply Temperature: 185°F (85°C).
• Operational Water Pressure: 10-150 psig (0.7-10.3 barg).
• Certifications: Conforms to ASSE 1017, CSA B125.3-11, UL E357437, and CE.

Model Capacities

Model	Water Volume	Hot Water Outlet Connection Size
DMC25BS / DMC25BS Flex	170 lpm (45 gpm)	25 mm (1")
DMC25-25BS	341 lpm (90 gpm)	38 mm (1-1/2")
DMC40BS / DMC40BS Flex	371 lpm (98 gpm)	38 mm (1-1/2")
DMC40-40BS	742 lpm (196 gpm)	63 mm (2-1/2")
DMC50BS / DMC50BS Flex	712 lpm (188 gpm)	51 mm (2")
DMC50-50BS	1423 lpm (376 gpm)	76 mm (3")
DMC80BS / DMC80BS Flex	712 lpm (188 gpm)	76 mm (3")
DMC80-80BS	1423 lpm (376 gpm)	102 mm (4")
DMC80-80-80BS	2135 lpm (564 gpm)	102 mm (5")

TIP

Designs, materials, weights and performance ratings are approximate and subject to change without notice.
