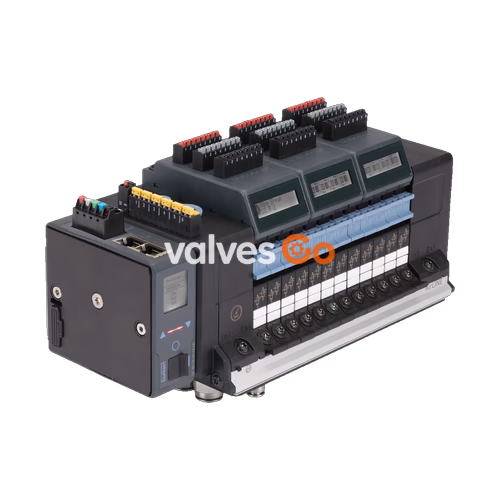

The BURKERT Type 8652 AirLINE valve island has been especially developed for process automation requirements. Diagnostic functions can be visualised on the LC display in clear text and symbols, which simplifies the assignment of messages and saves time during start-up and maintenance. The diagnostic messages are also available at the controller to enable a fast overview of the plant status. The hardware is optimised for installation at the bottom of the control cabinet, and installation on a standard rail is also supported. Key pneumatic functions ensure increased process reliability, such as check valves in the exhaust air ducts that prevent unplanned actuation due to pressure peaks.

General Technical Data

Product properties	Description
Body material	PA (polyamide)
Seal material	NBR and PUR
Width per station	11 mm
Manual override	Latching, spring return (optional: lockable)
Number of valve slots	Max. 24
Maximum number of valve functions	Max. 48
Pneumatic intermediate supply	Optional for the variants with 16, 20 and 24 valve slots
Pressure range	Vacuum to 10 bar
External supply air (auxiliary pilot air)	3 to 10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Flow rate QNn value air with Hot Swap	Flow reduced by approx. 3%
Operating voltage	24 V DC (±10%)
Nominal power of each valve	0.7 W (0.175 W after power reduction)
Nominal current of each valve	29 mA (10 mA after power reduction)
Digital input	Max. 48
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Compressed air quality	ISO 8573-1: 2010, Class 7.4.4
Degree of protection	IP20, IP65 in closed control cabinets
Ambient temperature	-10 °C to +55 °C

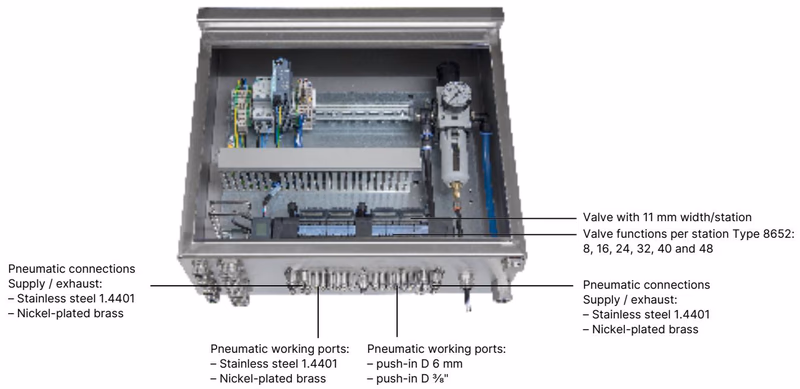

AirLINE Quick

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall. This reduces space requirements and installation effort due to hose connections directly at the bottom of the control cabinet.

Product properties	Description
AirLINE Quick Adapter Plate material	Stainless steel 1.4301 or Anodised aluminium
Pneumatic connection material	Stainless steel 1.4401 or Nickel-plated brass
Valve functions per station	8, 16, 24, 32, 40 and 48
Pneumatic Supply / Exhaust	Push-in D 10 mm, 3/8"
Pneumatic working ports	Push-in D 6 mm, 1/4"
Installation position	Control cabinet wall or Control cabinet floor

Circuit Functions

Circuit function	Description
C (CF C)	3/2-way solenoid valve, servo-controlled, normally closed
C (CF C)	2 × 3/2-way solenoid valve, servo-controlled, normally closed
D (CF D)	2 × 3/2-way solenoid valve, servo-controlled, normally open
H (CF H)	5/2-way solenoid valve, servo-controlled, pressure applied via port (1)
L (CF L)	5/3-way solenoid valve, in middle position all ports locked
M (CF M)	5/3-way solenoid valve, servo-controlled, in middle position ports 2 and 4 ventilated
N (CF N)	5/3-way solenoid valve, in middle position ports 2 and 4 exhausted
Z (CF Z)	5/2-way solenoid valve, impulse variant with 2 coils

Approvals and Conformities

• Explosion protection: Optional as a category 3 device suitable for zone 2/22. ATEX: BVS 20 ATEX E 031 U (II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc). IECEx: IECEx BVS 20.0024 U (Ex ec IIC Gc / Ex tc IIIC Dc).
• North America (USA/Canada): Optional UL Listed (UL 61010-1) and UL Recognized for Hazardous Locations (Class I, Zone 2, AEx ec IIC Gc / Class II, Zone 22, AEx tc IIIC Dc / Class I, Division 2, Group A, B, C, D / Class II, III, Division 2, Group F, G).
• China Compulsory Certification (CCC): Optional for products with Ex approval suitable for import and use for hazardous applications in China.

Dimensions

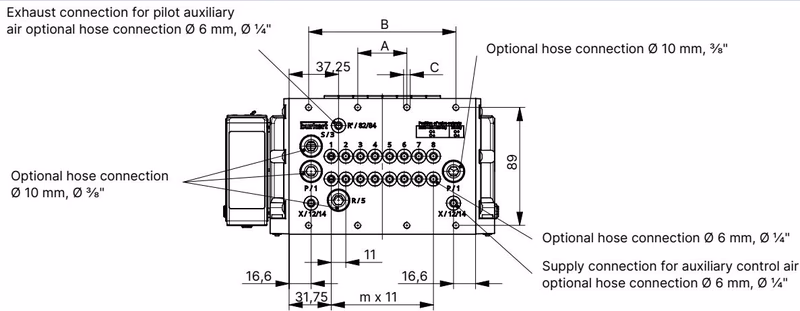

Variant 4, 8, and 12-fold

Variant	A	B	C	m	n
4-fold	66	-	4 x M5	3	1
8-fold	35	111	8 x M5	7	2
12-fold	77	154	10 x M5	11	3

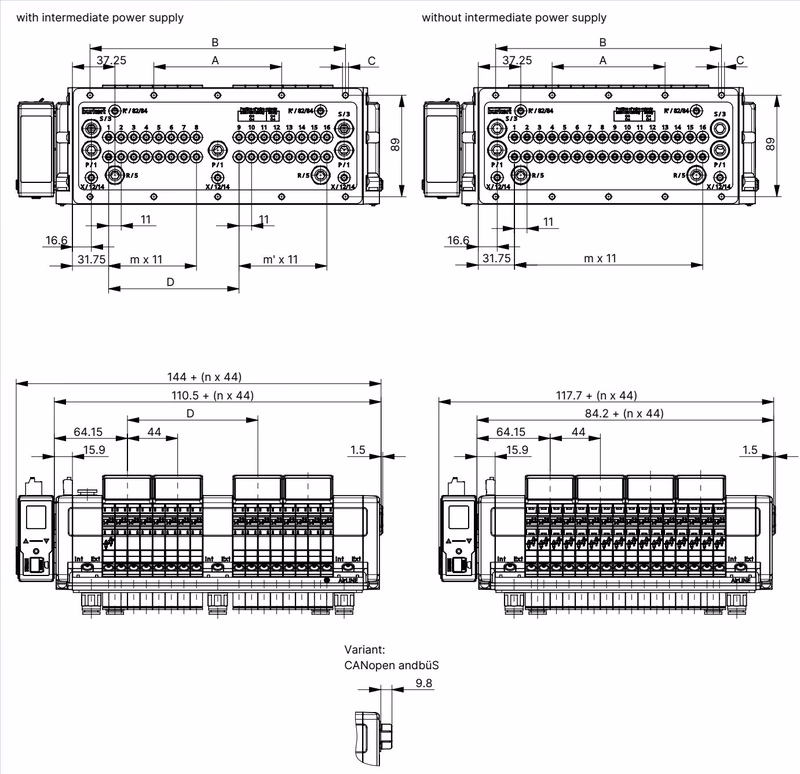

Variant 16, 20, and 24-fold

Variant	A	B	C	D	m	m'	n
16-fold with intermediate supply	112	224	10 x M5	114.3	7	7	4
20-fold with intermediate supply	134	268	10 x M5	158.3	11	7	5
24-fold with intermediate supply	156	312	10 x M5	158.3	11	11	6
16-fold without intermediate supply	99	198	10 x M5	-	15	-	4
20-fold without intermediate supply	121	242	10 x M5	-	19	-	5
24-fold without intermediate supply	143	286	10 x M5	-	23	-	6

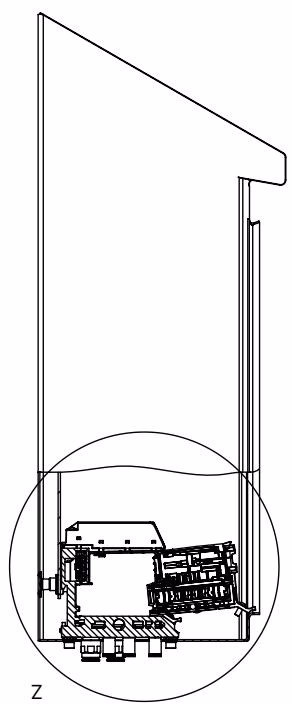

Product Installation

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

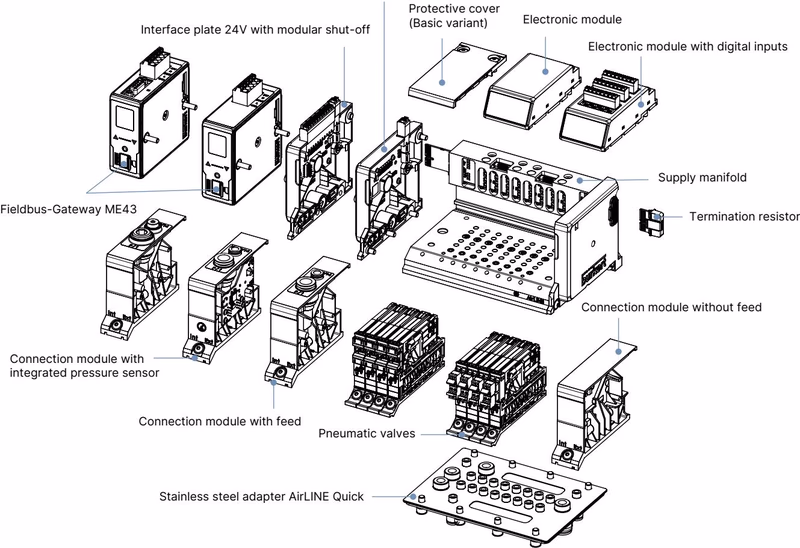

Product Design and Assembly

Electronic Module with Digital Inputs (Optional)

The digital inputs are supplied (24 V) by the electronic module. Current is limited to maximum 30 mA per digital input. Standard 3-wire sensors and 2-wire sensors with voltages between 10 and 30 V as well as mechanical limit switches can be used. The module provides open-circuit detection with 2-wire sensors and short-circuit detection with 3-wire sensors.

Valves Type 6534 for Safety-Related Shut-Off, SIA Variant (Optional)

Type 6534 valves are equipped with additional connection terminals. A valve circuit can therefore be interrupted by an external switch. Manual override is not required for these valve variants. To use the shut-off function, connect the terminal to a potential-free contact (mechanical switch or relay).

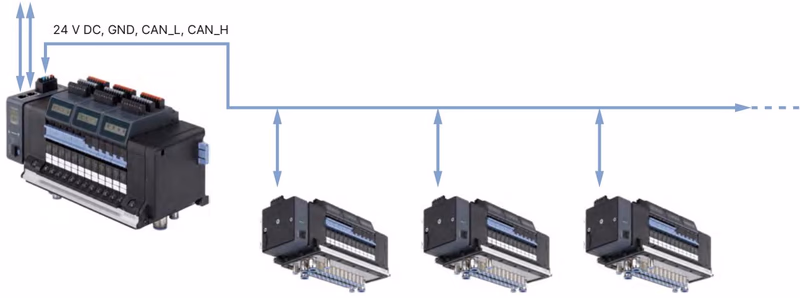

Example Configuration

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.

Explosion Protection Safety Notes

Danger caused by voltage

Before working on the device or system, disconnect the power supply. Secure against reactivation. In a potentially explosive atmosphere, connection terminals for 24 V power supply, SIA, EVS, and digital inputs may only be plugged in or unplugged when de-energized.

Danger of explosion due to electrostatic charge

If there is a sudden discharge from electrostatically charged devices or persons, there is a danger of explosion in the potentially explosive area. Take appropriate measures to ensure that no electrostatic charges can occur in the potentially explosive area.

Hot Swap Restrictions

The use of the hot swap function is prohibited in a potentially explosive atmosphere. If it can be proven and ensured by means of suitable test equipment that there is no explosive atmosphere for a certain period of time, the removal/insertion of valves by means of hot swap is permitted during this period.
