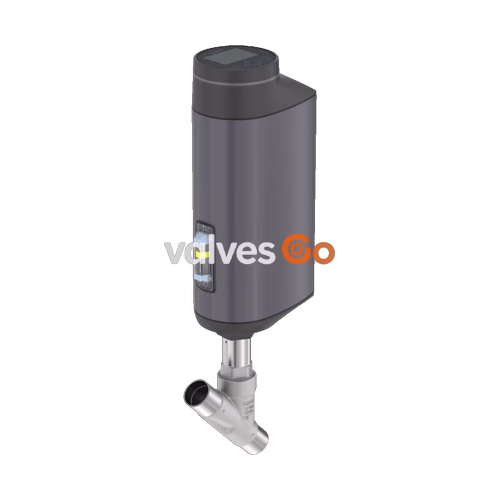

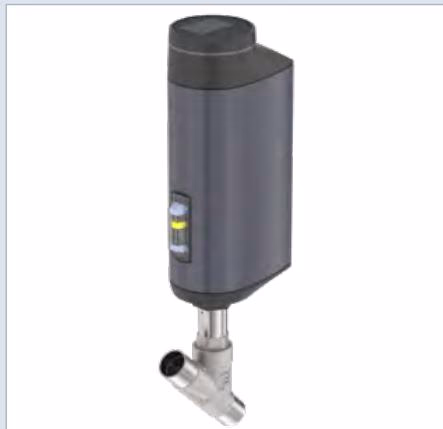

Burkert 20016504 Type 3360 is an electromotive 2-way angle seat control valve designed for control tasks under demanding operating conditions. The electromotive actuator with a ball screw positions the control cone with high precision. It features a positioning speed of up to 6 mm/s that reacts quasi delay-free to process signals. Pressure variations or shocks in the medium are not transferred to the valve position. The actuator and valve are adapted to each other with a closed design and robust surface, ensuring hygienic requirements for fast and residue-free cleaning. The valve provides a degree of protection of IP65 / IP67 and high impact and vibration resistance.

General Technical Data

Product Properties	Specification
Design	Angle seat control valve
Nominal diameter	DN 20 (3/4")
Flow direction	Against closing direction (below seat)
Controller variant	Process controller
Operating pressure	0...25 bar(g)
Nominal pressure	PN 25 (DIN EN 1333), Class 150 (DIN EN 1759)
Kv value (water)	10 m³/h
Seat leakage	Class III, IV and VI (DIN EN 60534 - 4)
Operating voltage	24 V DC ± 10 % (maximum residual ripple 10 %)
Operating current	AG2: maximum 3 A (at maximum load)
Duty cycle	100 %
Operating medium	Steam, neutral gases, water, alcohols, oils, fuels, hydraulic fluids, salt solutions, lyes, organic solvents
Medium temperature	-10 °C...+130 °C
Degree of protection	IP65/IP67 (DIN EN 60529), NEMA 4X

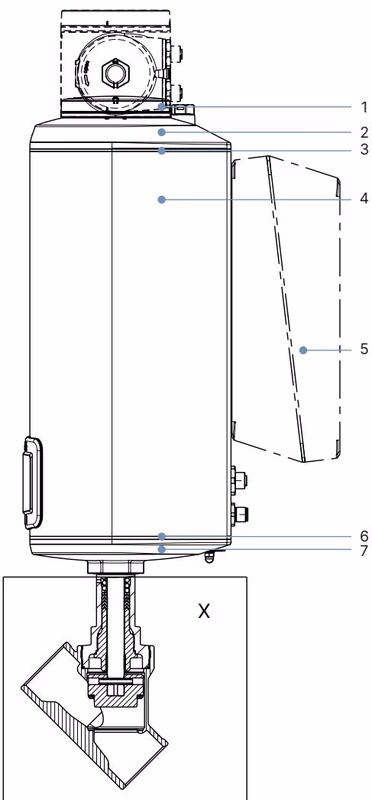

Materials

Actuator AG2

No.	Component	Material
1	Display housing/blind cover/gateway housing	PPS (standard), stainless steel 1.4301 (for ATEX/IECEx)
2	Actuator cover	PPS
3	Seal	EPDM
4	Actuator housing	Powder-coated aluminium
6	Seal	EPDM
7	Actuator base	PPS

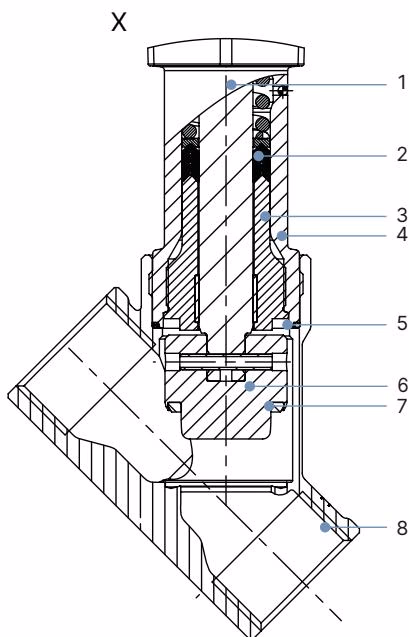

Valve Body

No.	Component	Material
1	Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
2	Spindle seal	PTFE V-seals (filled) with spring compensation
3	Spindle guide	Stainless steel 1.4404 (316L)
4	Packing gland tube	Stainless steel 1.4401 (316)
5	Seal valve body	Graphite or PTFE
6	Control cone	Stainless steel 1.4571
7	Seat seal	PTFE
8	Valve body	Stainless steel CF3M

Dimensions

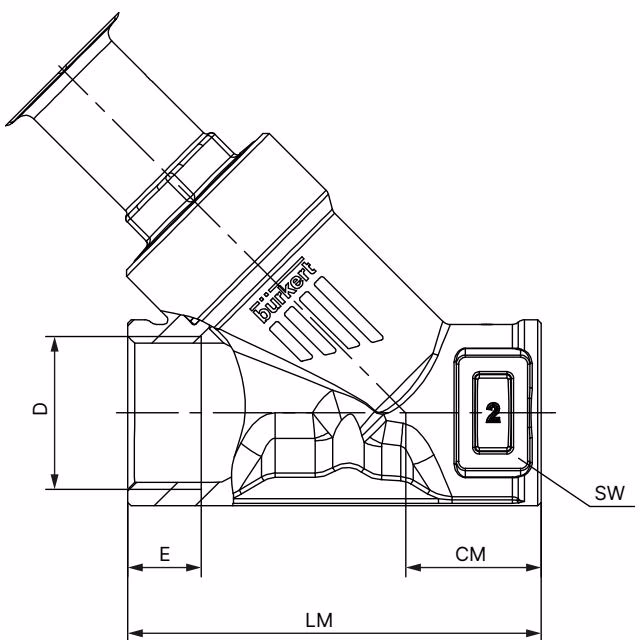

Body with Threaded Connection

DN	NPS	G (DIN ISO 228-1) D	G (DIN ISO 228-1) E	CM	LM	SW
15	1/2	14	13.7	24	65	27
20	3/4	16	14.0	27	75	34
25	1	18	16.8	29.5	90	41
32	1 1/4	16	17.3	36	110	50
40	1 1/2	18	17.3	35	120	55
50	2	24	17.6	45	150	70
65	2 1/2	26	23.7	57	185	85

Note: Dimensions in mm, unless otherwise stated.

Electrical Connection

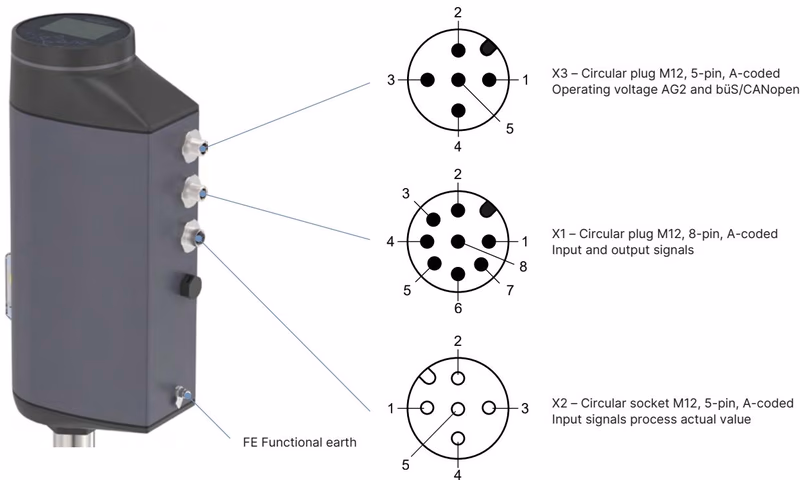

Description of Circular Plug-in Connectors (AG2 Variant)

• X3 – Circular plug M12, 5-pin, A-coded: Operating voltage AG2 and büS/CANopen
• X1 – Circular plug M12, 8-pin, A-coded: Input and output signals
• X2 – Circular socket M12, 5-pin, A-coded: Input signals process actual value

Performance Specifications

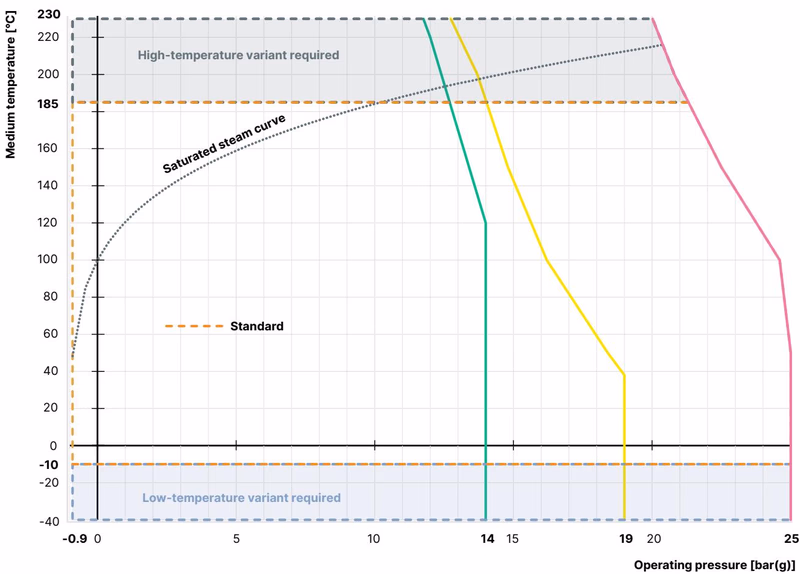

Operating Limits for Medium Temperature and Operating Pressure

In addition to the maximum operating pressures, the application range of Burkert process valves is limited by the nominal pressure in accordance with the relevant standard.

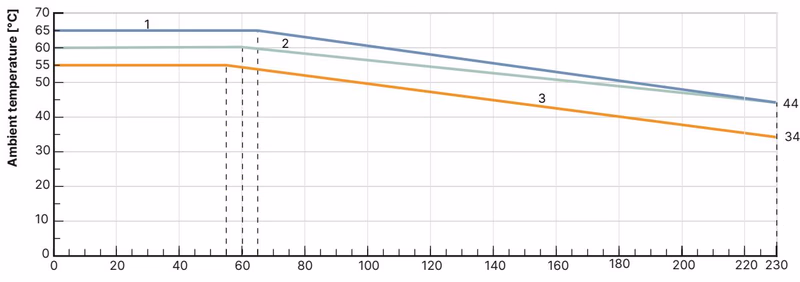

Operating Limits for Ambient and Medium Temperature

The maximum permissible temperature for the environment and the medium are dependent on each other. The maximum allowable temperature curves of different device variants are shown in the temperature chart.

No.	Description
1	Devices without module
2	Devices with display
3	Devices with energy storage SAFEPOS energy-pack or fieldbus gateway, with/without display module

Product Design and Assembly

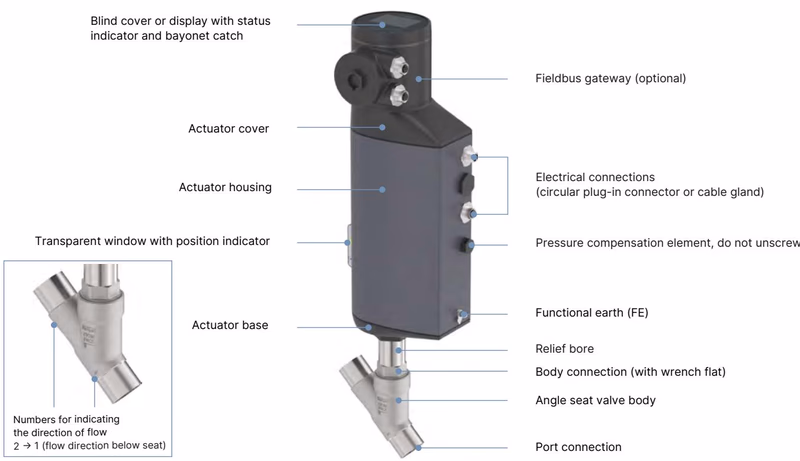

Design of Electromotive Valve Type 3360 AG2

The electromotive linear drive consists of a brushless DC motor, a gear, and a spindle system that transfers the force to the closing element. The integrated control electronics are controlled either by standard signals or via a fieldbus (digital). The electromotive linear actuator is designed to provide optimum efficiency, keeping the valve tight and in position even at the maximum specified medium pressure in a powerless standstill.

WARNING

Risk of injury from high pressure. Before working on the system or device, switch off the pressure and vent or drain lines.

TIP

If the supply voltage is not applied, e.g. during installation or in the event of a power failure, the valve position can be changed using the mechanical manual override. The mechanical manual control may be used in a de-energized state only, otherwise the device may be damaged.
