Bürkert 20060382 (Type 6027) is a direct-acting, powerful 2/2-way plunger valve. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. This specific model features a stainless steel body, EPDM seals, a G 1/4 internal thread, and a 6.00 mm orifice. It is equipped with an energy-saving Kick and Drop coil (24V) and is designed for operating pressures from 0 to 14 bar.

Key Features

• Direct-acting, powerful valve
• Vibration-proof, bolted coil system
• Energy-saving double coil technology with Kick and Drop variant
• Welded stopper and plunger guide tube for enhanced pressure resistance

SKU 20060382 Specifications

Attribute	Value
Circuit function	A - normally closed - inlet port 1 (P/NC)
Port connection	Internal thread G 1/4
Orifice	6.00 mm
Kv value (water)	0.95 m³/h
Pressure range	0 - 14 bar (gas/liquid)
Voltage	24 V (50/60 Hz, AC/DC)
Body material	Stainless steel
Seal material	EPDM
Medium temperature	-30 °C to +120 °C
Environment temperature	-30 °C to +55 °C
Degree of protection	IP65 (with suitable connector)
Coil type	Kick and Drop coil (Energy saving technology included)

Kick and Drop Coil

The Kick and Drop coil features integrated electronics for short-term power increase and reduction in dual coil technology, significantly reducing power consumption during continuous operation.

Circuit Function

Symbol	Description
	Circuit function A (CF A) 2/2-way solenoid valve Direct-acting Normally closed

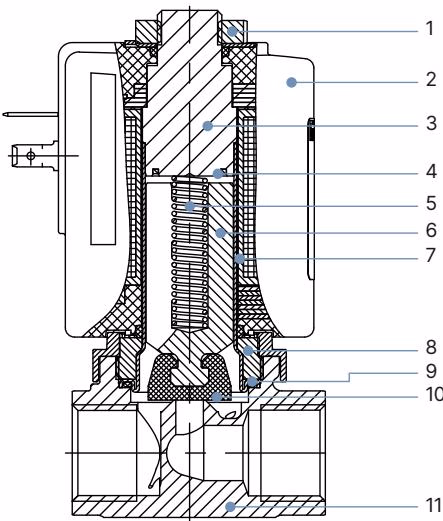

Materials (Standard Variant)

No.	Element	Material
1	Nut	DIN 176 thick-film passivated or stainless steel
2	Coil	Epoxy
3	Stopper	Stainless steel 1.4113/434
4	Shading ring	Copper (brass body) / Silver (stainless steel body)
5	Spring	Stainless steel 1.4310/301
6	Plunger	Stainless steel 1.4113/434
7	Guide tube	Stainless steel 1.4303/305/308
8	Nipple	Brass, stainless steel 1.4305/303
9	Seal	FKM, PEEK (EPDM on request)
10	Seat seal	FKM (EPDM on request)
11	Housing	Brass, stainless steel 1.4404/316L (CF3M)

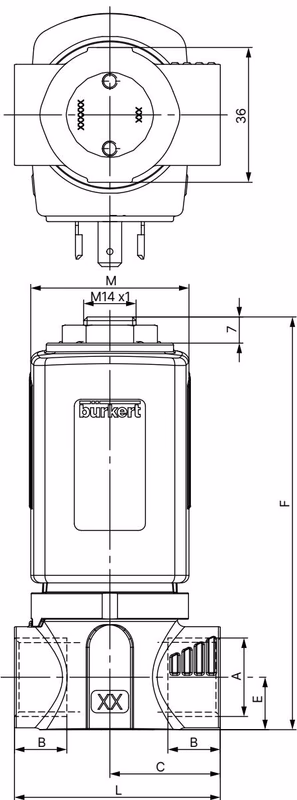

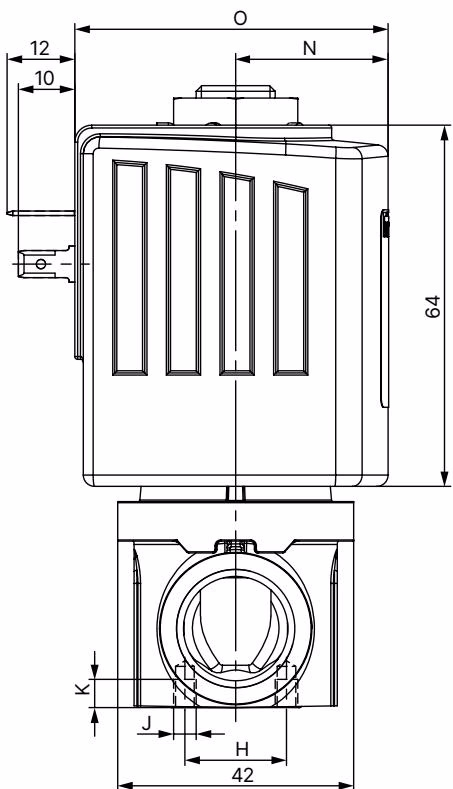

Dimensions (Standard Variant)

Note: Dimensions in mm

Variant	A [mm]	B [mm]	C [mm]	E [mm]	F [mm]	H [mm]	J [mm]	K [mm]	L [mm]
Standard G 1/4	12	27.5	10	105	18	M4	5	55	55

(Table excerpt showing the G 1/4 connection relevant to SKU 20060382)
