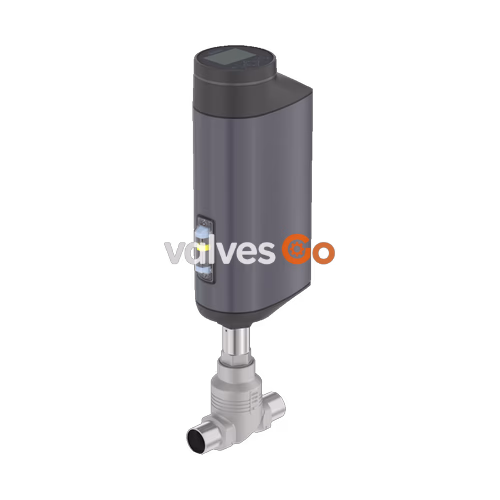

BURKERT 20075182 Type 3361 is an electromotive 2-way globe control valve designed for demanding operating conditions. The electromotive actuator with a ball screw positions the control cone with the highest precision. A unique feature is its high positioning speed of up to 6 mm/s, reacting almost delay-free to process signals. Pressure variations or shocks in the medium are not transferred to the valve position. The flow-optimized valve body can be equipped with up to 5 different valve seats for precise adaptation.

General Technical Data

Feature	Specification
Design	Globe control valve
Nominal diameter	DN 100
Operating pressure	0 to 13.5 bar
Nominal pressure	PN 25 (DIN EN 1333), Class 150 (DIN EN 1759)
Kv value	140 m³/h
Operating voltage	24 V DC ± 10 %
Degree of protection	IP65/IP67 (DIN EN 60529), NEMA 4X

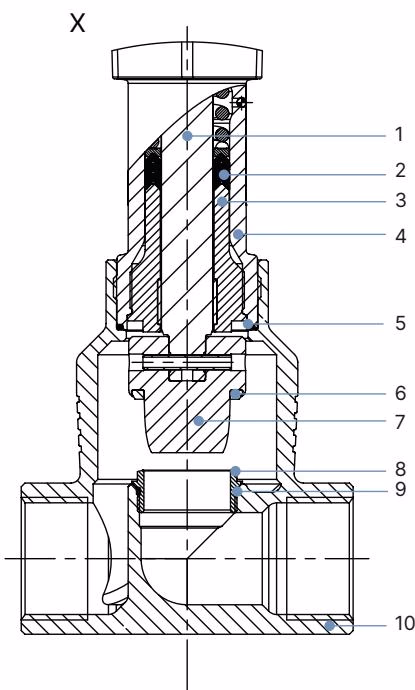

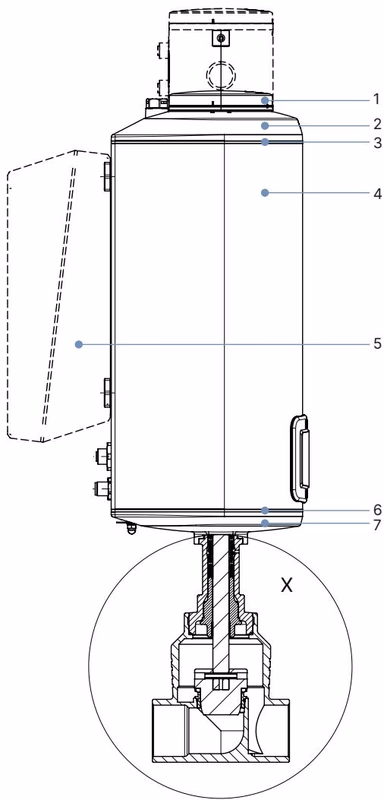

Materials

Dimensions

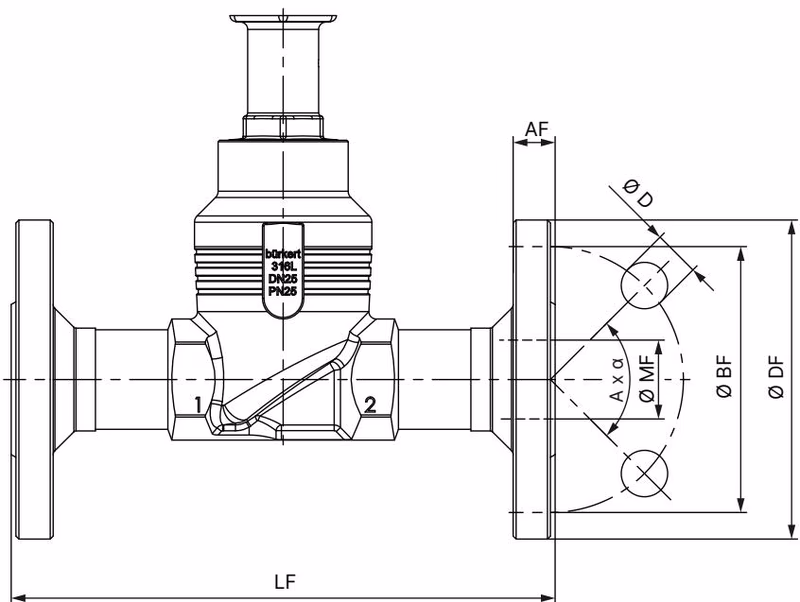

Body with flange connection

Performance Specifications

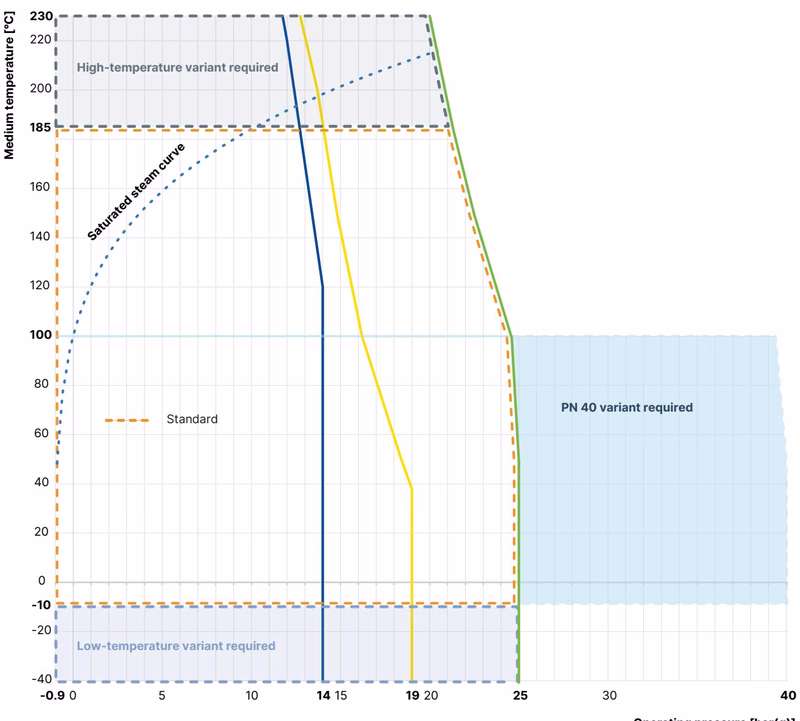

Operating limits for medium temperature and operating pressure In addition to the maximum operating pressures, the application range of Bürkert process valves is limited by the nominal pressure in accordance with the relevant standard.

Product Design and Assembly

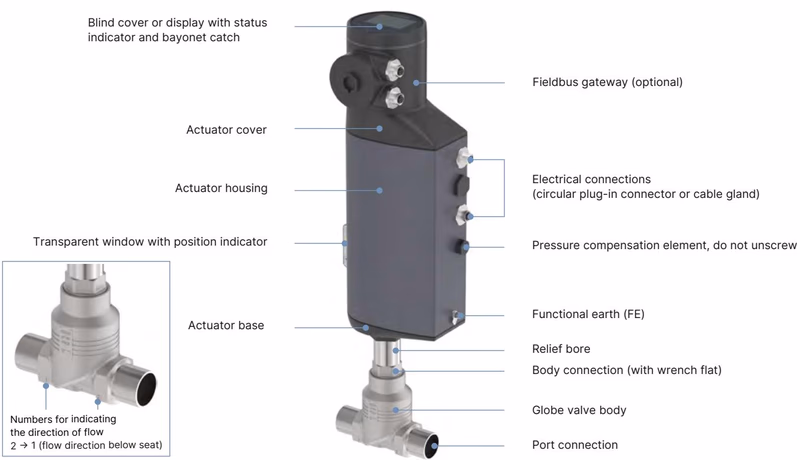

Design of electromotive valve Type 3361 AG2

Design of electromotive valve Type 3361 AG3
