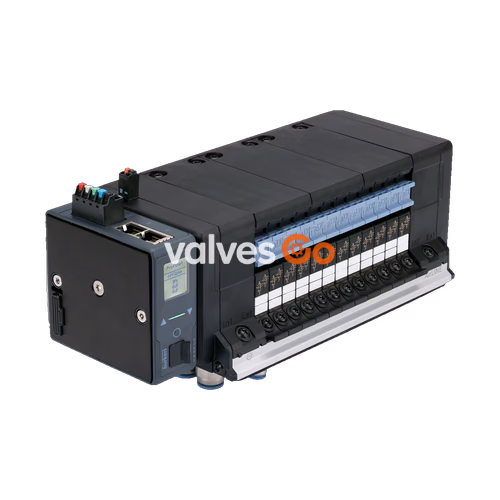

BURKERT 20079726 Type 8652 AirLINE Valve Island

BURKERT 20079726 Type 8652 AirLINE valve island optimized for process automation. Features 16 valve ports, Industrial Ethernet, AirLINE Quick adapter, and IP20 protection.

BURKERT 20079726 Type 8652 AirLINE Valve Island

BURKERT 20079726 Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. The hardware is optimised for installation at the bottom of the control cabinet. Moreover, key pneumatic functions ensure increased process reliability, such as check valves in the exhaust air ducts that prevent unplanned actuation due to pressure peaks.

This specific configuration (SKU 20079726) features a 16-bank setup with an Aluminium AirLINE Quick adapter, Industrial Ethernet communication, and brass pneumatic connections.

Configuration Details (SKU 20079726) ​

FeatureSpecification
Number of valve ports16 PCE
Valve positions (1-16)2x 3/2-way WWC (Circuit function C)
Pressure portD10 (Brass)
Working portD6 (Brass)
AirLINE Quick materialAluminium
Nominal pressure-1 bar to 10 bar
Control pressure3 bar to 10 bar
Temperature (Medium/Environment)-10 °C to 55 °C
ProtocolIndustrial EtherNet (PROFINET IO, EtherNet IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic)
Communication interfaceRJ45
Protection typeIP20

General Technical Data ​

Product propertiesSpecification
Body materialPA (polyamide)
Seal materialNBR and PUR
Width per station11 mm
Manual overrideLatching, spring return (optional: lockable)
Number of valve slotsMax. 24
Maximum number of valve functionsMax. 48
Flow rate $Q_{Nn}$ value air310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Flow rate with Hot SwapFlow reduced by approx. 3%
Operating voltage24 V DC (±10% tolerance)
Nominal power of each valve0.7 W (0.175 W after power reduction)
Nominal current of each valve29 mA (10 mA after power reduction)
Operating mediumOil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Compressed air qualityISO 8573-1: 2010, Class 7.4.4

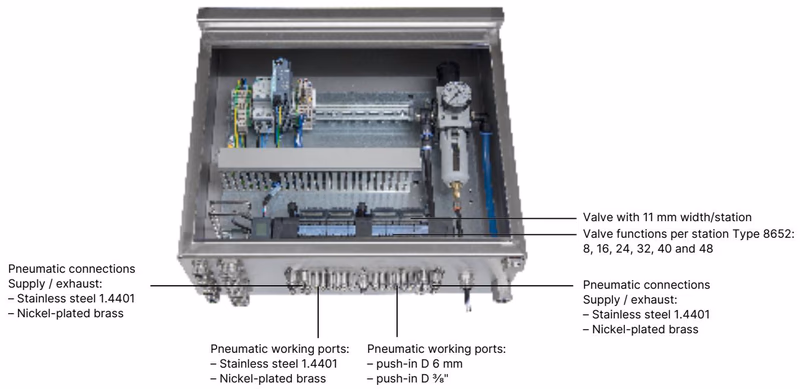

AirLINE Quick ​

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

  • Reduced space requirement in the control cabinet.
  • Makes it possible to use more compact control cabinets.
  • Reduced installation effort due to hose connections directly at the bottom of the control cabinet.

BURKERT 20079726 Type 8652 AirLINE Quick adapter plate

Circuit Functions ​

Circuit functionDescription
C (CF C)3/2-way solenoid valve, servo-controlled, with manual override, normally closed
C (CF C)2 × 3/2-way solenoid valve, servo-controlled, with manual override, normally closed
D (CF D)2 × 3/2-way solenoid valve, servo-controlled, with manual override, normally open
H (CF H)5/2-way solenoid valve, servo-controlled, with manual override. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure.
L (CF L)5/3-way solenoid valve, with manual override. In middle position all ports locked.
M (CF M)5/3-way solenoid valve, servo-controlled, with manual override. In middle position ports 2 and 4 ventilated.
N (CF N)5/3-way solenoid valve, with manual override. In middle position ports 2 and 4 exhausted.
Z (CF Z)5/2-way solenoid valve. Impulse variant with 2 coils and manual override.

Approvals and Conformities ​

Conformity and Standards

In accordance with the Declaration of Conformity, the product is compliant with the EU Directives. The applied standards which are used to demonstrate compliance are listed in the EU-Type Examination Certificate and/or the EU Declaration of Conformity.

  • Explosion protection (Optional): As a category 3 device suitable for zone 2/22. ATEX: II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc. IECEx: Ex ec IIC Gc / Ex tc IIIC Dc.
  • North America (USA/Canada) (Optional): UL Listed according to UL 61010-1 and CAN/CSA-C22.2 No. 61010-1. UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Div 2).
  • China Compulsory Certification (CCC) (Optional): Products with Ex approval are suitable for import and use for hazardous applications in China.

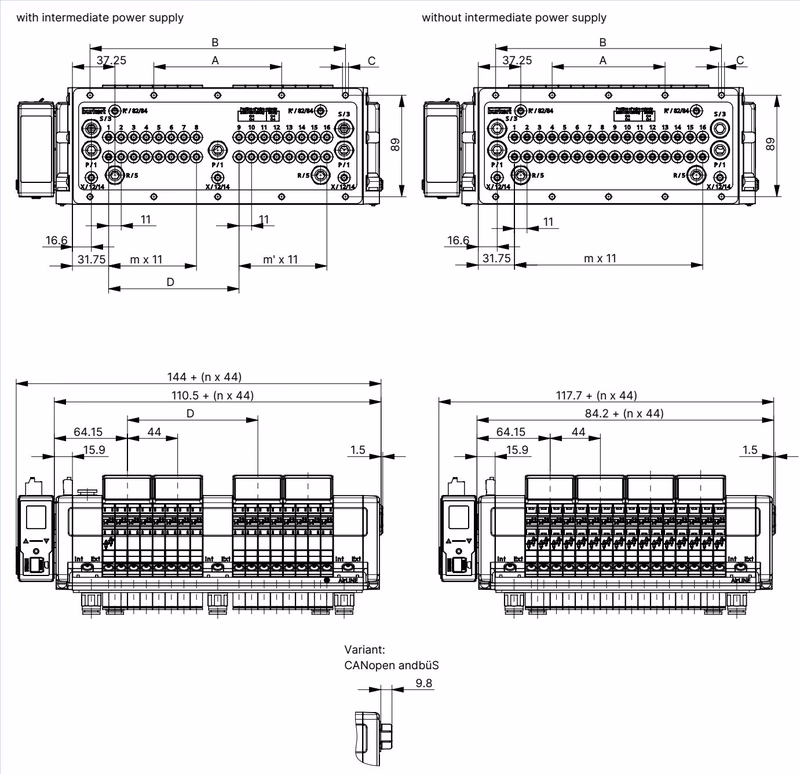

Dimensions (16-fold Variant) ​

BURKERT 20079726 Type 8652 dimensions for 16-fold variant

VariantABCDmm'n
16-fold with intermediate supply11222410 x M5114.3774
16-fold without intermediate supply9919810 x M5-15-4

(Dimensions in mm, unless otherwise stated)

Product Connections ​

Power Supply for Communication and Displays ​

Connect the 5-pin spring-loaded terminal according to the pin assignment (Possible cable cross-section: ≤ 1.5 mm²).

PinColourAssignment
1Red24 V DC
2WhiteCAN_H (büS connection)
3GreenSHIELDING
4BlueCAN_L (büS connection)
5BlackGND

Power Supply for Pneumatic Valves ​

The interface plate has a 2-pin spring-loaded terminal to which the pneumatic valves' power supply is connected.

ClipColourAssignment
1RedAUX 24 V
2BlackGND

Industrial Ethernet Interface ​

Interface X1 and X2 RJ45 for PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic, or PROFINET S2.

PinAssignment
1TX+
2TX-
3RX+
6RX-
(Pins 4, 5, 7, 8 are N.C.)

Product Installation ​

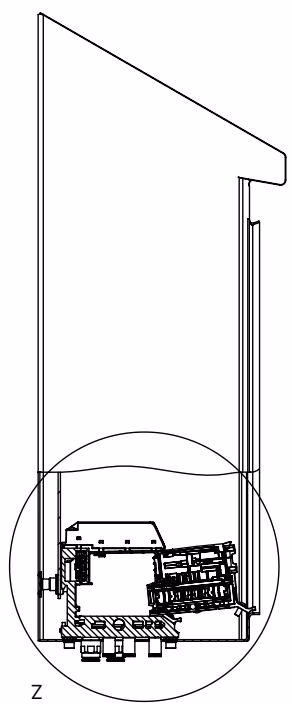

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

BURKERT 20079726 Type 8652 installation clearance in control cabinet

Safety Instructions for Hazardous Locations ​

Danger from Electrical Voltage

  • Before working on the device or system, disconnect the power supply and secure against reactivation.
  • In an existing explosive atmosphere, the connection terminals for 24 V supply, SIA, EVS, and digital inputs may only be plugged in or unplugged when de-energized.
  • The use of the Hot Swap function is prohibited in an existing explosive atmosphere unless it is ensured by suitable testing equipment that no explosive atmosphere is present during the procedure.

Electrostatic Charge Hazard

  • Sudden discharge of electrostatically charged devices or persons can cause an explosion in hazardous areas.
  • Take appropriate measures to prevent electrostatic charging in the hazardous area.
  • Clean the device surface only by wiping it gently with a damp or antistatic cloth.
