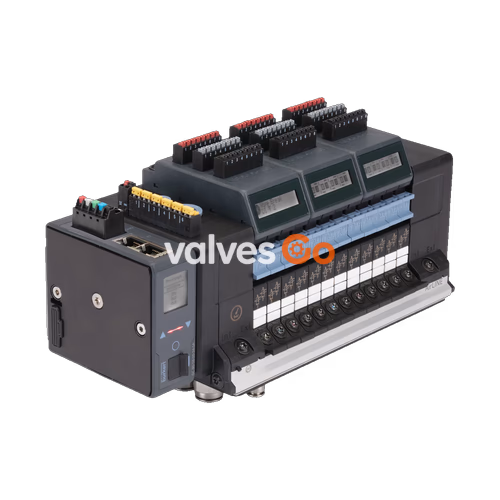

BURKERT Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller, enabling a fast overview of the plant status. The hardware is optimised for installation at the bottom of the control cabinet, though installation on a standard rail is also possible. Key pneumatic functions ensure increased process reliability, such as check valves in the exhaust air ducts that prevent unplanned actuation due to pressure peaks.

• Safety-related shut-off of valves possible
• Higher plant availability with PROFINET S2 (system redundancy)
• Process reliability through pneumatic functions
• Optimised for installation at the bottom of the control cabinet
• EX-variants: ATEX / IECEx Zone 2, CCC, cURus HazLoc CL I, II, III Div 2

General Technical Data

Product properties	Description
Material	Body: PA (polyamide) Seal: NBR and PUR
Width per station	11 mm
Manual override	Latching, spring return (optional: lockable)
Number of valve slots	Max. 24
Maximum number of valve functions	Max. 48
Pneumatic intermediate supply	Optional for the variants with 16, 20 and 24 valve slots
Pressure range	Vac...10 bar
External supply air	3...10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Operating voltage	24 V DC (±10%)
Nominal power of each valve	0.7 W (0.175 W after power reduction)
Nominal current of each valve	29 mA (10 mA after power reduction)
Digital input	Max. 48
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Degree of protection	IP20, IP65 in closed control cabinets
Ambient temperature	-10 °C...+55 °C

AirLINE Quick

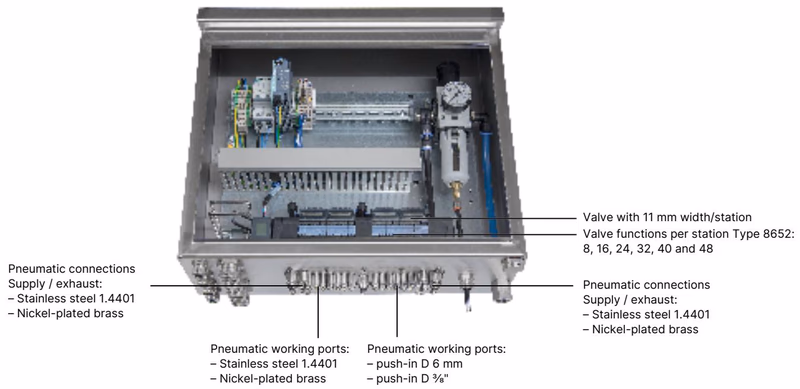

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

• Reduced space requirement in the control cabinet
• Makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Product properties	Description
AirLINE Quick Adapter Plate	Stainless steel 1.4301 / Anodised aluminium
Pneumatic connection	Stainless steel 1.4401 / Nickel-plated brass
Valve functions per station	8, 16, 24, 32, 40 and 48
Pneumatic Supply / Exhaust	Push-in D 10 mm, 3/8"
Pneumatic working ports	Push-in D 6 mm, 1/4"

Circuit Functions

Circuit function	Description
C (CF C)	3/2-way solenoid valve, Servo-controlled, with manual override, Normally closed
C (CF C)	2 × 3/2-way solenoid valve, Servo-controlled, with manual override, Normally closed
D (CF D)	2 × 3/2-way solenoid valve, Servo-controlled, with manual override, Normally open
H (CF H)	5/2-way solenoid valve, Servo-controlled, with manual override. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure.
L (CF L)	5/3-way solenoid valve, With manual override, In middle position all ports locked
M (CF M)	5/3-way solenoid valve, Servo-controlled, with manual override, In middle position ports 2 and 4 ventilated
N (CF N)	5/3-way solenoid valve, With manual override, In middle position ports 2 and 4 exhausted
Z (CF Z)	5/2-way solenoid valve, Impulse variant with 2 coils and manual override. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure.

Approvals and Conformities

In accordance with the Declaration of Conformity, the product is compliant with the EU Directives. Type Rating (NEMA 250): Type 4X in closed enclosures (8652 with stainless steel variant).

• Explosion protection: Optional. As a category 3 device suitable for zone 2/22. ATEX: II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc. IECEx: Ex ec IIC Gc / Ex tc IIIC Dc.
• North America (USA/Canada): Optional UL Listed (UL 61010-1) and UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Division 2).
• China Compulsory Certification (CCC): Optional. Products with Ex approval are suitable for import and use for hazardous applications in China.

Dimensions

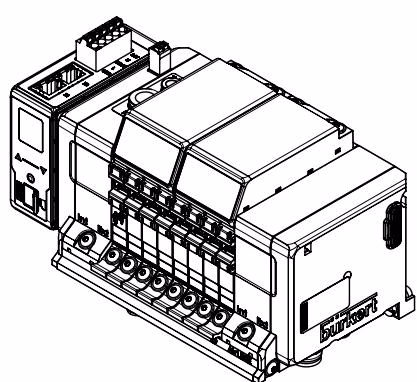

Variant 4-, 8- and 12-fold

Variant	A	B	C	m	n
4-fold	66	-	4 x M5	3	1
8-fold	35	111	8 x M5	7	2
12-fold	77	154	10 x M5	11	3

Product Connections

Power supply for communication and displays

Connect 5-pin spring-loaded terminal according to the pin assignment. Possible cable cross-section: ≤ 1.5 mm².

Pin	Colour	Assignment
1	Red	24 V DC
2	White	CAN_H (büS connection)
3	Green	SHIELDING
4	Blue	CAN_L (büS connection)
5	Black	GND

Power supply for pneumatic valves

The interface plate has a 2-pin spring-loaded terminal to which the pneumatic valves’ power supply is connected.

Clip	Colour	Assignment
1	Red	AUX 24 V
2	Black	GND

Product Installation

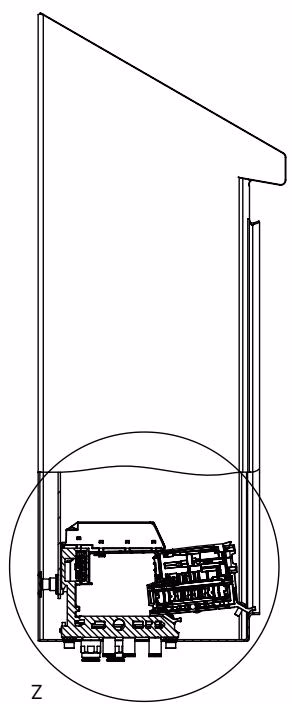

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

Product Design and Assembly

Electronic module with digital inputs (optional)

The digital inputs are supplied (24 V) by the electronic module. Current is limited to maximum 30 mA per digital input. Standard 3-wire sensors and 2-wire sensors with voltages between 10…30 V as well as mechanical limit switches can be used.

INFO

Connect the digital input indicator according to the pin assignment on the electronic module. Maximum cable length: < 30 m.

Valves Type 6534 for safety-related shut-off, SIA variant (optional)

Type 6534 valves are equipped with additional connection terminals. A valve circuit can therefore be interrupted by an external switch. Manual override is not required for these valve variants. To use the shut-off function, connect the terminal to a potential-free contact (mechanical switch or relay).

WARNING

Safety in potentially explosive areas:

• Before working on the device or system, switch off the power supply and secure against reactivation.
• In an existing explosive atmosphere, connection terminals for 24 V supply, SIA, EVS, and digital inputs may only be plugged in or unplugged when de-energized.
• The use of the Hot Swap function in an existing explosive atmosphere is prohibited unless it is proven that no explosive atmosphere is present during the procedure.
