BURKERT Type 6027 (SKU 20089308) is a direct-acting 2/2-way plunger valve with an orifice diameter of up to DN 13. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. The coils are moulded with chemically resistant epoxy. To reduce power consumption in operation, this model features a Kick and Drop electronics assembly utilizing double coil technology. In combination with a plug in accordance with DIN EN 175301-803 Form A, the valve satisfies protection class IP65.

General Technical Data

Product properties
Material
Seal	EPDM (Ethylene-propylene-diene rubber)
Body	Stainless steel 1.4404/316L
Coil	Epoxy
Performance data
Duty cycle	100% continuous operation
Electrical data
Operating voltage	24 V DC/AC (50/60 Hz)
Voltage tolerance	±10%
Medium data
Medium temperature	-30 °C to +120 °C
Product connections
Port connection	Internal thread G 1/2

Circuit Functions

Circuit function A (CF A): 2/2-way solenoid valve, direct-acting, normally closed.

Approvals and Conformities

INFO

The product is compliant with EU Directives and features specific approvals for hazardous locations and drinking water applications.

• Explosion Protection: ATEX and IECEx approved (Ex mb IIC T4 Gb, Ex mb IIIC T130°C Db).
• Drinking Water: Suitable for use in drinking water applications. The materials comply with the assessment principles (UBA) for materials in contact with drinking water.

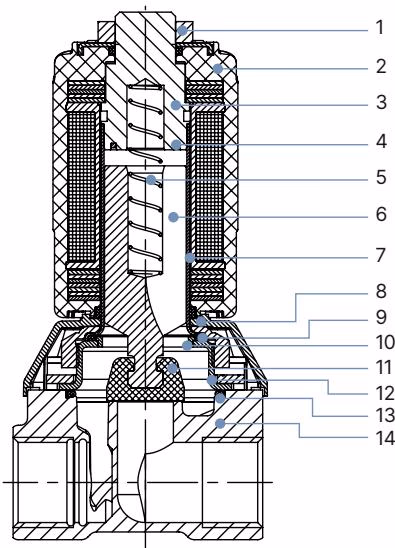

Materials (Variant DN 13)

No.	Element	Material
1	Nut	DIN 176 thick-film passivated or stainless steel
2	Coil	Epoxy
3	Stopper	Stainless steel 1.4113/434
4	Shading ring	Silver (stainless steel body)
5	Spring	Stainless steel 1.4310/301
6	Core	Stainless steel 1.4113/434
7	Guide tube	Stainless steel 1.4303/305/308
8	Hood	PA6
9	Seal	EPDM
10	Support ring	PPS Fortron
11	Core seal	EPDM
12	Cover	Stainless steel 1.4301/304
13	Seal	EPDM
14	Housing	Stainless steel 1.4408/316

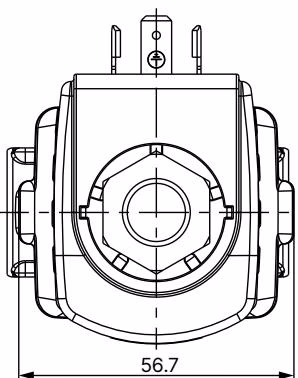

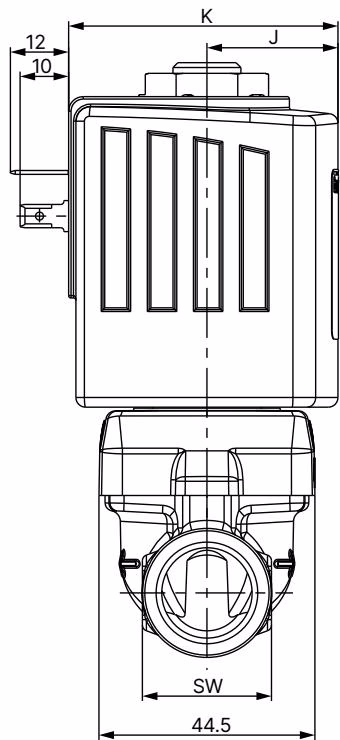

Dimensions (Variant DN 13)

::: note Dimensions in mm. :::

Safety Instructions

DANGER

Risk of injury from high pressure in the system Before loosening lines or valves, switch off the pressure and vent the lines.

Risk of injury from electric shock Before working on or inside the device or the system, switch off the power supply and secure against reactivation. Observe the applicable accident prevention and safety regulations for electrical devices.
