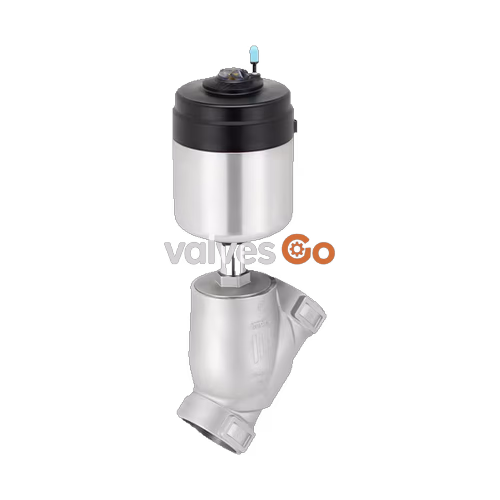

Burkert 20106730 (Type 2100) is a pneumatically operated 2/2-way angle seat valve specially optimized for decentralized process automation. It fulfills tough criteria in process environments, allowing easy integration of automation units in all expansion stages, from electrical/optical position feedback to pneumatic control and integrated fieldbus interfaces. Maximum service life and tightness are achieved by the proven self-adjusting V-seal packing gland. The highly integrated system of valve and automation unit is characterized by its compact and smooth design, integrated pilot air ducts, protection classes IP65/67, NEMA Type 4X, and high resistance to chemicals.

Key Features:

• High flow rates and long service life
• Easy integration of automation units with ELEMENT
• Flow-optimized stainless steel valve body with sleeve, clamp, or weld connection
• Suitable for steam, water, neutral gases, alcohols, oils, fuels, hydraulic fluids, salt solutions, alkalis, and organic solvents

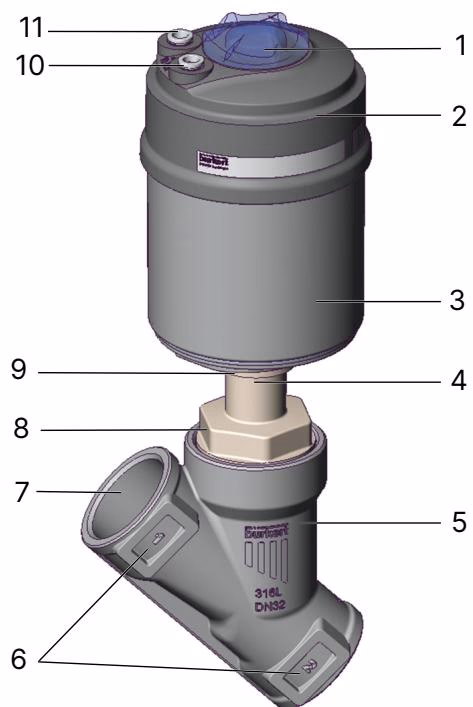

Product Overview

1. Transparent cap with position
2. Actuator cover
3. Actuator housing
4. Relief bore
5. Valve body
6. Flow direction marking
7. Port connection
8. Body connection
9. Actuator connection
10. Pilot air port 1
11. Pilot air port 2

General Technical Data

Property	Value
Design	Angle seat valve
Nominal diameter	DN 10...DN 80, NPS 3/8...NPS 3
Safety setting	Normally closed (control function A), normally open (control function B)
Flow direction	Flow to open (below seat), flow to close (above seat)
Operating pressure	0 bar(g)...25 bar(g), vacuum variants...-0.9 bar(g) (option)
Nominal pressure	PN 25 (DIN EN 1333), Class 150 (DIN EN 1759)
Pilot pressure	2.5 bar(g)...10 bar(g)
Seat leakage	Leakage rate A (DIN EN 12266-1), seat seal PTFE and PEEK, test medium air
Medium temperature	-40 °C...+230 °C
Ambient temperature	-10 °C...+100 °C
Degree of protection	IP65/67

Control Functions and Flow Direction

WARNING: Risk of damage due to bursting pipes

Risk of damage due to bursting pipes and bursting equipment when the flow is above the seat. In the case of liquid mediums, water hammer can occur causing pipes and the device to burst. Do not use valves with flow above the seat for liquid mediums.

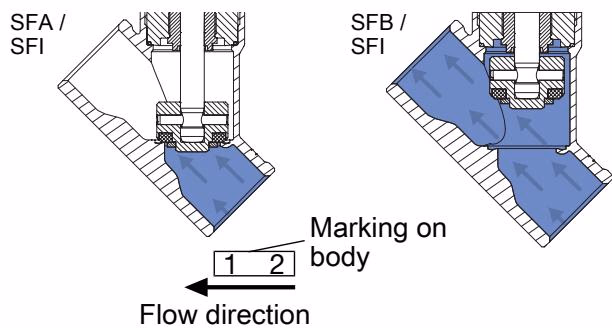

Flow direction below the seat (for liquids, steam, and gases) As the medium is present under the swivel plate, the operating pressure contributes to the opening of the valve.

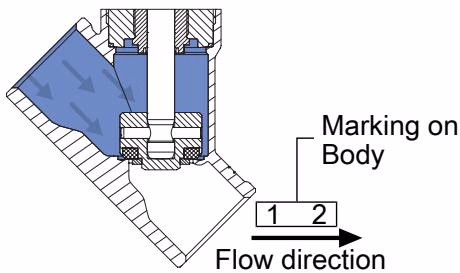

Flow direction above the seat (for steam and gases) As the medium is present above the swivel plate, the operating pressure contributes to the closing of the valve. The operating pressure also supports the sealing of the valve seat.

Materials

Element	Material
Actuator cover	PPS
Actuator casing	Stainless steel 1.4561 (316Ti)
Piston seal	FKM
Spring	Stainless steel 1.4310
Packing gland	PTFE V-Rings (filled), with spring compensation
Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
Spindle guide	PEEK
Body seal	Graphite, PTFE (Option)
Swivel plate	Stainless steel 1.4401 (316)/1.4404 (316L)
Seat seal	PTFE, PEEK (Option)
Valve body	Stainless steel CF3M

Dimensions

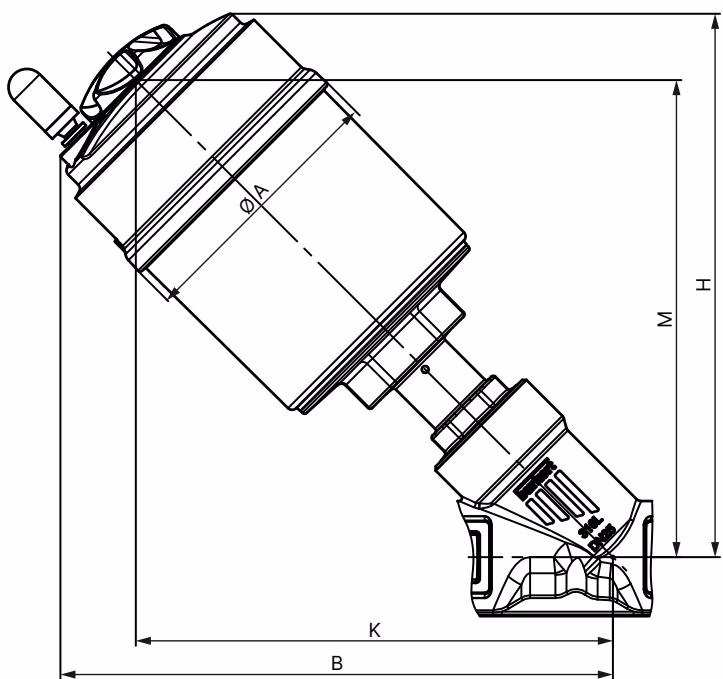

Actuator

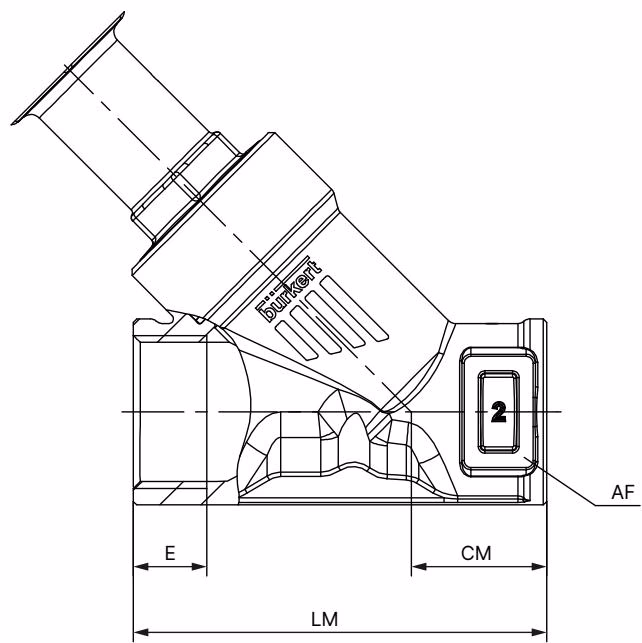

Body with Threaded Connection

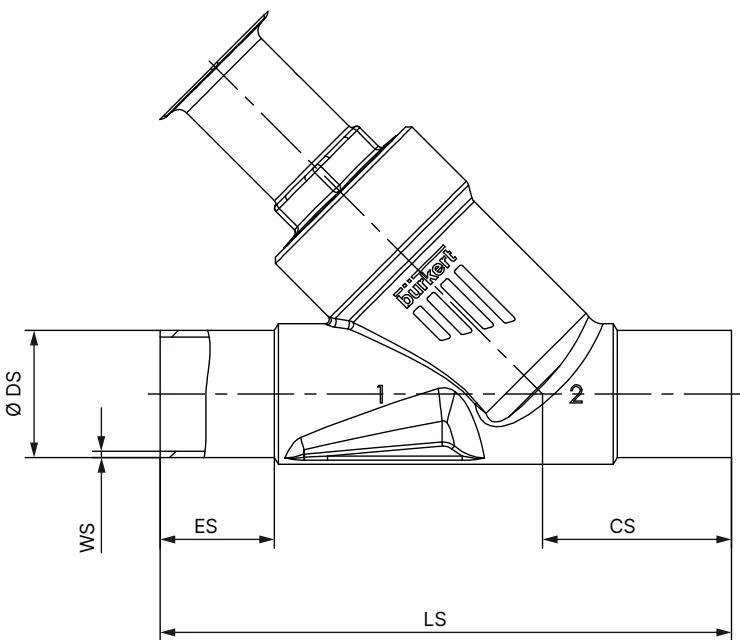

Body with Welded Connection

Approvals and Conformities

• Explosion Protection: EPS 18 ATEX 2 008 X II 2G Ex h IIC T4…T2 Gb / II 2D Ex h IIIC T135 °C…T300 °C Db; IECEx EPS 18.0007X.
• Drinking Water: Suitable for use in drinking water applications (UBA assessment principles).
• Foods and Beverages/Hygiene: FDA (Code of Federal Regulations), USP (United States Pharmacopeial Convention), EC Regulation 1935/2004, China food GB Standards.
• DNV GL Classification: Accepted for installation on all vessels classed by DNV GL.
• Oxygen: Optional suitability for gaseous oxygen.
• Fuel Gases: Complies with Regulation (EU) 2016/426 and DVGW DIN EN 161 / DIN EN 16678.

ATEX Installation Note

For use in potentially explosive atmospheres, observe the information on the device and the additional instructions with Ex labelling. The actuator and valve body must be properly grounded to prevent electrostatic charging hazards.
