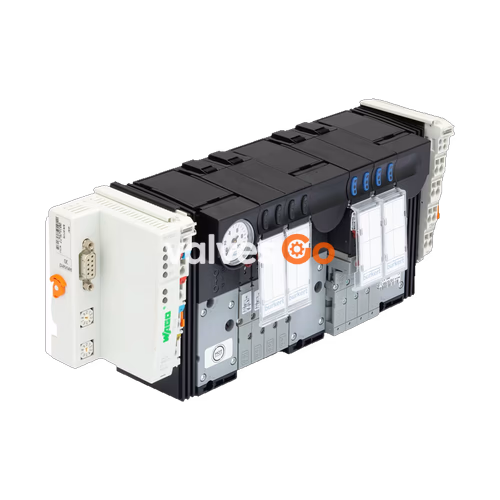

BURKERT Type 8644 AirLINE system represents a universal interface between process and system control. It integrates electric and pneumatic building blocks into an assembly, enabling a modular and flexible structure of fieldbus modules, pilot valves, and I/O modules thanks to simple locking technology on the standard rail. The specific model 20134583 is an 11 mm, 12-bank valve island featuring 12x (2x 3/2) valve functions, designed for seamless decentralized use in industrial environments.

System Features and Advantages

The AirLINE system is designed for decentralized use in industrial environments. Electronics and fluidics can be combined particularly easily and efficiently thanks to the modular design.

• Easy to handle: Function block-oriented structure of the switch box or control cabinet.
• Flow-optimized valve structure: Pressure range of vacuum up to 10 bar, with a flow-rate of approx. 300 l/min for the 11 mm valve width.
• Long service life: Thanks to flipper technology with oiled and unoiled air.
• High modularity: Simple combination of different functions, configuration, and expansion.

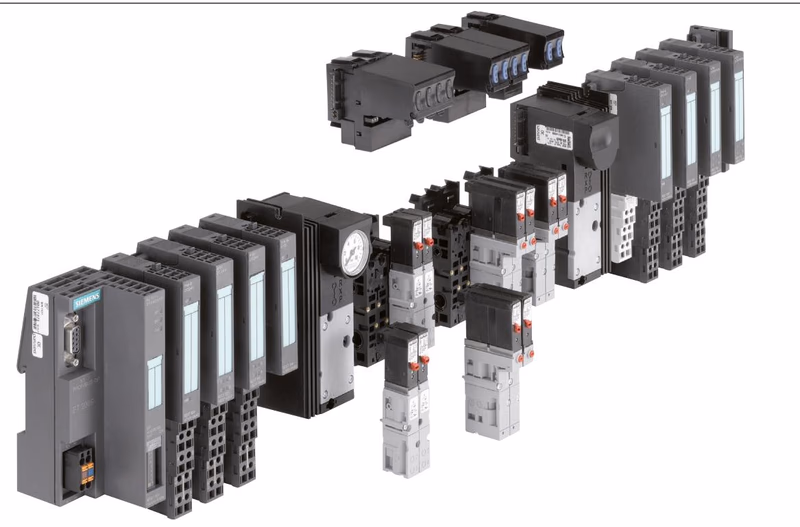

• Integration: Direct connection to the WAGO I/O System 750 or Siemens ET200S.

General Technical Data

Feature	Specification (11 mm Width)
Body Material	PA (polyamide), aluminium (Type 0460)
Seal Material	FKM, NBR and PUR
Width per station	11 mm
Manual override	Standard
Pressure range	Vac...10 bar (Model 20134583: 2.5 - 10 bar)
Flow rate $Q_{Nn}$ value air	200...300 l/min measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure
Operating voltage	24 V DC
Operating medium	Oil-free or lubricated compressed dry air (5 μm filter recommended)
Compressed air quality	ISO 8573 - 1: 2010, Class 7.4.4
Degree of protection	IP20 (IP65 in closed control cabinets)
Ambient temperature	0 °C...+55 °C (when using Type 0460: 0 °C...+50 °C)

WARNING

Danger of explosion! If systems in the explosion-protected area are installed in a control cabinet, the control cabinet must be authorized for use in the explosion-protected area and must be large enough to allow the resulting lost heat to be dissipated in a suitable manner to the outside.

Structure of the Valve Block

The valve block is composed of connection modules/feeds (grouped connections for supply, exhaust air, and control assist air) and valve discs (working connections, various valves).

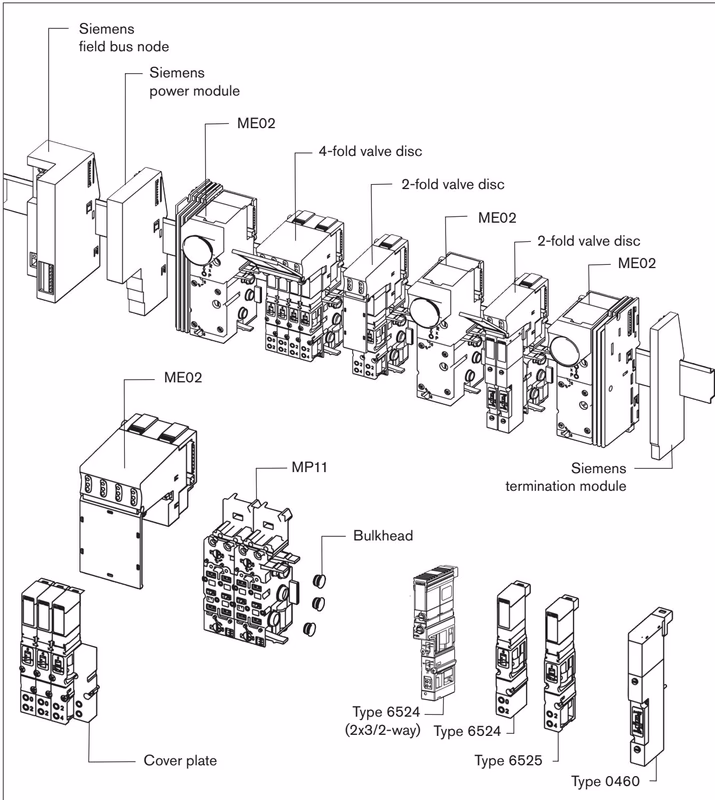

Exploded Drawing (11 mm Add-on Dimension)

Valve discs are modular in design and consist of electronic base modules, pneumatic base modules, and valves. On the electronic base module, the digital outputs are switched where the valves are located. Depending on the operating principle of the valve, these outputs switch the internal P channel to the working connections (outputs) of the pneumatic base modules.

TIP

Prevent a pressure drop! To prevent a pressure drop, design the system pressure supply with the largest possible volume.

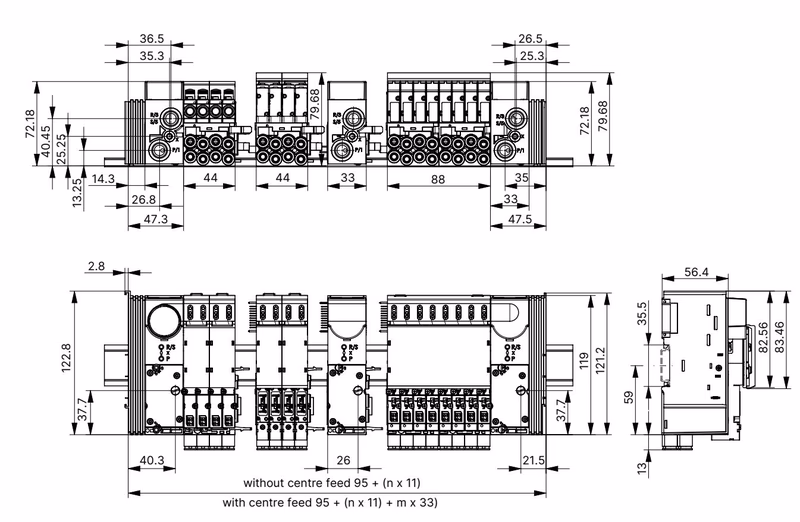

Dimensions

Type 8644 with valves Type 6524/6525 (11 mm)

(Note: Dimensions in mm. n = number of valves)

Solenoid Valves (11 mm)

Type 6524 and Type 6525

The pilot valves Type 6524 (single and double valve) and Type 6525 (single valve) consist of a pilot flipper solenoid valve Type 6144 and a pneumatic seat valve. The circuit function allows switching of high pressures with low power consumption and short switching times.

Type 0460

The solenoid valve Type 0460 consists of a pneumatic valve body fitted with a double coil pilot valve. The principle allows switching of high pressures together with low power consumption and fast switching times. All valves are equipped with manual override as a standard.
