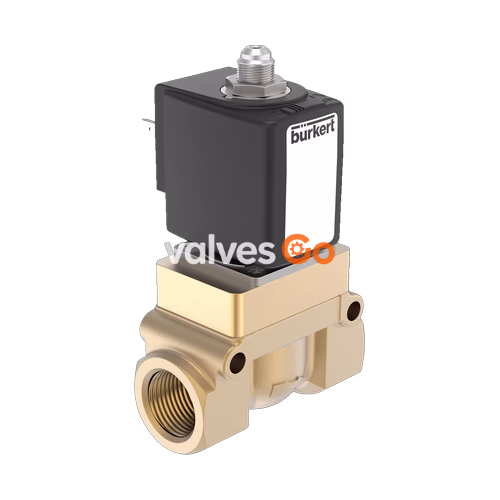

BURKERT 307272 (Type 5404) is a servo-assisted 2/2-way piston valve designed for demanding applications. A minimum differential pressure is required for the valve switching function. The solenoid coils are moulded with high-quality epoxy resin. In combination with a plug to DIN EN 175301-803 Form A, the valves satisfy degree of protection IP65. This specific model is configured as a steam variant (NA07) with a 13 mm orifice, suitable for temperatures up to +160 °C.

General Technical Data

Feature	Value
Seal material	PTFE seat seal and Graphite (steam variant)
Body material	Brass
Coil material	Epoxy resin
Orifice	DN 13
Circuit function	A (Normally closed)
Thermal insulation class	Epoxy resin coil class H
Duty cycle	100% continuous operation
Operating voltage	110 V 50 Hz
Voltage tolerance	±10%
Operating medium	Neutral gases and liquids (e.g., steam)
Medium temperature	-40 °C ... +160 °C
Ambient temperature	-10 °C ... +55 °C
Degree of protection	IP65 with cable plug Type 2518

Circuit Function

Circuit function A (CF A): 2/2-way solenoid valve, servo-controlled, normally closed.

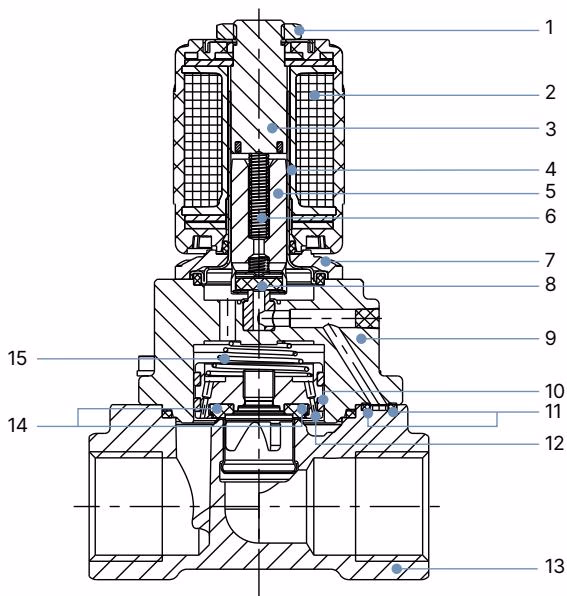

Materials (Steam Variant NA07, DN 13)

No.	Element	Material
1	Nut	Steel (thick-film passivated according to RoHS)
2	Coil	Epoxy
3	Stopper	Stainless steel 1.4113/434
4	Armature guide tube	Stainless steel 1.4303/305
5	Plunger	Stainless steel 1.4113/434
6	Spring	Stainless steel 1.4310/301
7	Flange	Steel (thick-film passivated according to RoHS)
8	Plunger seal	PTFE
9	Cover	Brass
10	Piston ring	PTFE
11	O-ring	Graphite
12	Piston	Brass
13	Valve body	Brass
14	Piston seal	PTFE
15	Spring	Stainless steel 1.4310/301

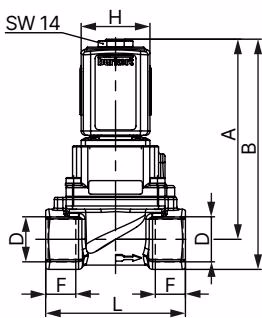

Dimensions (Steam Variant NA07, DN 13)

INFO

Dimensions in mm. The dimensions D1 and F1 apply to G thread. The dimensions D2 and F2 apply to NPT thread. The dimensions D3 and F3 apply to Rc thread.

Coil size	DN	A	B	G thread (D1)	G thread (F1)	NPT thread (D2)	NPT thread (F2)	Rc thread (D3)	Rc thread (F3)	E	L	SW	H	J	K
5	13	93.1	107.1	G 1/2	14	NPT 1/2	13.7	Rc 1/2	13.2	40	65	27	32	20.5	45
6	13	93.1	107.1	G 1/2	14	NPT 1/2	13.7	Rc 1/2	13.2	40	65	27	40	23.5	51

Performance Specifications

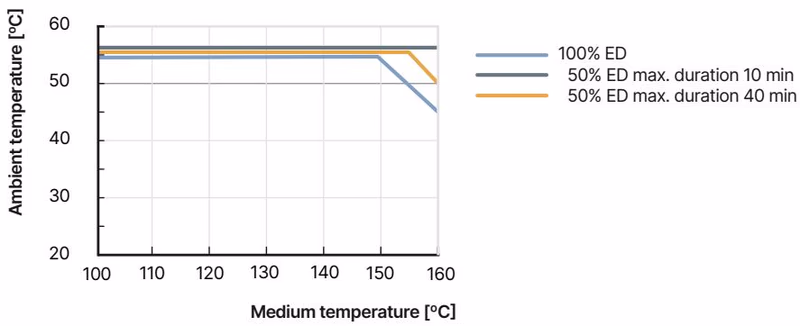

Temperature/duty cycle derating diagram for steam variant NA07

Safety & Installation

Risk of injury from high pressure and electric shock

• Before working on the system or device, switch off the pressure and ventilate or empty the lines.
• Before working on the system or device, switch off the power supply and secure against reactivation.

Risk of burns/fire

Keep the device away from highly flammable substances and media and do not touch with bare hands if operated continuously.

Installation Position

As required, preferably with actuator upright. Install a dirt trap upstream of the valve inlet (≤ 500 μm).
