Product Overview

The CA14 is a range of float type automatic liquid drainers for air and gas systems. The body and cover are of SG iron and the complete unit is readily maintainable.

The standard version with a Viton valve cone is designated CA14.

A stainless steel valve cone version is designated CA14S.

Product Features

• Available Options:
  • CA14: Standard version with Viton valve cone
  • CA14S: Stainless steel valve cone version
• Body Material: SG iron (EN-GJS-400-15) for durability in air and gas applications
• Standards: Fully complies with European Pressure Equipment Directive 2014/68/EU
• Certification: Material certification to EN 10204 2.2 available (must be stated at time of order)
• Note: The CA14 is not suitable for use on PED group 1 liquids or gases

Sizes and Pipe Connections

½" and ¾" screwed BSP T Rp (ISO 7-1) or NPT.

Pressure / Temperature Limits

The product must not be used in the shaded region.

Parameter	Value
Body Design Conditions	PN16
Maximum Allowable Pressure (PMA)	16 bar g @ 120 °C
Maximum Allowable Temperature (TMA)	250 °C
Minimum Allowable Temperature	0 °C
Maximum Operating Pressure (PMO)	16 bar g
Maximum Operating Temperature (TMO) - CA14	200 °C @ 14.7 bar g
Maximum Operating Temperature (TMO) - CA14S	250 °C @ 13.9 bar g
Minimum Operating Temperature	0 °C

Maximum Differential Pressure (ΔPMX):

Specific Gravity	1.0	0.9	0.8	0.7	Min. 0.6
ΔPMX (bar)	14.0	14.0	14.0	9.0	5.0

• Minimum Differential Pressure (ΔPMN): 0.1 bar
• Product is safe for use under full vacuum conditions
• Designed for a maximum cold hydraulic test pressure: 24 bar g

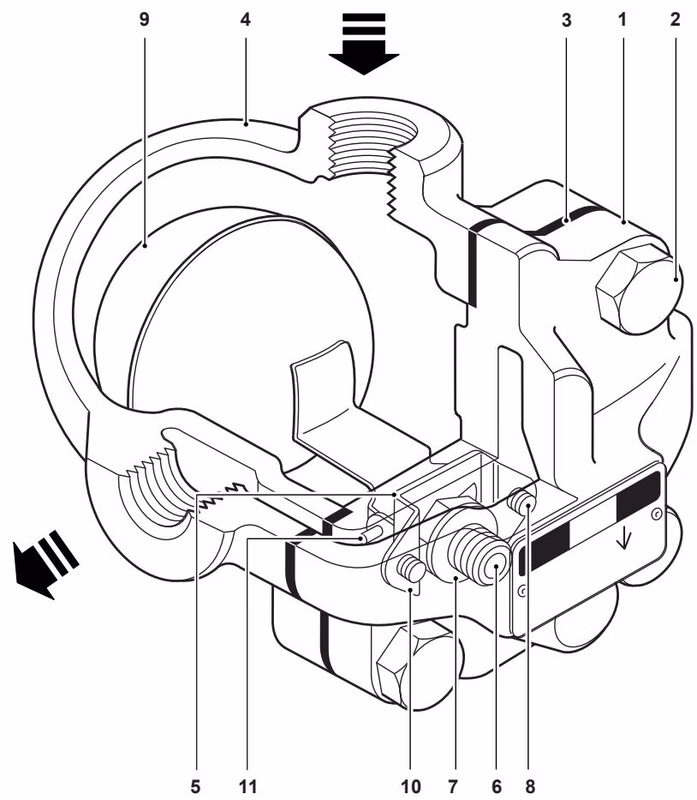

Materials

No.	Part	Material	Standard
1	Body	SG iron	EN-GJS-400-15
2	Cover bolt	Steel	BS 3692 Gr. 8.8
3	Cover gasket	Reinforced exfoliated graphite	-
4	Cover	SG iron	EN-GJS-400-15
5	Main valve cone	CA14: Viton (synthetic rubber) / CA14S: Stainless steel	CA14: Viton / CA14S: AISI 440B
6	Main valve seat	Stainless steel	BS 970 431 S29
7	Main valve seat gasket	Stainless steel	BS 1449 304 S11
8	Main valve assembly screws	Stainless steel	BS 6105 CIA270
9	Ball float and lever	Stainless steel	BS 1449 304 S16
10	Pivot frame	Stainless steel	BS 1449 304 S16
11	Pivot pin	Stainless steel	-

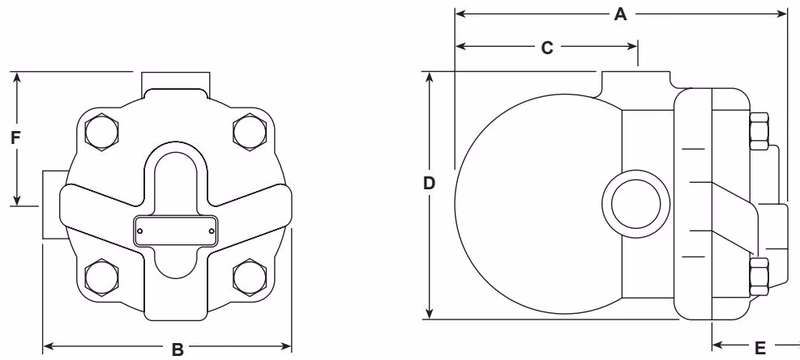

Dimensions and Weights (approximate in mm and kg)

Size	A	B	C	D	E	F	Weight
½"	147	114	80	114	105	60.5	2.5
¾"	147	114	80	114	105	60.5	2.5

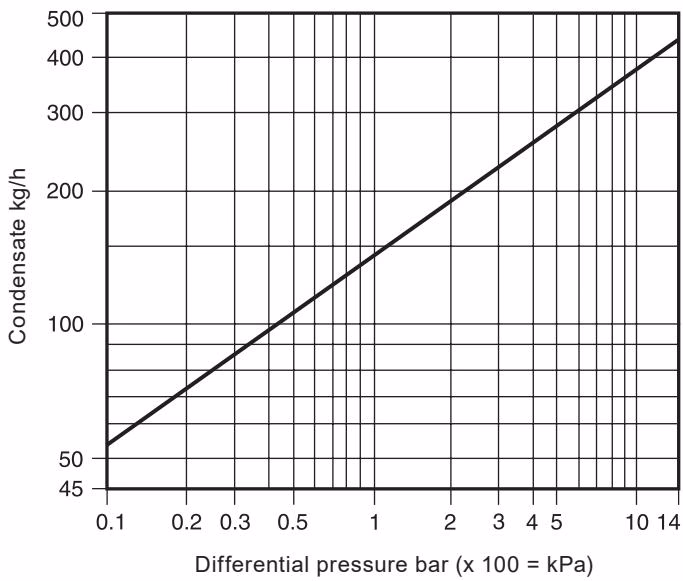

Capacities

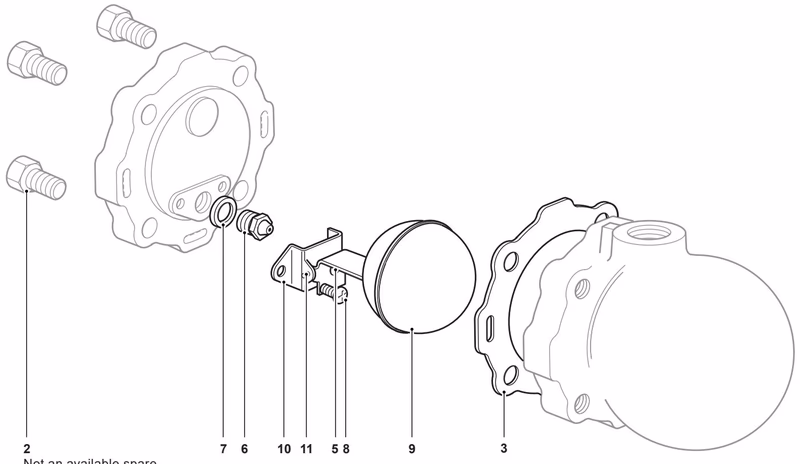

Spare Parts

The spare parts available are shown in heavy outline. Parts drawn in a grey line are not supplied as spares.

Available spares:

Item	CA14	CA14S
Maintenance kit	3, 5+9, 6, 7, 8 (2 off), 10, 11	3, 5+9, 6, 7, 8 (2 off), 10, 11
Seal kit	3, 5	-

Note: The maintenance kit for CA14S includes the stainless steel valve cone.

How to order spares: Always order spares by using the description given in the column headed "Available spares" and state the size and type of trap.

Example: 1 off Maintenance kit for a Spirax Sarco ½" CA14 air and gas trap.

Recommended tightening torques

Item	Across Flats (A/F)	Thread Size / Bolt	Torque (N m)
2	17 A/F	M10 × 30	47 - 50
6	17 A/F	-	50 - 55
8	Pozidrive	M4 × 6	2.5 - 3.0

Safety Information, Installation and Maintenance

For full details see the Installation and Maintenance Instructions (IM-P144-02) supplied with the product.

Installation note: The CA14 must be installed with the direction of flow as indicated on the body, and with the float arm in a horizontal plane so that it rises and falls vertically.

Disposal

If a product which contains a Viton component has been subjected to a temperature approaching 315 °C or higher, then it may have decomposed and formed hydrofluoric acid. Avoid skin contact and inhalation of any fumes as the acid will cause deep skin burns and damage to the respiratory system. Viton must be disposed of in a recognised manner as stated in the Installation and Maintenance Instructions. No other ecological hazard is anticipated with the disposal of this product providing due care is taken.

How to Order

Example: 1 off Spirax Sarco ½" CA14 having screwed BSP T Rp (ISO 7-1) connections with SG iron body and cover.
