Product Overview

Spirax Sarco IN15, IN25M, IN40M series steam injectors draw liquid through an annular orifice via steam injection action and mix it, the heated fluid is discharged into the tank while creating circulation to ensure thorough mixing and prevent temperature stratification. The compact design is suitable for steam heating of water and other fluids, particularly for boiler feedwater heating and deaeration applications. Three different sizes cover a wide range of flow requirements, and when single unit capacity is insufficient, two or more units can be installed in parallel.

Key Features

Product Advantages

• Excellent Material: Constructed from austenitic stainless steel ASTM A351 CF3M with excellent corrosion resistance
• Integrated Functions: Simultaneously provides heating, mixing and circulation functions without additional auxiliary equipment
• Reliable Structure: No moving parts design ensures reliable operation and low maintenance costs
• Smooth Operation: Minimized noise and vibration for stable operation
• Flexible Installation: Can be installed directly on tank wall or connected via piping, multiple connection options available
• High Adaptability: Three sizes available, single or multiple unit installation to meet different flow requirements

Technical Specifications

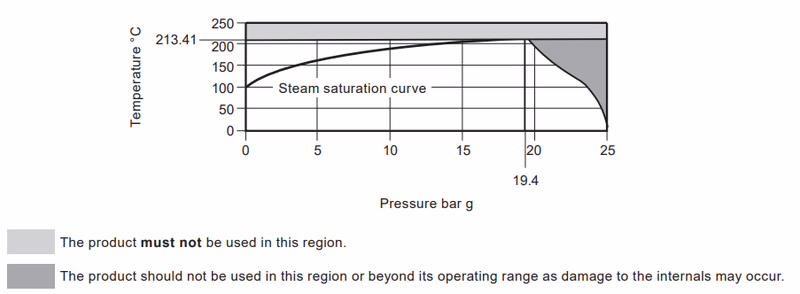

Pressure and Temperature Limits

Parameter	Specification
Body Design Rating	PN25
Minimum Operating Pressure	0.5 bar g
Maximum Saturated Steam Conditions	17 bar g @ 207 °C
Maximum Heating Temperature (Open Tank)	90 °C

Materials

Component	Material
Body	Austenitic Stainless Steel ASTM A351 CF3M

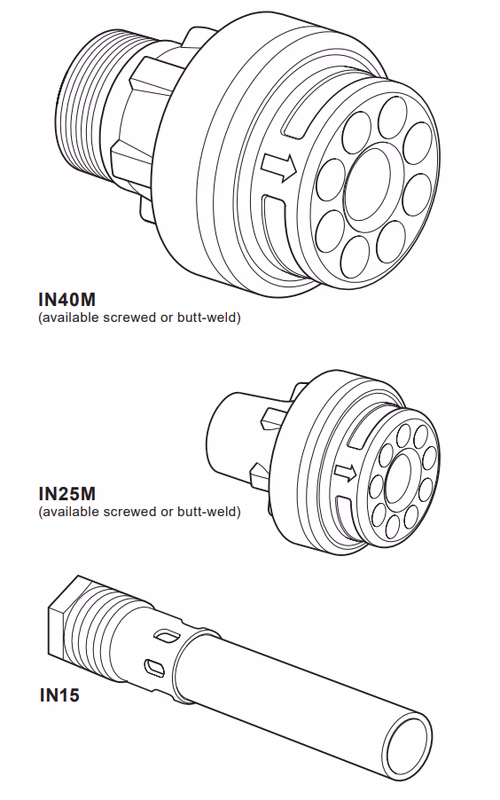

Dimensions and Weights

Model	Connection Size	A (Connection Type)	B (mm)	C (mm)	Weight (kg)
IN15	½" female/1" male thread	BSPT or NPT	205	28	0.4
IN25M	1" male thread/butt weld	BSPT/NPT or 1" Schedule 80 butt weld	84	71	0.8
IN40M	1½" male thread/butt weld	BSPT/NPT or 1½" Schedule 80 butt weld	115	88	1.6

Connection Specifications

Model	BSPT Male Thread	NPT Male Thread	Butt Weld Specification
IN15	1"	1"	-
IN25M	1"	1"	1" Schedule 80
IN40M	1½"	1½"	1½" Schedule 80

Flow Capacity

Selection Notes

Steam injector selection is based on steam flow rate. The tables below show saturated steam flow data for each model at different system pressures under open tank conditions (3m depth). Values not listed can be calculated by linear interpolation.

IN15 Flow Capacity

System Pressure (bar g)	0.5	1	2	3	4	5	6	7	8	9
Saturated Steam Flow (kg/h)	11	20	48	66	84	102	120	138	156	174

System Pressure (bar g)	10	11	12	13	14	15	16	17
Saturated Steam Flow (kg/h)	192	210	228	246	264	282	300	318

IN25M Flow Capacity

System Pressure (bar g)	0.5	1	2	3	4	5	6	7	8	9
Saturated Steam Flow (kg/h)	75	135	175	280	350	410	500	580	640	700

System Pressure (bar g)	10	11	12	13	14	15	16	17
Saturated Steam Flow (kg/h)	765	830	900	975	1045	1095	1170	1225

IN40M Flow Capacity

System Pressure (bar g)	0.5	1	2	3	4	5	6	7	8	9
Saturated Steam Flow (kg/h)	222	400	580	805	970	1125	1295	1445	1620	1820

System Pressure (bar g)	10	11	12	13	14	15	16	17
Saturated Steam Flow (kg/h)	1950	2250	2370	2595	2710	2815	3065	3200

Installation Instructions

Basic Installation Requirements

Installation Notes

1. Installation Position: Install at a low position in the tank, preferably at the centerline, with horizontal steam discharge
2. Piping Layout: Piping can be installed inside or outside the tank, steam piping must be securely fixed to prevent vibration and tank wall stress
3. Thread Sealing: Use of suitable adhesive on threaded connections is recommended
4. Installation Spacing: Maintain at least 150mm distance between injectors and between injector and tank wall, injector outlet should be as far as possible from tank wall

Pipe Size Selection

For single injector use, pipe size should match injector size (e.g., IN25M with 25mm pipe); for multiple unit combinations, select according to the following requirements:

Number of Injectors	Model	Minimum Pipe Size (mm)
2	IN15	20
2	IN40M	65
3	IN40M	80

Note

• Detailed installation and maintenance guides are provided with the product, safety information see IM-GCM-10
• Steam pressure drops significantly in the injector, control valve sizing must match, undersized or oversized valves will result in poor injection and mixing performance

System Combination Examples

Self-Acting Control System Combinations

Description

The tables below show saturated steam flow reference values for injector, valve and controller combinations in open tank applications (some combinations may not be available in all markets).

IN15 System Combinations

Configuration	IN15×1	IN15×2
Valve Model	BX6 DN15	SB DN15
Valve Kv Value	1.65	2.58
Controller	Self-acting control system, 2m capillary, Range 1: 20°C-110°C	Self-acting control system, 2m capillary, Range 1: 20°C-110°C
Steam Pressure 2 bar g (kg/h)	47	82
Steam Pressure 4 bar g (kg/h)	78	140
Steam Pressure 6 bar g (kg/h)	109	195
Steam Pressure 8 bar g (kg/h)	142	236
Steam Pressure 10 bar g (kg/h)	171	310
Steam Pressure 12 bar g (kg/h)	201	365
Steam Pressure 13 bar g (kg/h)	218	393

IN25M System Combinations

Configuration	IN25M×1
Valve Model	SB DN20
Valve Kv Value	3.81
Controller	Self-acting control system, 2m capillary, Range 1: 20°C-110°C
Steam Pressure 2 bar g (kg/h)	110
Steam Pressure 4 bar g (kg/h)	200
Steam Pressure 6 bar g (kg/h)	280
Steam Pressure 8 bar g (kg/h)	360
Steam Pressure 10 bar g (kg/h)	450

IN40M System Combinations

Configuration	IN40M×1	IN40M×2	IN40M×3
Valve Model	KB51 DN25	KC51 DN40	KC51 DN50
Valve Kv Value	9.8	16.48	34.0
Controller	Self-acting control system, 2m capillary, Range 2: 40°C-105°C	Self-acting control system, 2m capillary, Range 2: 40°C-105°C	Self-acting control system, 2m capillary, Range 2: 40°C-105°C
Steam Pressure 2 bar g (kg/h)	350	580	1150
Steam Pressure 4 bar g (kg/h)	550	1000	1750
Steam Pressure 6 bar g (kg/h)	750	1400	2525
Steam Pressure 8 bar g (kg/h)	1000	1750	3200
Steam Pressure 10 bar g (kg/h)	1200	2075	3800
Steam Pressure 12 bar g (kg/h)	-	2500	4500
Steam Pressure 13 bar g (kg/h)	-	2675	5000

Electrical/Pneumatic Control System Combinations

Description

System flow reference values using KE71/KE73 series valves with PN/AEL actuators, EP5 positioners and other components.

IN15 Electrical/Pneumatic System Combinations

Configuration	IN15×1	IN15×2
Valve Size	DN15	DN15
Valve Kv Value	1.6	4
Steam Pressure 2 bar g (kg/h)	47	96
Steam Pressure 4 bar g (kg/h)	78	168
Steam Pressure 6 bar g (kg/h)	109	240
Steam Pressure 8 bar g (kg/h)	142	312
Steam Pressure 10 bar g (kg/h)	171	384
Steam Pressure 12 bar g (kg/h)	201	456
Steam Pressure 13 bar g (kg/h)	218	492

IN25M Electrical/Pneumatic System Combinations

Configuration	IN25M×1
Valve Size	DN15
Valve Kv Value	4
Steam Pressure 2 bar g (kg/h)	110
Steam Pressure 4 bar g (kg/h)	200
Steam Pressure 6 bar g (kg/h)	280
Steam Pressure 8 bar g (kg/h)	360
Steam Pressure 10 bar g (kg/h)	450
Steam Pressure 12 bar g (kg/h)	650
Steam Pressure 13 bar g (kg/h)	750

IN40M Electrical/Pneumatic System Combinations

Configuration	IN40M×1	IN40M×2	IN40M×3
Valve Size	DN25	DN32	DN50
Valve Kv Value	10	16	36
Steam Pressure 2 bar g (kg/h)	350	580	1150
Steam Pressure 4 bar g (kg/h)	550	1100	1750
Steam Pressure 6 bar g (kg/h)	750	1400	2525
Steam Pressure 8 bar g (kg/h)	1000	1750	*
Steam Pressure 10 bar g (kg/h)	1200	2075	*
Steam Pressure 12 bar g (kg/h)	1650	*	*
Steam Pressure 13 bar g (kg/h)	1750	*	*

Note

• • in the table indicates contact local Spirax Sarco engineer for confirmation
• The above system combination data are empirical values and not recommended for critical equipment

Ordering Information

Ordering Notes

When ordering, specify product model, connection type (thread type/butt weld specification) and other key information.

Ordering Example: Spirax Sarco IN25M Steam Injector, 1" BSPT thread, Austenitic Stainless Steel ASTM A351 CF3M
