Description

The M70i is a forged 316L stainless steel, three-piece body ball valve with ISO mounting as standard. It is designed generally in accordance with ASME BPE for liquid and gas utility duties and process support applications such as clean steam.

The M70i is intended for isolation duty and should not be used as a control valve.

Principal features

• True port design: internal diameter of the end connections and ball matches the connecting tubing to promote drainability.
• Forged construction: manufactured from high integrity ASTM A182 F316L.
• Low ferrite body and ends: 3% to 5% ferrite content to help prevent rouge.
• Orbital welding friendly: extended tube weld ends allow automatic orbital welding without valve disassembly.
• Automation ready: ISO 5211 mounting pad is standard.
• Lockable handle: spring-loaded handle can be locked in the chosen position.

Surface finish and available types

Standard internal surface finish is 0.5 micron Ra, 20 micro inch, compliant with ASME BPE SF1. Electropolished finish to 0.375 micron Ra, 15 micro inch, compliant with ASME BPE SF4, is available to special order. External finish is as forged and machined.

Available type	Seat / finish
M70iV ISO	Virgin PTFE TFM 1600
M70iVEP ISO	Virgin PTFE TFM 1600, electropolished to 0.375 micron Ra
M70iG ISO	Mineral filled PTFE
M70iGEP ISO	Mineral filled PTFE, electropolished to 0.375 micron Ra
M70iV CF ISO	Virgin PTFE TFM 1600 with cavity fillers
M70iVEP CF ISO	Virgin PTFE TFM 1600 electropolished to 0.375 micron Ra, with cavity fillers
M70iG CF ISO	Mineral filled PTFE with cavity fillers
M70iGEP CF ISO	Mineral filled PTFE electropolished to 0.375 micron Ra, with cavity fillers

Optional extras

• Extended stem 100 mm, 4 in, for insulated service.
• Cavity fillers are optional, not standard, and are not recommended for steam service.
• Low ferrite below 1% is available on special request.

Standards, certification, and packaging

This product complies with the Pressure Equipment Directive.

Available certification includes:

• EN 10204 3.1 material certificates for body and caps
• EN 10204 3.1 material certificates for wetted parts, seat, and seals, at additional cost
• Typical internal surface finish certificates
• Specific internal surface finish certificates on request at point of order
• Certificate of compliance for ADI free seats and seals
• TSE / BSE free statement
• Declaration of compliance EC1935:2004 for food contact materials

Seal materials comply with:

• FDA CFR Title 21, paragraph 177.1550
• USP Class VI
• ADI free requirements for material and manufacturing process

Each valve is end capped and sealed in a plastic bag to prevent ingress of dirt and contaminants.

Sizes and pipe connections

The standard size range is:

• 1/2 in
• 3/4 in
• 1 in
• 1 1/2 in
• 2 in

Available end connections:

• Sanitary clamp, ASME BPE / BS 4825 / DIN 32676-C
• Extended O/D tube weld ends, ETO, ASME BPE
• Sanitary clamp / ETO combinations

Other connection options are available on request. For larger 2 1/2 in, 3 in, and 4 in sanitary ball valves, Spirax Sarco refers to the M80i range.

Steam service note: cavity filler is not recommended for steam applications.

Pressure and temperature limits

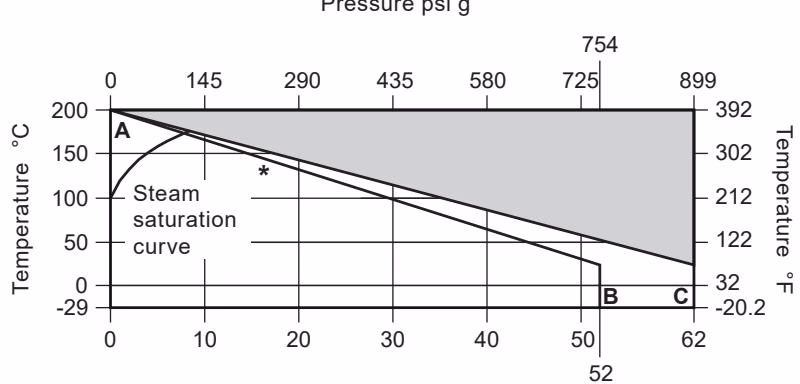

The product must not be used in the prohibited region shown on the pressure / temperature graph.

• A to B: virgin PTFE TFM 1600
• A to C: mineral filled PTFE

For clamp connection valves, maximum operating conditions may be limited by the clamp selected.

Item	Value
Body design conditions	PN63
PMA maximum allowable pressure	62 bar g at 20 degC, 899 psi g at 68 degF
TMA maximum allowable temperature	200 degC at 0 bar g, 392 degF at 0 psi g
Minimum allowable temperature	-29 degC, -20.2 degF
PMO saturated steam, TFM 1600 seat	7.0 bar g, 102 psi g
PMO saturated steam, mineral filled PTFE seat	8.5 bar g, 123 psi g
TMO maximum operating temperature	200 degC at 0 bar g, 392 degF at 0 psi g
Minimum operating temperature	-29 degC
PMX maximum differential pressure	Limited to PMO
Cold hydraulic test pressure	93 bar g, 1349 psi g

Materials

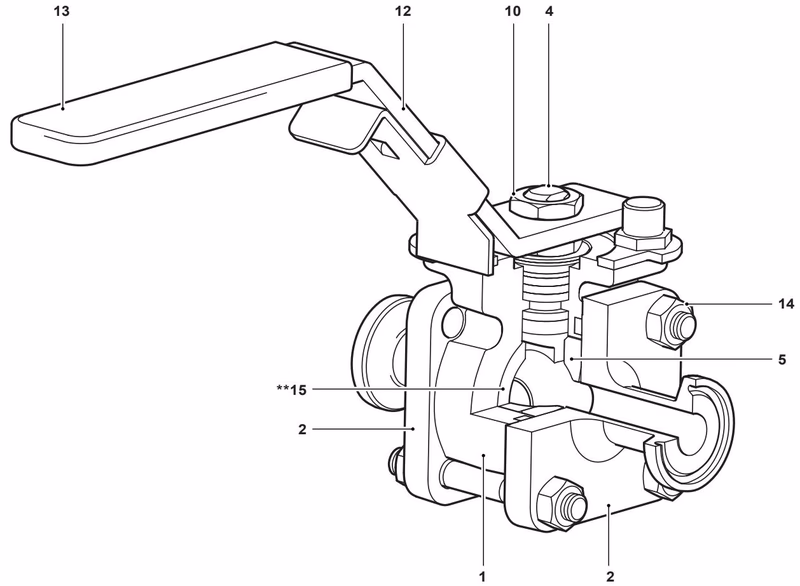

No.	Part	Material	Specification
1	Body	Stainless steel	ASTM A182 F316L
2	End connection	Stainless steel	ASTM A182 F316L
11	Nameplate, not shown	Stainless steel	AISI 430
12	Handle	Stainless steel	AISI 316
13	Cover	Vinyl	-
14	Stud and nut	Stainless steel	AISI 316

Exploded internals

No.	Part	Material	Specification
3	Ball	Stainless steel	AISI 316L
4	Stem	Stainless steel	AISI 316L
5	M70iG seat	Mineral filled PTFE	-
5	M70iV seat	Virgin PTFE TFM 1600	-
6	Stem seal	Virgin PTFE TFM 1600	-
7	Spacer	Stainless steel	AISI 316
8	Compression nut	Stainless steel	AISI 316
9	Lock washer	Stainless steel	AISI 316
10	Stem nut	Stainless steel	AISI 316
15	Cavity filler, on request	Virgin PTFE TFM 1600	-
16	Body cap gasket	Virgin PTFE TFM 1600	-
17	Belleville washer	Stainless steel	AISI 316
18	Stem seal	Stainless steel	INOX

Technical data

Item	Value
Leakage test procedure	ISO 5208 Rate A / EN 12266-1 Rate A
Stem seal and seat	Materials comply with FDA CFR Title 21 Part 177 Section 1550
Stem seal and seat	Materials comply with USP23 Class VI
Flow characteristic	Modified linear
Port	True port design

Kv values

Size	1/2 in	3/4 in	1 in	1 1/2 in	2 in
Kv	7	25	56	164	360

Conversion:

• Cv UK = Kv x 0.963
• Cv US = Kv x 1.156

Torque values

Size	1/2 in	3/4 in	1 in	1 1/2 in	2 in
Nm	13	15	19	70	100
lbf ft	10	11	14	52	74

The torque figures apply to a valve operated frequently at maximum operating pressure. Valves held static for long periods may require higher break-out torque.

Dimensions and weights

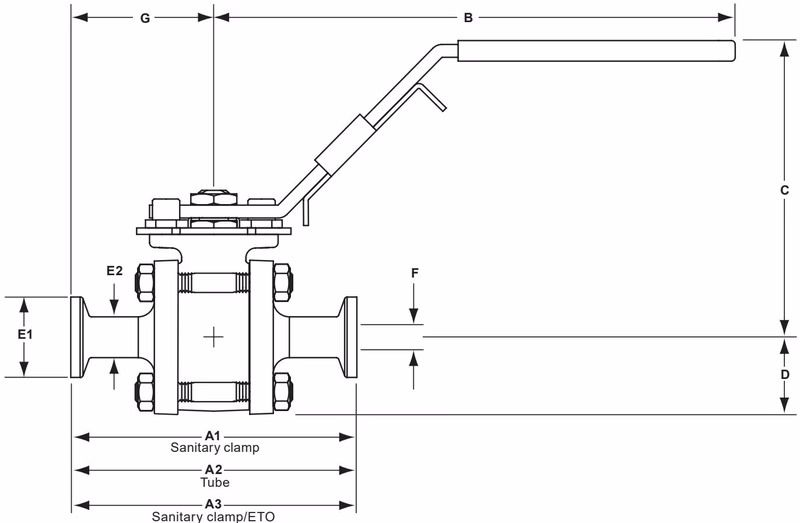

Size	A1 mm	A2 mm	A3 mm	B mm	C mm	D mm	E1 mm	E2 mm	F mm	G clamp mm	G ETO mm	Weight kg
1/2 in	89.0	140.0	114.5	161	92	24	25.0	12.70	9.4	44.5	70.0	0.80
3/4 in	101.6	152.4	127.0	161	94	26	25.0	19.05	15.8	50.8	76.2	1.00
1 in	114.2	165.0	139.6	161	101	31	50.5	25.40	22.2	57.1	82.5	1.55
1 1/2 in	139.6	190.4	165.0	185	126	48	50.5	38.10	34.8	69.8	95.2	4.50
2 in	158.7	203.1	180.9	250	141	57	64.0	50.80	47.5	79.4	101.6	7.70

Installation and welding

For full details, see the installation and maintenance instructions supplied with the product.

Only ETO models intended for welding should be welded. Clamp connection valves must not be welded, to avoid damage to soft parts.

Ordering information

When ordering, specify:

• Size
• End connection
• Seat material
• Internal surface finish
• Required certification

Cavity fillers are not standard and must be specified if required.

Ordering example:

1 off Spirax Sarco 1/2 in M70iV ISO forged sanitary ball valve with sanitary clamp connections, ASME BPE, internal surface finish 0.5 micron Ra, supplied with EN 10204 3.1 material certification.

Spare parts

The spare parts shown in solid outline are available as spares. Parts shown in grey outline are not supplied as spares.

Available spares

Spare part	Reference numbers
Seat and seal set	5, 6, 16, 18
Seat and seal set with cavity filler	5, 6, 15, 16, 18

How to order spares

State the spare part description together with the valve size and model.
