Product Overview

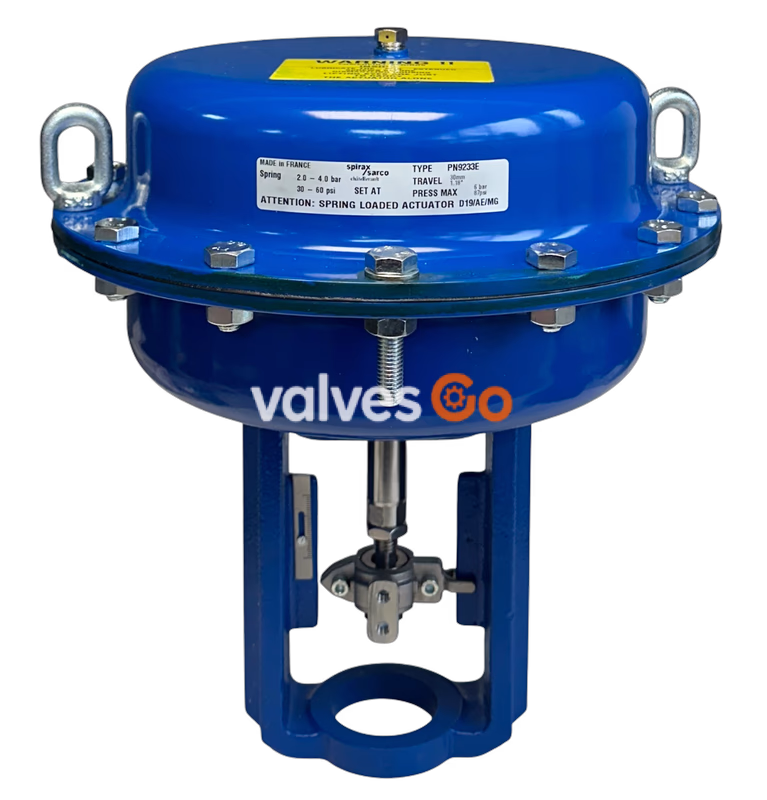

Spirax Sarco PN9000 series pneumatic actuator is a compact linear actuator designed specifically for SPIRA-TROL series control valves, offering three core series: PN9100, PN9200, and PN9300, corresponding to three diaphragm sizes of 100 cm², 340 cm², and 670 cm², meeting different differential pressure application requirements. The actuator features mechanical stroke indication, full rolling diaphragm ensuring good linearity within the operating stroke, supports both spring extend (E) and spring retract (R) spring action types, and provides various optional configurations to adapt to complex application scenarios.

Key Technical Parameters

Basic Performance Parameters

Parameter Name	Parameter Value
Temperature range	-20°C - +110°C
Maximum operating supply pressure	PN9100/PN9200: 6 bar g; PN9300: 4 bar g
Supply connection	¼" NPT
Actuator stroke	PN9100/PN922_/PN932_: 20 mm; PN923_/PN933_: 30 mm
Spring range options	0.2-1.0 bar, 0.4-1.2 bar, 1.0-2.0 bar, 2.0-4.0 bar, 2.5-3.5 bar (PN933_ series only)
Shut-off class	Class IV, Class VI (soft seat only)

Thrust Parameters (at different compressed air pressures)

Actuator Model	Diaphragm Size (cm²)	Spring Range (bar)	Spring Force (N)	Thrust at 2 bar (N)	Thrust at 3 bar (N)	Thrust at 4 bar (N)	Thrust at 5 bar (N)	Thrust at 6 bar (N)
PN91_0_	100	0.2-1.0	200	1000	2000	3000	4000	5000
PN91_0_	100	0.4-1.2	400	800	1800	2800	3800	4800
PN91_6_	100	1.0-2.0	1000	-	1000	2000	3000	4000
PN91_3_	100	2.0-4.0	2000	-	-	-	1000	2000
PN92_0_	340	0.2-1.0	680	3400	6800	10200	13600	17000
PN92_0_	340	0.4-1.2	1360	2720	6120	9520	12920	16320
PN92_6_	340	1.0-2.0	3400	-	3400	6800	10200	13600
PN92_3_	340	2.0-4.0	6800	-	-	-	3400	6800
PN93_0_	670	0.2-1.0	1340	6700	13400	20100	-	-
PN93_0_	670	0.4-1.2	2680	5360	12060	18760	-	-
PN93_6_	670	1.0-2.0	6700	-	6700	13400	-	-
PN93_7_	670	2.5-3.5	16750	-	-	3350	-	-

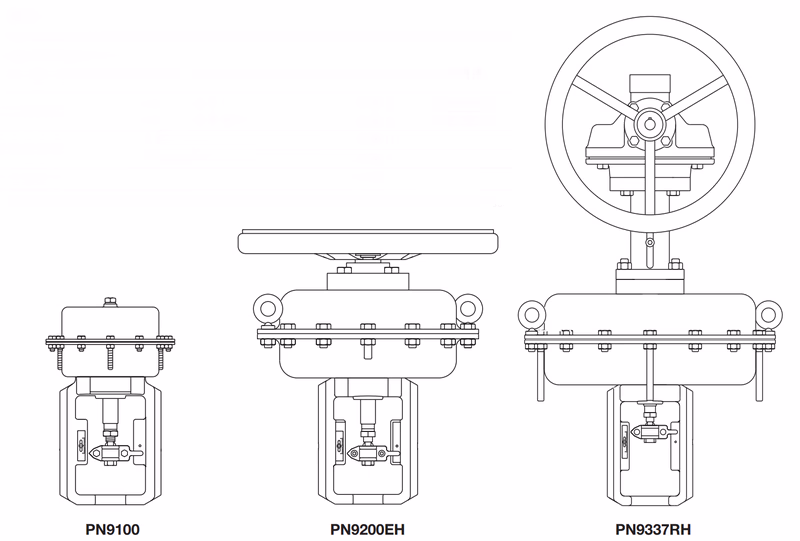

Dimensions and Weight

Overall Dimensions and Weight (approximate)

Actuator Model	F(mm)	G(mm)	H(mm)	J(Handwheel Raised Height)(mm)	K(mm)	Base Weight(kg)	Additional Weight with Handwheel(kg)
PN9100E Series	275	170	55	75	225	6	+5.86
PN9100R Series	275	170	120	140	225	6	+2.50
PN9200E Series	300	300	65	85	350	17	+7.20
PN9200R Series	300	300	132	152	350	17	+3.77
PN9230E Series	335	300	65	95	350	17	+3.77
PN9230R Series	335	300	122	152	350	17	+3.77
PN9320E Series	325	390	65	85	350	27	+7.20
PN9320R Series	325	390	132	152	350	27	+3.77
PN9330E Series	335	390	65	95	350	27	+7.20
PN9330R Series	335	390	122	152	350	27	+3.70
PN9336E Series	335	390	65	95	350	27	+7.20
PN9336R Series	335	390	122	152	350	27	+3.77
PN9337E Series	335	390	410	410	350	27	+21.00
PN9337R Series	335	390	410	410	350	27	+21.00

Component Material Details

No.	Component Name	Material Specification	Notes
1	Yoke	Ductile iron	-
2	Upper diaphragm cover	Carbon steel (plate steel)	-
3	Diaphragm plate	Aluminum	-
4	Diaphragm	Reinforced NBR	-
5	Spring	Spring steel	-
6	Stem	Stainless steel	-
7	Gasket	Carbon steel (plate steel)	-
8	Partition plate	Carbon steel (plate steel)	-
9	"O" ring	Viton	-
10	Connector	Stainless steel	BS 970 431 S29
11	Adapter	Stainless steel	BS 970 431 S29
12	Collar	Carbon steel (plate steel)	PN9000 model
12	Collar	Stainless steel 1.4057/ANSI 420	PNP9000 model
12	Collar	Stainless steel 316L	PN9000S model
13	Front clamp	Stainless steel	BS 3100 Pt 2 304 C15
14	Rear clamp	Stainless steel	BS 3100 Pt 2 304 C15
15	Scale	Stainless steel	BS 1449 304 S16
16	Exhaust nut	Brass	-
17	Bearing	PTFE/composite steel	-
18	Seal	Polyurethane	-
19	Slot flat head screw	Carbon steel (plate steel)	PN9000 model
19	Slot flat head screw	Stainless steel	PNP9000/PN9000S model, A2-70
20	Nut	Carbon steel (plate steel)	PN9000 model
20	Nut	Stainless steel	PNP9000/PN9000S model, A2-70
21	Screw	Carbon steel (plate steel)	Gr.8.8
22	Cover top preload bolt (short)	Carbon steel (plate steel)	PN9000 model, Gr.8.8
22	Cover top preload bolt (short)	Stainless steel	PNP9000/PN9000S model, A2-70
23	Cover top preload bolt (long)	Carbon steel (plate steel)	PN9000 model, Gr.8.8
23	Cover top preload bolt (long)	Stainless steel	PNP9000/PN9000S model, A2-70
24	Cover top preload nut	Carbon steel (plate steel)	PN9000 model, Gr.8.8
24	Cover top preload nut	Stainless steel	PNP9000/PN9000S model, A2-70
25	Lock nut	Carbon steel (plate steel)	PN9000 model
25	Lock nut	Stainless steel	PNP9000/PN9000S model, A2-70
26	Connector screw	Carbon steel (plate steel)	PN9000 model, Gr.8.8
26	Connector screw	Stainless steel	PNP9000/PN9000S model, A2-70
27	Connector nut	Carbon steel (plate steel)	PN9000 model, Gr.8.8
27	Connector nut	Stainless steel	PNP9000/PN9000S model, A2-70
28	Gasket	Carbon steel (plate steel)	-
29	Screw	Carbon steel (plate steel)	Gr.8.8
30	Gasket	Reinforced graphite	-
31	Lower diaphragm cover	Carbon steel (plate steel)	-
32	Lifting lug	Cast steel	PN9000/PNP9000 model
32	Lifting lug	Stainless steel 316L	PN9000S model

Optional Configuration Description

Configuration Type	Suffix Identifier	Configuration Description
Base coating	PN	Polyester powder coating (standard)
Surface treatment	PNP	Electroless nickel plating
Spring action	E	Spring extend
Spring action	R	Spring retract
Manual control	H	Handwheel (option)
Bolt material	S	Stainless steel bolts (option)
Response type	F	Fast type (PN92_ and PN93_ series only)
Yoke adaptation	Blank	SPIRA-TROL K and L series (M34), suitable for DN15-DN50
Yoke adaptation	B	SPIRA-TROL J series (M50), suitable for DN15-DN50

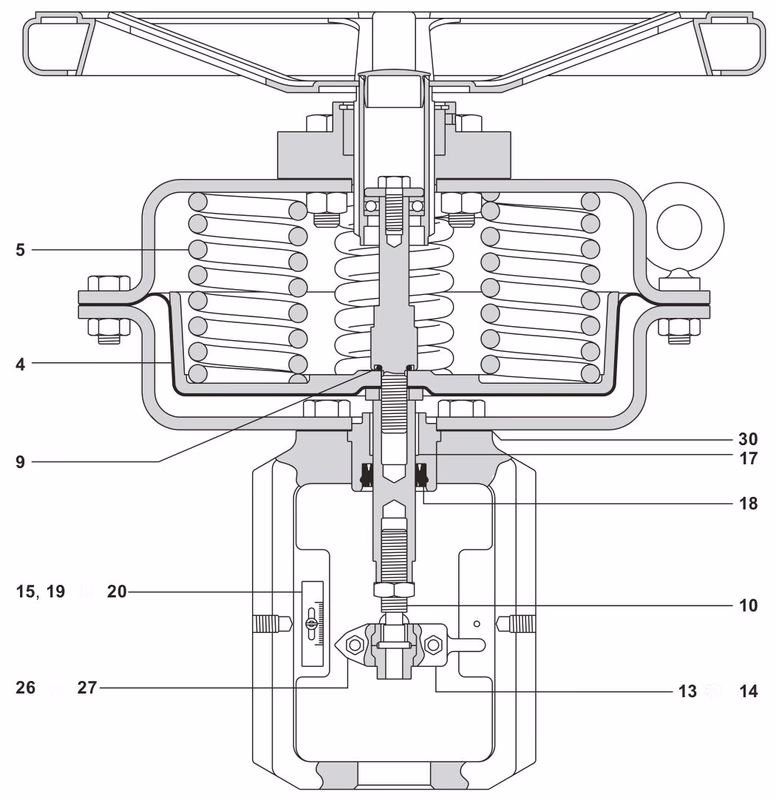

Spare Parts List

Spare parts for the PN9000 series pneumatic actuator are applicable to all models of spring extend (E) and spring retract (R) types. When ordering, please specify the actuator model and spare part name.

Spare Part Name	Corresponding Component No.	Notes
Stem seal assembly	17, 18, 30	Includes bearing, seal, reinforced graphite gasket
Diaphragm assembly	4, 9	Includes reinforced NBR diaphragm, Viton "O" ring
Stroke indicator assembly	15, 19, 20	Includes stainless steel scale, slot flat head screw, nut
Spring assembly	5	Spring steel material, matched to corresponding spring range
Connector (for Mk1 and SPIRA-TROL valves)	10, 13, 14, 26, 27	Includes connector, front clamp, rear clamp, connector screw, connector nut

Selection Guide

Selection Criteria

1. Determine the required valve model and stem packing type (PTFE or graphite).
2. Identify the maximum operating pressure (including transient pressure) in the application scenario.
3. According to valve size (DN15-DN100), shut-off class (Class IV/VI) and application requirements, refer to the differential pressure selection table in the documentation to select the appropriate actuator.
4. For conditions beyond those listed in the table, please contact Spirax Sarco technical support.

Model Coding Rules

Code Part	Meaning	Optional Values
Surface treatment	Base coating/Electroless nickel plating	PN (standard), PNP (electroless nickel plating)
Series identifier	Actuator series	9 (represents 9000 series)
Diaphragm size	Diaphragm area	1 (100 cm²), 2 (340 cm²), 3 (670 cm²)
Valve stroke	Actuator stroke	2 (20 mm), 3 (30 mm)
Spring range	Spring operating pressure range	0 (0.2-1.0 bar), 3 (2.0-4.0 bar), 5 (0.4-2.0 bar, PN9100 only), 6 (1.0-2.0 bar), 7 (2.5-3.5 bar, PN933_ only)
Spring action	Spring action type	E (extend), R (retract)
Optional configuration	Additional functions	H (handwheel), S (stainless steel bolts), F (fast type)

Selection Example

To order one set of pneumatic actuator with electroless nickel plating surface, diaphragm size 670 cm², stroke 30 mm, spring range 2.5-3.5 bar, spring extend type, the model code is: PNP9337E.
