Product Overview

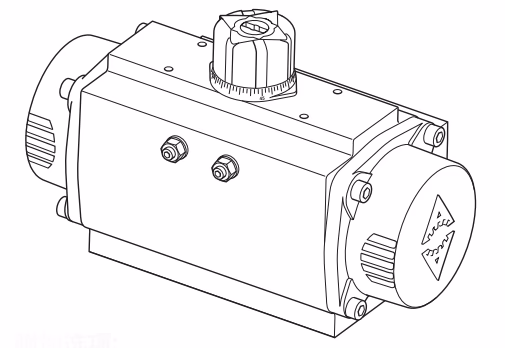

Spirax Sarco BVA300 series pneumatic rotary actuators are drive units specifically designed for various Spirax Sarco ball valves, widely used in multiple industrial applications. This series features bi-directional travel stops for precise 90º±5º rotation, paired with the new BVL-X coupling (with extended stem) to ensure reliable connection and efficient transmission with Spirax Sarco ball valves.
The actuators are compatible with three categories of Spirax Sarco ball valves:
- Three-piece ball valves: M10F ISO, M10Hi ISO, M10HPi ISO, M10HTi ISO, M10Pi ISO, M10Si ISO, M10Ti ISO, M10Vi ISO, M15i ISO, M70i ISO and M80i ISO
- Two-piece ball valves: M31S ISO, M31V ISO, M33F ISO, M33H ISO, M33HT ISO, M33S ISO, M33T ISO and M33V ISO
- One-piece ball valves: M21Fi ISO, M21Hi ISO, M21HTi ISO, M21Si ISO, M21Ti ISO, M21Vi ISO, M40Fi ISO, M40Hi ISO, M40HTi ISO, M40Si ISO, M40Ti ISO, M40Vi ISO and M45i ISO
Key Advantages
- Bi-directional Travel Stops: Precise 90º±5º rotation ensures reliable valve opening and closing
- Double/Single Acting Options: Double-acting (D type) and single-acting spring return (S type) meet different control requirements
- Industrial Grade Protection: Limit switch box IP67, solenoid valve IP65
- Wide Temperature Range: -30°C to 100°C, other temperature ranges available on request
Technical Specifications
Basic Parameters
| Parameter | Specification |
|---|---|
| Maximum Pressure | 8 bar g |
| Minimum Pressure | 3 bar g |
| Standard Operating Pressure | 3, 4, 5 or 6 bar g |
| Operating Temperature Range | -30°C to 100°C (other temperature ranges available) |
| Rotation Angle | 90°±5° |
| Rotation Direction | Counter-clockwise when port "A" is pressurized |
| Operating Medium | Clean, dry compressed air; non-corrosive gases; light oils (must be compatible with O-ring materials) |
| Air Inlet Connection | NAMUR G ¼" DIN |
Optional Accessories Parameters
Limit Switch Boxes
| Model | Type | Specification | Protection/Explosion Rating |
|---|---|---|---|
| LSB31 | Contact Switch | 2 x SPDT | Standard IP67 |
| LSB71 | Contact Switch | 2 x SPDT | Exd IIC T6 |
| LSB32 | Proximity Sensor | 10 - 30 Vdc 3-wire (NPN) | Standard IP67 |
| LSB72 | Proximity Sensor | 10 - 30 Vdc 3-wire (NPN) | Exd IIC T6 |
| LSB33 | Proximity Sensor | 8 Vdc 2-wire | Standard IP67 |
| LSB73 | Proximity Sensor | 8 Vdc 2-wire | Exd IIC T6 |
| LSB34 | Proximity Sensor | 5 - 60 Vdc 2-wire | Standard IP67 |
| LSB74 | Proximity Sensor | 5 - 60 Vdc 2-wire | Exd IIC T6 |
Solenoid Valves
| Type | Applicable Actuator | Coil Voltage Options | Protection Rating | Notes |
|---|---|---|---|---|
| 3/2 NAMUR | Single-Acting Actuator | 220VAC, 110VAC, 24VAC/dc | IP65 | Explosion-proof available |
| 5/2 NAMUR | Double-Acting Actuator | 220VAC, 110VAC, 24VAC/dc | IP65 | Explosion-proof available |
Materials
Actuator Body Materials
| No. | Component | Material |
|---|---|---|
| 1 | Body | Hard anodized aluminum |

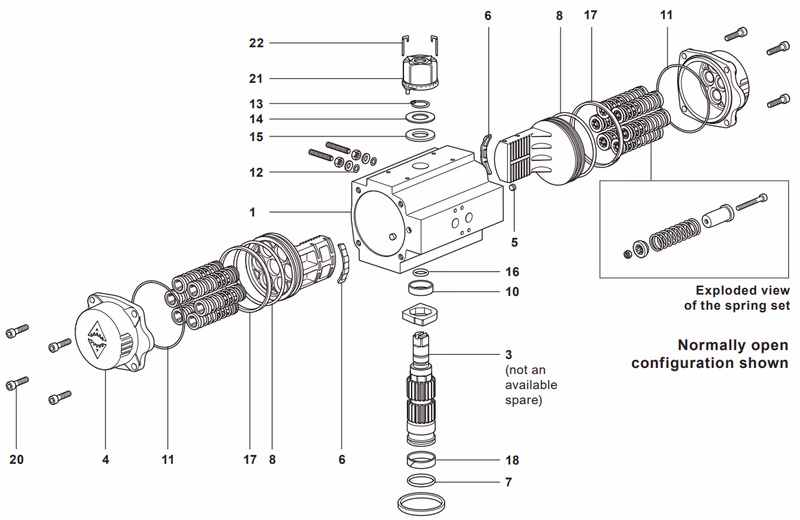

| 3 | Pinion (clearly shown in spare parts diagram on page 3) | Nickel-plated carbon steel |
| 4 | End Cap | Epoxy coated aluminum |
| 20 | Bolts | Stainless steel |
| 21 | Indicator Cover | Polyamide nylon |
| 22 | Color Indicator | Polyamide nylon |
BVL-X Coupling Assembly Materials
| Component | Material |
|---|---|
| Frame | AISI 304 stainless steel |
| Stem Adapter | AISI 304 stainless steel |
| Frame-Actuator Mounting Screws | Stainless steel |
| Frame-Valve Mounting Screws | Stainless steel |
| Washers | Stainless steel |
| Stem Nut | Stainless steel |

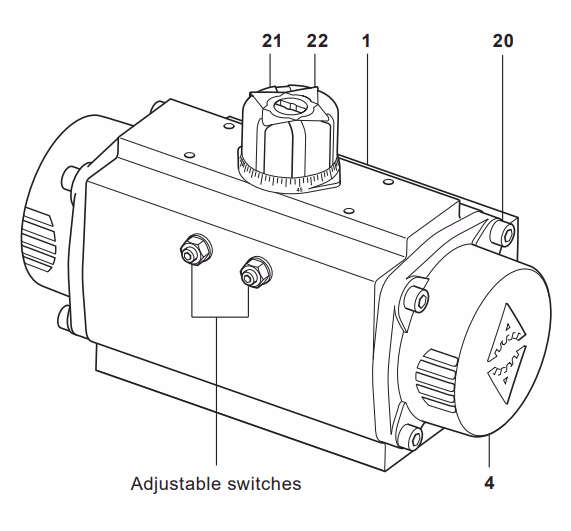

Product Structure
Dimensions and Weight
Dimensions/Weight (approximate) mm/kg
| Model | A1 | A | B | C | D | E | Weight (Single-Acting) | Weight (Double-Acting) |
|---|---|---|---|---|---|---|---|---|
| BVA310 | 163 | 145 | 96 | 76 | 48 | 34 | 1.6 | 1.4 |
| BVA315 | 195 | 158 | 115 | 91 | 56 | 45 | 2.3 | 2.1 |
| BVA320 | 217 | 177 | 137 | 111 | 66 | 55 | 3.7 | 3.0 |
| BVA325 | 258 | 196 | 147 | 122 | 71 | 60 | 4.8 | 3.8 |
| BVA330 | 299 | 225 | 165 | 136 | 78 | 70 | 7.3 | 5.6 |
| BVA335 | 349 | 273 | 182 | 153 | 86 | 80 | 10.8 | 8.5 |
| BVA340 | 397 | 304 | 199 | 173 | 96 | 85 | 15.4 | 11.2 |
| BVA345 | 473 | 372 | 221 | 192 | 106 | 98 | 22.2 | 16.9 |
| BVA350 | 560 | 439 | 249 | 213 | 116 | 114 | 34.3 | 25.8 |
| BVA355 | 601 | 461 | 280 | 243 | 131 | 130 | 46.0 | 32.5 |
| BVA357 | 698 | 504 | 313 | 276 | 148 | 147 | 66.0 | 49.1 |
| BVA360 | 738 | 518 | 383 | 356 | 178 | 177 | 99.9 | 69.6 |
| BVA365 | 940 | 630 | 434 | 415 | 213 | 201 | 183.0 | 129.4 |

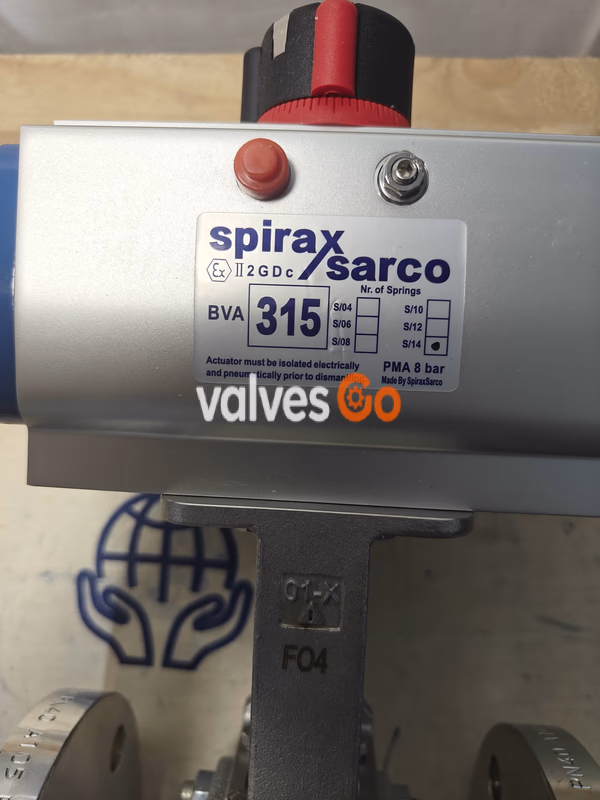

Spring Quantity Selection
BVA actuators have different spring configurations depending on the air supply pressure. See IM-P372-24 for details.
| BVA | S/4 | S/6 | S/8 | S/10 | S/12 | S/14 |
|---|---|---|---|---|---|---|
| 310 | ● | ● | ● | - | - | - |
| 315 - 365 | - | - | ● | ● | ● | ● |
Example: BVA325S/10 has 10 springs.
Installation Notes
- The actuator is mounted to Spirax Sarco ball valves via the BVL_X coupling assembly, all mounting screws are stainless steel
- Solenoid valves and limit switch boxes can be selected according to actual control requirements
- Installation location should allow easy operation and maintenance, and comply with relevant safety regulations

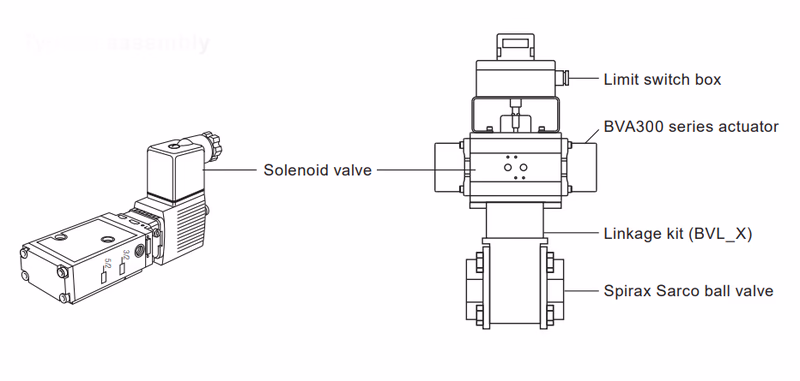

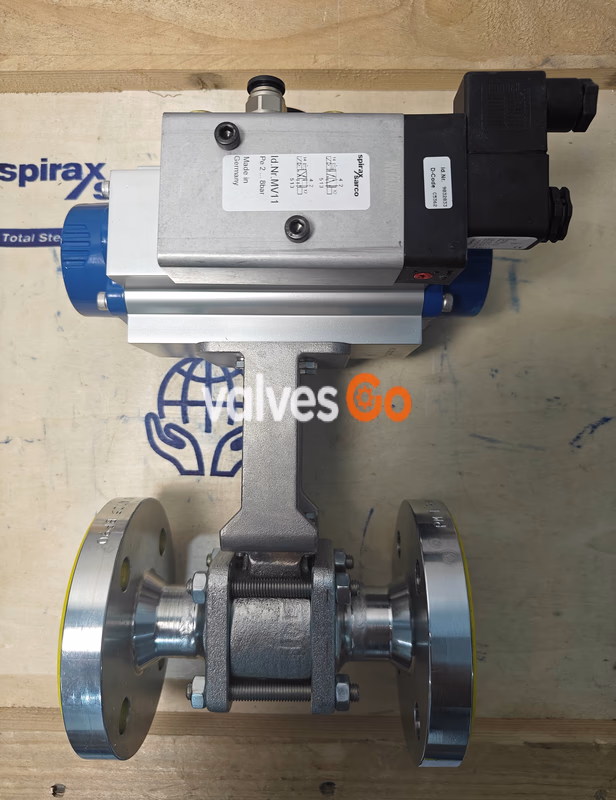

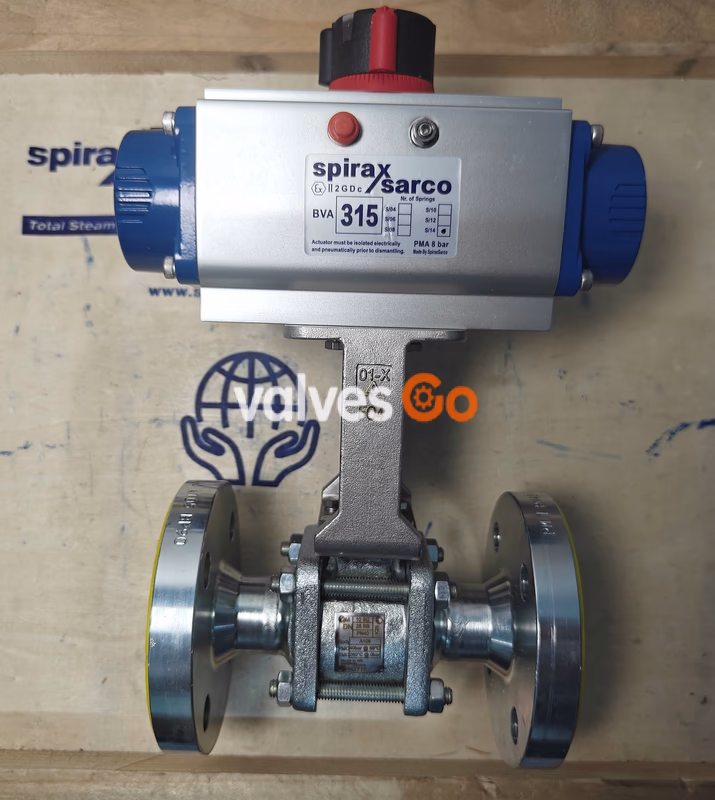

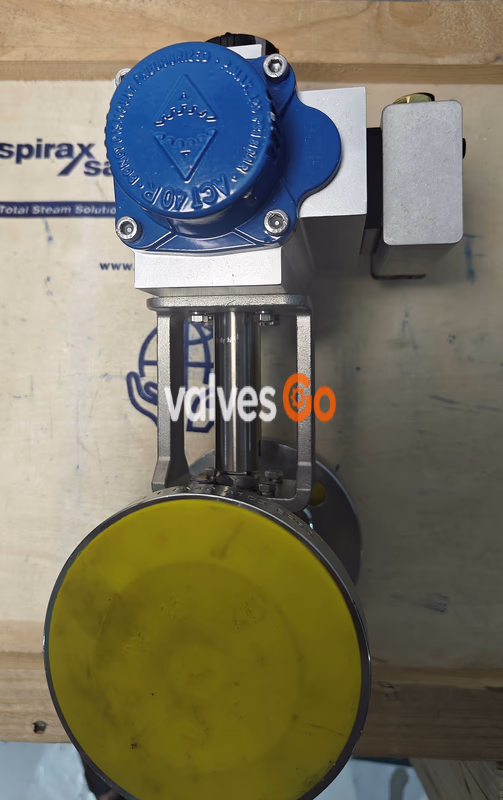

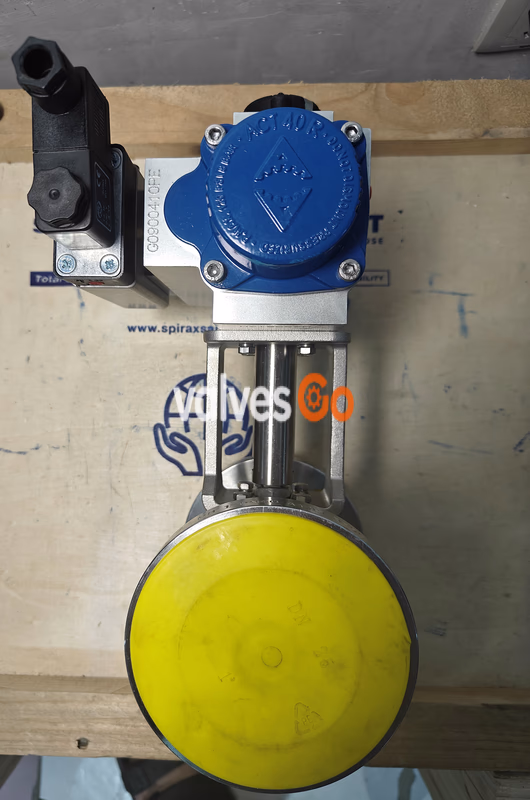

Typical Installation
Installation Components
- A: BVA300 Series Actuator
- B: Spirax Sarco Ball Valve
- C: Coupling (BVL_X)
- D: Solenoid Valve
- E: Limit Switch Box
Installation Instructions
The actuator is mounted to Spirax Sarco ball valves via the BVL_X coupling assembly. All mounting screws are stainless steel to ensure connection strength and corrosion resistance. Solenoid valves and limit switch boxes can be selected according to actual control requirements. Installation location should allow easy operation and maintenance, and comply with relevant safety regulations.
Selection Guide
Selection Principles
When selecting BVA300 series actuators, refer to the selection tables below based on the matching Spirax Sarco ball valve model, operating pressure (3/4/5/6 bar g), and action type (double-acting/single-acting) to determine the appropriate actuator model and coupling model. For valves not listed in the tables, please contact Spirax Sarco for selection support.
Selection Tables for Three-Piece Ball Valves
1. M10Vi ISO, M10Si ISO and M10Ti ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 300X | 310S/4 | 300X |
| ½" RB - ⅜" FB | 310D | 300X | 310S/4 | 300X |
| ¾" RB - ½" FB | 310D | 300X | 315S/8 | 300X |
| 1" RB - ¾" FB | 315D | 302X | 320S/8 | 303X |
| 1¼" RB - 1" FB | 320D | 311X | 325S/8 | 311X |
| 1½" RB - 1¼" FB | 330D | 305X | 340S/8 | 316X |
| 2" RB - 1½" FB | 330D | 306X | 340S/8 | 307X |
| 2½" RB - 2" FB | 335D | 309X | 340S/8 | 309X |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 300X | 310S/6 | 300X |
| ½" RB - ⅜" FB | 310D | 300X | 310S/6 | 300X |
| ¾" RB - ½" FB | 310D | 300X | 315S/10 | 300X |
| 1" RB - ¾" FB | 315D | 302X | 320S/10 | 303X |
| 1¼" RB - 1" FB | 315D | 310X | 320S/10 | 311X |
| 1½" RB - 1¼" FB | 325D | 305X | 335S/10 | 316X |
| 2" RB - 1½" FB | 325D | 306X | 335S/10 | 307X |
| 2½" RB - 2" FB | 330D | 308X | 340S/10 | 309X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 300X | 310S/6 | 300X |
| ½" RB - ⅜" FB | 310D | 300X | 310S/6 | 300X |
| ¾" RB - ½" FB | 310D | 300X | 310S/6 | 300X |
| 1" RB - ¾" FB | 315D | 302X | 320S/12 | 303X |
| 1¼" RB - 1" FB | 315D | 310X | 320S/12 | 311X |
| 1½" RB - 1¼" FB | 320D | 305X | 330S/12 | 305X |
| 2" RB - 1½" FB | 325D | 306X | 335S/12 | 307X |
| 2½" RB - 2" FB | 325D | 308X | 335S/12 | 309X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 300X | 310S/8 | 300X |
| ½" RB - ⅜" FB | 310D | 300X | 310S/8 | 300X |
| ¾" RB - ½" FB | 310D | 300X | 310S/8 | 300X |
| 1" RB - ¾" FB | 310D | 302X | 315S/14 | 302X |
| 1¼" RB - 1" FB | 315D | 310X | 320S/14 | 311X |
| 1½" RB - 1¼" FB | 320D | 305X | 330S/14 | 305X |
| 2" RB - 1½" FB | 320D | 306X | 330S/14 | 306X |
| 2½" RB - 2" FB | 325D | 308X | 335S/14 | 309X |
*Note: A and B represent the maximum dimensions when each valve is installed with the maximum recommended actuator.
2. M10Hi ISO and M10HTi ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 315D | 490X | 320S/8 | 491X |
| ½" RB - ⅜" FB | 315D | 490X | 320S/8 | 491X |
| ¾" RB - ½" FB | 315D | 490X | 325S/8 | 491X |
| 1" RB - ¾" FB | 320D | 493X | 330S/8 | 493X |
| 1¼" RB - 1" FB | 325D | 494X | 340S/8 | 495X |
| 1½" RB - 1¼" FB | 330D | 496X | 340S/8 | 497X |
| 2" RB - 1½" FB | 330D | 498X | 340S/8 | 499X |
| 2½" RB - 2" FB | 335D | 502X | 345S/8 | 503X |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 490X | 320S/10 | 491X |
| ½" RB - ⅜" FB | 310D | 490X | 320S/10 | 491X |
| ¾" RB - ½" FB | 315D | 490X | 320S/10 | 491X |
| 1" RB - ¾" FB | 320D | 493X | 325S/10 | 493X |
| 1¼" RB - 1" FB | 325D | 494X | 335S/10 | 495X |
| 1½" RB - 1¼" FB | 325D | 496X | 335S/10 | 497X |
| 2" RB - 1½" FB | 330D | 498X | 340S/10 | 499X |
| 2½" RB - 2" FB | 335D | 502X | 340S/10 | 502X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 490X | 315S/12 | 490X |
| ½" RB - ⅜" FB | 310D | 490X | 315S/12 | 490X |
| ¾" RB - ½" FB | 315D | 490X | 320S/12 | 491X |
| 1" RB - ¾" FB | 315D | 492X | 325S/12 | 493X |
| 1¼" RB - 1" FB | 320D | 494X | 330S/12 | 494X |
| 1½" RB - 1¼" FB | 325D | 496X | 335S/12 | 497X |
| 2" RB - 1½" FB | 325D | 498X | 335S/12 | 499X |
| 2½" RB - 2" FB | 330D | 505X | 335S/12 | 502X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 490X | 315S/14 | 490X |
| ½" RB - ⅜" FB | 310D | 490X | 315S/14 | 490X |
| ¾" RB - ½" FB | 310D | 490X | 320S/14 | 491X |
| 1" RB - ¾" FB | 315D | 492X | 320S/14 | 493X |
| 1¼" RB - 1" FB | 320D | 494X | 330S/14 | 494X |
| 1½" RB - 1¼" FB | 320D | 496X | 330S/14 | 496X |
| 2" RB - 1½" FB | 325D | 498X | 335S/14 | 499X |
| 2½" RB - 2" FB | 325D | 505X | 335S/14 | 502X |
*Note: A and B represent the maximum dimensions when each valve is installed with the maximum recommended actuator.
3. M10HPi ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 315D | 490X | 320S/8 | 491X |
| ½" RB - ⅜" FB | 315D | 490X | 320S/8 | 491X |
| ¾" RB - ½" FB | 315D | 490X | 325S/8 | 491X |
| 1" RB - ¾" FB | 320D | 493X | 330S/8 | 493X |
| 1¼" RB - 1" FB | 325D | 494X | 340S/8 | 495X |
| 1½" RB - 1¼" FB | 330D | 496X | 340S/8 | 497X |
| 2" RB - 1½" FB | 335D | 499X | 345S/8 | 500X |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 490X | 320S/10 | 491X |
| ½" RB - ⅜" FB | 310D | 490X | 320S/10 | 491X |
| ¾" RB - ½" FB | 315D | 490X | 320S/10 | 491X |
| 1" RB - ¾" FB | 320D | 493X | 325S/10 | 493X |
| 1¼" RB - 1" FB | 325D | 494X | 335S/10 | 495X |
| 1½" RB - 1¼" FB | 325D | 496X | 335S/10 | 497X |
| 2" RB - 1½" FB | 335D | 499X | 340S/10 | 499X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 490X | 315S/12 | 490X |
| ½" RB - ⅜" FB | 310D | 490X | 315S/12 | 490X |
| ¾" RB - ½" FB | 315D | 490X | 320S/12 | 491X |
| 1" RB - ¾" FB | 315D | 492X | 325S/12 | 493X |
| 1¼" RB - 1" FB | 320D | 494X | 330S/12 | 494X |
| 1½" RB - 1¼" FB | 325D | 496X | 335S/12 | 497X |
| 2" RB - 1½" FB | 330D | 498X | 340S/12 | 499X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 490X | 315S/14 | 490X |
| ½" RB - ⅜" FB | 310D | 490X | 315S/14 | 490X |
| ¾" RB - ½" FB | 310D | 490X | 320S/14 | 491X |
| 1" RB - ¾" FB | 315D | 492X | 320S/14 | 493X |
| 1¼" RB - 1" FB | 320D | 494X | 330S/14 | 494X |
| 1½" RB - 1¼" FB | 320D | 496X | 330S/14 | 496X |
| 2" RB - 1½" FB | 330D | 498X | 340S/14 | 499X |
4. M10Pi ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 490X | 310S/4 | 490X |
| ½" RB - ⅜" FB | 310D | 490X | 310S/4 | 490X |
| ¾" RB - ½" FB | 310D | 490X | 315S/8 | 490X |
| 1" RB - ¾" FB | 315D | 492X | 320S/8 | 493X |
| 1¼" RB - 1" FB | 320D | 494X | 325S/8 | 494X |
| 1½" RB - 1¼" FB | 330D | 496X | 340S/8 | 497X |
| 2" RB - 1½" FB | 330D | 498X | 340S/8 | 499X |
| 2½" RB - 2" FB | 330D | 505X | 340S/8 | 502X |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 490X | 310S/6 | 490X |
| ½" RB - ⅜" FB | 310D | 490X | 310S/6 | 490X |
| ¾" RB - ½" FB | 310D | 490X | 315S/10 | 490X |
| 1" RB - ¾" FB | 315D | 492X | 320S/10 | 493X |
| 1¼" RB - 1" FB | 315D | 504X | 320S/10 | 494X |
| 1½" RB - 1¼" FB | 325D | 496X | 335S/10 | 497X |
| 2" RB - 1½" FB | 325D | 498X | 335S/10 | 499X |
| 2½" RB - 2" FB | 330D | 505X | 340S/10 | 502X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 490X | 310S/6 | 490X |
| ½" RB - ⅜" FB | 310D | 490X | 310S/6 | 490X |
| ¾" RB - ½" FB | 310D | 490X | 310S/6 | 490X |
| 1" RB - ¾" FB | 315D | 492X | 320S/12 | 493X |
| 1¼" RB - 1" FB | 315D | 504X | 320S/12 | 494X |
| 1½" RB - 1¼" FB | 320D | 496X | 330S/12 | 496X |
| 2" RB - 1½" FB | 325D | 498X | 335S/12 | 499X |
| 2½" RB - 2" FB | 325D | 505X | 335S/12 | 502X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ¼" RB - ⅜" RB | 310D | 490X | 310S/8 | 490X |
| ½" RB - ⅜" FB | 310D | 490X | 310S/8 | 490X |
| ¾" RB - ½" FB | 310D | 490X | 310S/8 | 490X |
| 1" RB - ¾" FB | 310D | 492X | 315S/14 | 492X |
| 1¼" RB - 1" FB | 315D | 504X | 320S/14 | 494X |
| 1½" RB - 1¼" FB | 320D | 496X | 330S/14 | 496X |
| 2" RB - 1½" FB | 320D | 498X | 330S/14 | 498X |
| 2½" RB - 2" FB | 325D | 505X | 335S/14 | 502X |
*Note: A and B represent the maximum dimensions when each valve is installed with the maximum recommended actuator.
5. M70i ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ½" | 315D | 300X | 320S/8 | 301X |
| ¾" | 315D | 300X | 325S/8 | 301X |
| 1" | 320D | 303X | 325S/8 | 303X |
| 1½" | 330D | 306X | 340S/8 | 307X |
| 2" | 335D | 309X | 345S/8 | 318X |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ½" | 315D | 300X | 320S/10 | 301X |
| ¾" | 315D | 300X | 320S/10 | 301X |
| 1" | 315D | 302X | 325S/10 | 303X |
| 1½" | 330D | 306X | 340S/10 | 307X |
| 2" | 335D | 309X | 340S/10 | 309X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ½" | 310D | 300X | 320S/12 | 301X |
| ¾" | 315D | 300X | 320S/12 | 301X |
| 1" | 315D | 302X | 320S/12 | 303X |
| 1½" | 325D | 306X | 335S/12 | 307X |
| 2" | 330D | 308X | 340S/12 | 309X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ½" | 310D | 300X | 315S/14 | 300X |
| ¾" | 310D | 300X | 320S/14 | 301X |
| 1" | 315D | 302X | 320S/14 | 303X |
| 1½" | 325D | 306X | 335S/14 | 307X |
| 2" | 330D | 308X | 335S/14 | 309X |
6. M80i ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2½" | 335D | 481X | 345S/8 | 482X |
| 3" | 340D | 481X | 345S/8 | 482X |
| 4" | 340D | 484X | 350S/8 | 486X |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2½" | 335D | 481X | 340S/10 | 481X |
| 3" | 335D | 481X | 345S/10 | 482X |
| 4" | 335D | 484X | 345S/10 | 485X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2½" | 330D | 480X | 340S/12 | 481X |
| 3" | 335D | 481X | 340S/12 | 481X |
| 4" | 335D | 484X | 345S/12 | 485X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2½" | 330D | 480X | 340S/14 | 481X |
| 3" | 330D | 480X | 340S/14 | 481X |
| 4" | 335D | 484X | 340S/14 | 484X |
*Note: A and B represent the maximum dimensions when each valve is installed with the maximum recommended actuator.
Selection Tables for Two-Piece Ball Valves
1. M31V ISO and M31S ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2" | 325D | 400X | 335S/8 | 401X |
| 2½" | 330D | 402X | 340S/8 | 403X |
| 3" | 330D | 402X | 345S/8 | 404X |
| 4" | 345D | 406X | 355S/8 | 407X |
| 6" | 355D | 409X | 365S/8 | 414X |
| 8" | 360D | 413X | - | - |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2" | 320D | 400X | 330S/10 | 400X |
| 2½" | 325D | 402X | 335S/10 | 403X |
| 3" | 330D | 402X | 340S/10 | 403X |
| 4" | 340D | 405X | 350S/10 | 407X |
| 6" | 355D | 409X | 360S/10 | 410X |
| 8" | 355D | 412X | 360S/12 | 413X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2" | 320D | 400X | 330S/12 | 400X |
| 2½" | 320D | 402X | 330S/12 | 402X |
| 3" | 325D | 402X | 335S/12 | 403X |
| 4" | 335D | 405X | 350S/12 | 407X |
| 6" | 350D | 409X | 360S/12 | 410X |
| 8" | 355D | 412X | 360S/12 | 413X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2" | 320D | 400X | 330S/14 | 400X |
| 2½" | 320D | 402X | 330S/14 | 402X |
| 3" | 325D | 402X | 335S/14 | 403X |
| 4" | 335D | 405X | 345S/14 | 406X |
| 6" | 350D | 409X | 360S/14 | 410X |
| 8" | 350D | 412X | 360S/14 | 413X |
*Note: A and B represent the maximum dimensions when each valve is installed with the maximum recommended actuator.
2. M33V ISO, M33S ISO, M33F ISO and M33T ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2" | 330D | 510X | 340S/8 | 511X |
| 2½" | 335D | 513X | 345S/8 | 514X |
| 3" | 340D | 513X | 350S/8 | 526X |
| 4" | 350D | 517X | 360S/8 | 527X |
| 6" | 360D | 520X | 365S/8 | 521X |
| 8" | 365D | 525X | - | - |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2" | 330D | 510X | 335S/10 | 511X |
| 2½" | 335D | 513X | 340S/10 | 513X |
| 3" | 335D | 513X | 345S/10 | 514X |
| 4" | 345D | 516X | 355S/10 | 517X |
| 6" | 355D | 519X | 360S/10 | 520X |
| 8" | 360D | 524X | 365S/10 | 525X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2" | 325D | 510X | 335S/12 | 511X |
| 2½" | 330D | 512X | 340S/12 | 513X |
| 3" | 335D | 513X | 340S/12 | 513X |
| 4" | 345D | 516X | 355S/12 | 517X |
| 6" | 350D | 519X | 360S/12 | 520X |
| 8" | 360D | 524X | 365S/12 | 525X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2" | 325D | 510X | 335S/14 | 511X |
| 2½" | 330D | 512X | 335S/14 | 513X |
| 3" | 335D | 513X | 340S/14 | 513X |
| 4" | 345D | 516X | 350S/14 | 517X |
| 6" | 350D | 519X | 360S/14 | 520X |
| 8" | 360D | 524X | 365S/14 | 525X |
*Note: A and B represent the maximum dimensions when each valve is installed with the maximum recommended actuator.
3. M33H ISO and M33HT ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2" | 335D | 511X | 345S/8 | 528X |
| 2½" | 335D | 513X | 345S/8 | 514X |
| 3" | 340D | 513X | 350S/8 | 526X |
| 4" | 350D | 517X | 360S/8 | 527X |
| 6" | 360D | 520X | 365S/8 | 521X |
| 8" | 365D | 525X | - | - |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2" | 330D | 510X | 340S/10 | 511X |
| 2½" | 335D | 513X | 340S/10 | 513X |
| 3" | 335D | 513X | 345S/10 | 514X |
| 4" | 345D | 516X | 355S/10 | 517X |
| 6" | 357D | 520X | 360S/10 | 520X |
| 8" | 360D | 524X | 365S/10 | 525X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2" | 330D | 510X | 340S/12 | 511X |
| 2½" | 330D | 512X | 340S/12 | 513X |
| 3" | 335D | 513X | 345S/12 | 514X |
| 4" | 345D | 516X | 355S/12 | 517X |
| 6" | 355D | 519X | 360S/12 | 520X |
| 8" | 360D | 524X | 365S/12 | 525X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 2" | 325D | 510X | 335S/14 | 511X |
| 2½" | 325D | 512X | 340S/14 | 513X |
| 3" | 335D | 513X | 340S/14 | 513X |
| 4" | 345D | 516X | 350S/14 | 517X |
| 6" | 350D | 519X | 360S/14 | 520X |
| 8" | 360D | 524X | 365S/14 | 525X |
*Note: A and B represent the maximum dimensions when each valve is installed with the maximum recommended actuator.
Selection Tables for One-Piece Ball Valves
1. M21Ti ISO, M21Vi ISO, M21Si ISO, M21Fi ISO, M40Ti ISO, M40Vi ISO, M40Si ISO, M40Fi ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ½" ** | 310D | 300X | 320S/8 | 301X |
| ¾" ** | 310D | 300X | 320S/8 | 301X |
| 1" | 315D | 302X | 320S/8 | 303X |
| 1¼" | 320D | 494X | 325S/8 | 494X |
| 1½" | 320D | 306X | 330S/8 | 306X |
| 2" | 320D | 306X | 330S/8 | 306X |
| 2½" | 330D | 510X | 340S/8 | 511X |
| 3" | 335D | 513X | 345S/8 | 514X |
| 4" | 340D | 513X | 350S/8 | 526X |
| 6" | 345D | 516X | 350S/8 | 517X |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ½" ** | 310D | 300X | 315S/10 | 300X |
| ¾" ** | 310D | 300X | 315S/10 | 300X |
| 1" | 315D | 302X | 320S/10 | 303X |
| 1¼" | 315D | 504X | 320S/10 | 494X |
| 1½" | 320D | 306X | 325S/10 | 306X |
| 2" | 320D | 306X | 330S/10 | 306X |
| 2½" | 325D | 510X | 335S/10 | 511X |
| 3" | 335D | 513X | 340S/10 | 513X |
| 4" | 335D | 513X | 345S/10 | 514X |
| 6" | 340D | 515X | 350S/10 | 517X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ½" ** | 310D | 300X | 315S/12 | 300X |
| ¾" ** | 310D | 300X | 315S/12 | 300X |
| 1" | 315D | 302X | 320S/12 | 303X |
| 1¼" | 315D | 504X | 320S/12 | 494X |
| 1½" | 315D | 506X | 325S/12 | 306X |
| 2" | 320D | 306X | 325S/12 | 306X |
| 2½" | 325D | 510X | 335S/12 | 511X |
| 3" | 330D | 512X | 340S/12 | 513X |
| 4" | 335D | 513X | 340S/12 | 513X |
| 6" | 340D | 515X | 345S/12 | 516X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ½" ** | 310D | 300X | 315S/14 | 300X |
| ¾" ** | 310D | 300X | 315S/14 | 300X |
| 1" | 310D | 302X | 315S/14 | 302X |
| 1¼" | 315D | 504X | 320S/14 | 494X |
| 1½" | 315D | 506X | 325S/14 | 306X |
| 2" | 315D | 506X | 325S/14 | 306X |
| 2½" | 320D | 510X | 330S/14 | 510X |
| 3" | 330D | 512X | 335S/14 | 513X |
| 4" | 335D | 513X | 340S/14 | 513X |
| 6" | 335D | 515X | 345S/14 | 516X |
*Note: A and B represent the maximum dimensions when each valve is installed with the maximum recommended actuator.
**Note: ½" and ¾" apply to M21i only.
2. M21Hi ISO, M21HTi ISO, M40Hi ISO, M40HTi ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ½" ** | 315D | 300X | 325S/8 | 301X |
| ¾" ** | 315D | 300X | 325S/8 | 301X |
| 1" | 320D | 303X | 325S/8 | 303X |
| 1¼" | 320D | 494X | 330S/8 | 494X |
| 1½" | 325D | 306X | 340S/8 | 307X |
| 2" | 330D | 306X | 340S/8 | 307X |
| 2½" | 335D | 511X | 345S/8 | 528X |
| 3" | 335D | 513X | 345S/8 | 514X |
| 4" | 340D | 513X | 350S/8 | 526X |
| 6" | 350D | 517X | 360S/8 | 527X |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ½" ** | 315D | 300X | 320S/10 | 301X |
| ¾" ** | 315D | 300X | 320S/10 | 301X |
| 1" | 315D | 302X | 325S/10 | 303X |
| 1¼" | 320D | 494X | 325S/10 | 494X |
| 1½" | 325D | 306X | 335S/10 | 307X |
| 2" | 325D | 306X | 335S/10 | 307X |
| 2½" | 335D | 511X | 345S/10 | 528X |
| 3" | 335D | 513X | 345S/10 | 514X |
| 4" | 340D | 513X | 350S/10 | 526X |
| 6" | 350D | 517X | 357S/10 | 527X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ½" ** | 315D | 300X | 320S/12 | 301X |
| ¾" ** | 315D | 300X | 320S/12 | 301X |
| 1" | 315D | 302X | 320S/12 | 303X |
| 1¼" | 315D | 504X | 325S/12 | 494X |
| 1½" | 320D | 306X | 330S/12 | 306X |
| 2" | 325D | 306X | 335S/12 | 307X |
| 2½" | 330D | 510X | 340S/12 | 511X |
| 3" | 330D | 512X | 345S/12 | 514X |
| 4" | 335D | 513X | 345S/12 | 514X |
| 6" | 345D | 516X | 357S/12 | 527X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| ½" ** | 310D | 300X | 320S/14 | 301X |
| ¾" ** | 310D | 300X | 320S/14 | 301X |
| 1" | 315D | 302X | 320S/14 | 303X |
| 1¼" | 315D | 504X | 325S/14 | 494X |
| 1½" | 320D | 306X | 330S/14 | 306X |
| 2" | 320D | 306X | 330S/14 | 306X |
| 2½" | 330D | 510X | 340S/14 | 511X |
| 3" | 330D | 512X | 340S/14 | 513X |
| 4" | 335D | 513X | 345S/14 | 514X |
| 6" | 345D | 516X | 355S/14 | 517X |
*Note: A and B represent the maximum dimensions when each valve is installed with the maximum recommended actuator.
**Note: ½" and ¾" apply to M21i only.
3. M45i ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 1" | 320D | 303X | 325/S8 | 303X |
| 1¼" | 320D | 494X | 330/S8 | 494X |
| 1½" | 325D | 306X | 340/S8 | 307X |
| 2" | 330D | 306X | 340/S8 | 307X |
| 2½" | 335D | 511X | 345/S8 | 528X |
| 3" | 340D | 513X | 345/S8 | 514X |
| 4" | 345D | 514X | 355/S8 | 526X |
| 6" | 345D | 516X | 360/S8 | 527X |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 1" | 315D | 302X | 325/S10 | 303X |
| 1¼" | 320D | 494X | 330/S10 | 494X |
| 1½" | 325D | 306X | 330/S10 | 306X |
| 2" | 325D | 306X | 335/S10 | 307X |
| 2½" | 330D | 510X | 340/S10 | 511X |
| 3" | 335D | 513X | 345/S10 | 514X |
| 4" | 340D | 513X | 350/S10 | 526X |
| 6" | 345D | 516X | 355/S10 | 517X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 1" | 315D | 302X | 320/S12 | 303X |
| 1¼" | 320D | 494X | 325/S12 | 494X |
| 1½" | 320D | 306X | 330/S12 | 306X |
| 2" | 325D | 306X | 335/S12 | 307X |
| 2½" | 330D | 510X | 340/S12 | 511X |
| 3" | 335D | 513X | 340/S12 | 513X |
| 4" | 335D | 513X | 345/S12 | 514X |
| 6" | 340D | 515X | 355/S12 | 517X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 1" | 315D | 302X | 320/S14 | 303X |
| 1¼" | 315D | 504X | 325/S14 | 494X |
| 1½" | 320D | 306X | 330/S14 | 306X |
| 2" | 320D | 306X | 330/S14 | 306X |
| 2½" | 325D | 510X | 335/S14 | 511X |
| 3" | 330D | 512X | 340/S14 | 513X |
| 4" | 335D | 513X | 345/S14 | 514X |
| 6" | 340D | 515X | 350/S14 | 517X |
*Note: A and B represent the maximum dimensions when each valve is installed with the maximum recommended actuator.
4. M21ViJ ISO Ball Valves
Actuator Operating Pressure 3 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 1½" | 320D | 306X | 330S/8 | 306X |
| 2" | 325D | 306X | 330S/8 | 306X |
| 2½" | 330D | 510X | 340S/8 | 511X |
| 3" | 335D | 513X | 345S/8 | 514X |
| 4" | 340D | 513X | 350S/8 | 526X |
Actuator Operating Pressure 4 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 1½" | 320D | 306X | 325S/10 | 306X |
| 2" | 320D | 306X | 330S/10 | 306X |
| 2½" | 330D | 510X | 335S/10 | 511X |
| 3" | 335D | 513X | 345S/10 | 514X |
| 4" | 340D | 513X | 345S/10 | 514X |
Actuator Operating Pressure 5 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 1½" | 320D | 306X | 325S/12 | 306X |
| 2" | 320D | 306X | 325S/12 | 306X |
| 2½" | 325D | 510X | 335S/12 | 511X |
| 3" | 335D | 513X | 340S/12 | 513X |
| 4" | 335D | 513X | 345S/12 | 514X |
Actuator Operating Pressure 6 bar g
| DN | Double-Acting BVA | Double-Acting BVL | Single-Acting BVA | Single-Acting BVL |
|---|---|---|---|---|
| 1½" | 320D | 306X | 325S/14 | 306X |
| 2" | 320D | 306X | 325S/14 | 306X |
| 2½" | 325D | 510X | 335S/14 | 511X |
| 3" | 330D | 512X | 340S/14 | 513X |
| 4" | 335D | 513X | 340S/14 | 513X |
*Note: A and B represent the maximum dimensions when each valve is installed with the maximum recommended actuator.
Valve Installation Dimensions Reference
| Valve Series | DN Size | A (mm) | B (mm) |
|---|---|---|---|
| M10Vi/Si/Ti ISO | 1/4" | 218 | 122 |
| M10Vi/Si/Ti ISO | 3/8" | 218 | 122 |
| M10Vi/Si/Ti ISO | 1/2" | 237 | 122 |
| M10Vi/Si/Ti ISO | 3/4" | 261 | 124 |
| M10Vi/Si/Ti ISO | 1" | 276 | 129 |
| M10Vi/Si/Ti ISO | 11/4" | 333 | 134 |
| M10Vi/Si/Ti ISO | 11/2" | 336 | 137 |
| M10Vi/Si/Ti ISO | 2" | 342 | 143 |
| M10Vi/Si/Ti ISO | 21/2" | 356 | 157 |
| M10Hi/HTi ISO | 1/4" | 259 | 122 |
| M10Hi/HTi ISO | 3/8" | 259 | 122 |
| M10Hi/HTi ISO | 1/2" | 259 | 122 |
| M10Hi/HTi ISO | 3/4" | 271 | 124 |
| M10Hi/HTi ISO | 1" | 294 | 129 |
| M10Hi/HTi ISO | 11/4" | 333 | 134 |
| M10Hi/HTi ISO | 11/2" | 336 | 137 |
| M10Hi/HTi ISO | 2" | 342 | 143 |
| M10HPi ISO | 1/4" | 259 | 122 |
| M10HPi ISO | 3/8" | 259 | 122 |
| M10HPi ISO | 1/2" | 269 | 122 |
| M10HPi ISO | 3/4" | 289 | 124 |
| M10HPi ISO | 1" | 311 | 129 |
| M10HPi ISO | 11/4" | 333 | 134 |
| M10HPi ISO | 11/2" | 358 | 137 |
| M10HPi ISO | 2" | 364 | 143 |
| M70i ISO | 1/2" | 259 | 122 |
| M70i ISO | 3/4" | 271 | 124 |
| M70i ISO | 1" | 276 | 129 |
| M70i ISO | 11/2" | 342 | 143 |
| M70i ISO | 2" | 378 | 157 |
| M80i ISO | 21/2" | 407 | 186 |
| M80i ISO | 3" | 434 | 213 |
| M80i ISO | 4" | 499 | 250 |
| M31V/S ISO | 2" | 340 | 158 |
| M31V/S ISO | 21/2" | 371 | 172 |
| M31V/S ISO | 3" | 400 | 179 |
| M31V/S ISO | 4" | 488 | 208 |
| M31V/S ISO | 6" | 747 | 313 |
| M31V/S ISO | 8" | 731 | 348 |
| M33 Series ISO | 2" | 356 | 157 |
| M33 Series ISO | 21/2" | 390 | 169 |
| M33 Series ISO | 3" | 426 | 177 |
| M33 Series ISO | 4" | 647 | 264 |
| M33 Series ISO | 6" | 750 | 316 |
| M33 Series ISO | 8" | 785 | 351 |
Note: A and B represent the maximum dimensions when each valve is installed with the maximum recommended actuator.
Ordering Information
Before Ordering
Before ordering, refer to the selection tables to confirm actuator model, matching ball valve model, operating pressure, action type, and required accessories.
Ordering Example
1x Spirax Sarco BVA320S/8 actuator + 1x MV13 24Vac solenoid valve + 1x BVL303X coupling kit + 1x LSB72 limit switch box
Special Notes

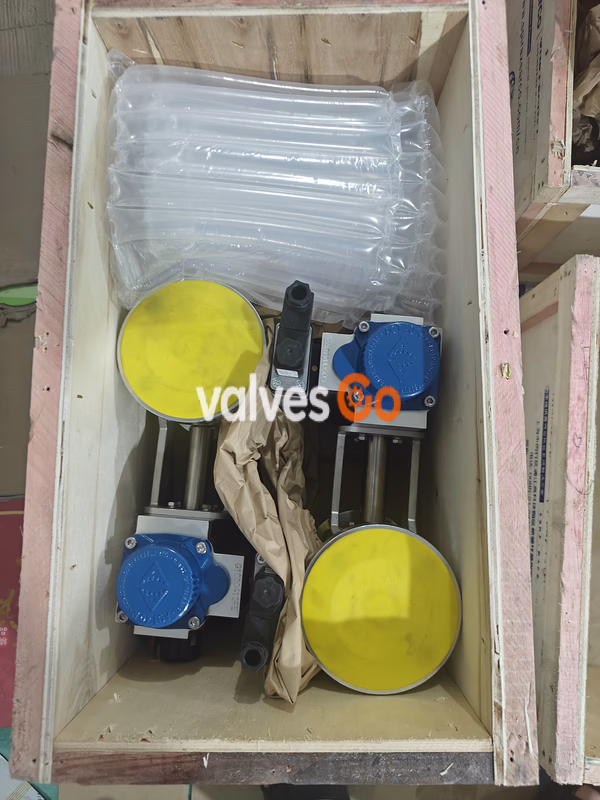

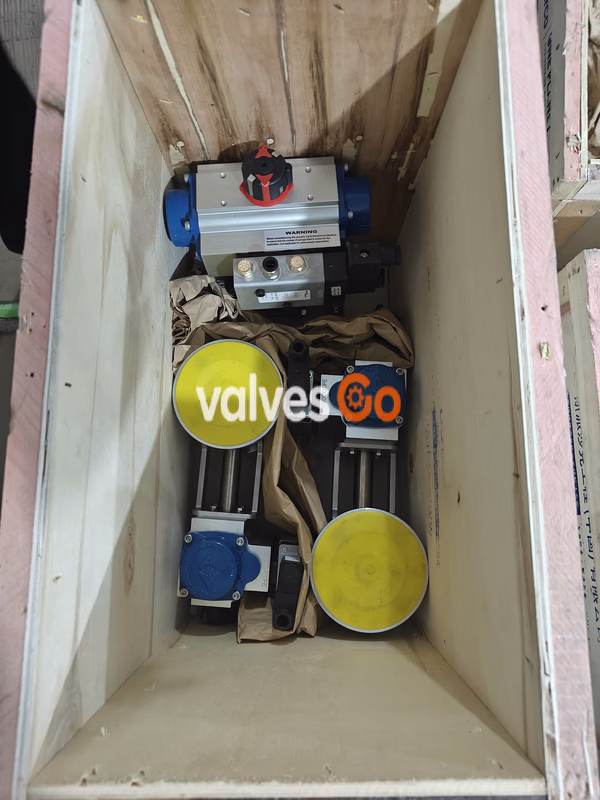

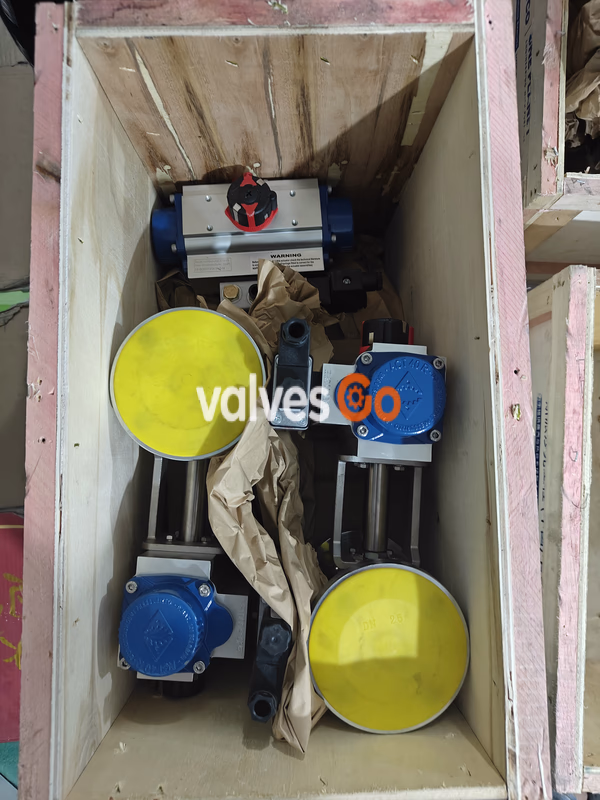

Pneumatic ball valves are shipped fully assembled according to application requirements, no additional assembly required. If ordering actuators or spare parts separately, clearly specify the product model and relevant specifications (such as spare part materials, solenoid valve voltage, etc.).
Spare Parts
Available Spare Parts
| Spare Part Type | Description | Corresponding Part Numbers |
|---|---|---|
| BVA300 Series | O-ring kit (available in NBR, Viton or Silicone) | 7, 8, 11, 12, 16 |
| Repair Kit | Pinion washers | 13, 14, 15 |
| Repair Kit | Other accessories | 5, 6, 10, 17, 18 |
Spare Parts Notes
All spare parts mentioned above are supplied as unified spare parts kits. Other unlisted parts are not available as individual spare parts.
When ordering spare parts, use the description in the "Available Spare Parts" column and specify the corresponding pneumatic actuator model.
Example: Repair kit (with NBR O-rings) for Spirax Sarco BVA320S/08 pneumatic actuator.
Related Products
Explore similar products in our catalog
