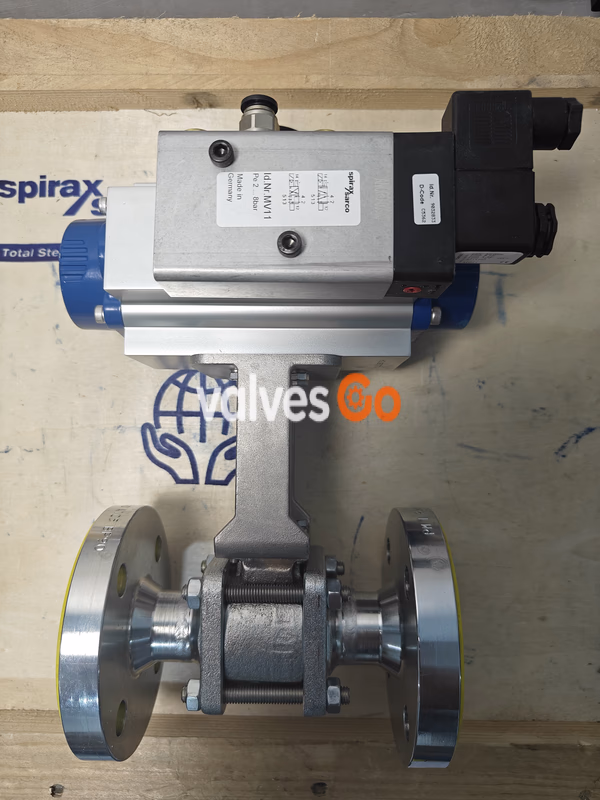

Description

The MV11/MV14 solenoid valve is a pilot-operated NAMUR solenoid valve intended mainly for use together with the Spirax Sarco BVA300 pneumatic actuator. The compact NAMUR interface allows direct mounting on the actuator package.

Technical data

Item	Value
Media	Compressed air
Operating pressure	2-8 bar
Port size	G 1/4
Electrical connection	DIN EN 175301-803 Form B
Flow direction	Fixed 2/3 way or 2/5 way
Ambient / fluid temperature	-15 to +50 degC
Dry air requirement	Air supply must be dry to avoid freezing below 2 degC
Kv	1.2
Voltage	24 VDC, 230 VAC
Power	1.8 W at 24 VDC, 4.3 W at 230 VAC
Protection class	IP65

Materials

Part	Material
Body	Aluminium
Sealing parts	NBR, nitrile rubber

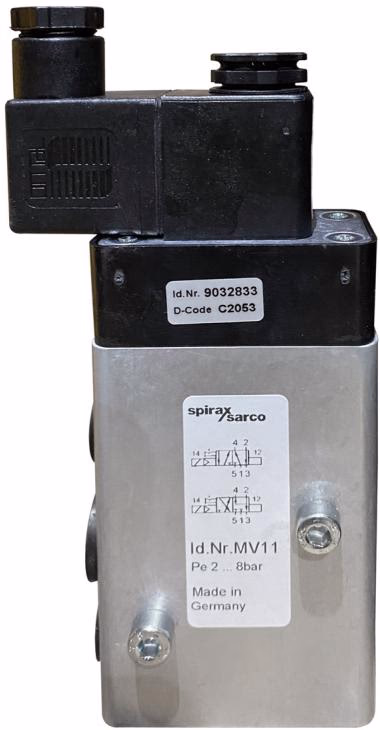

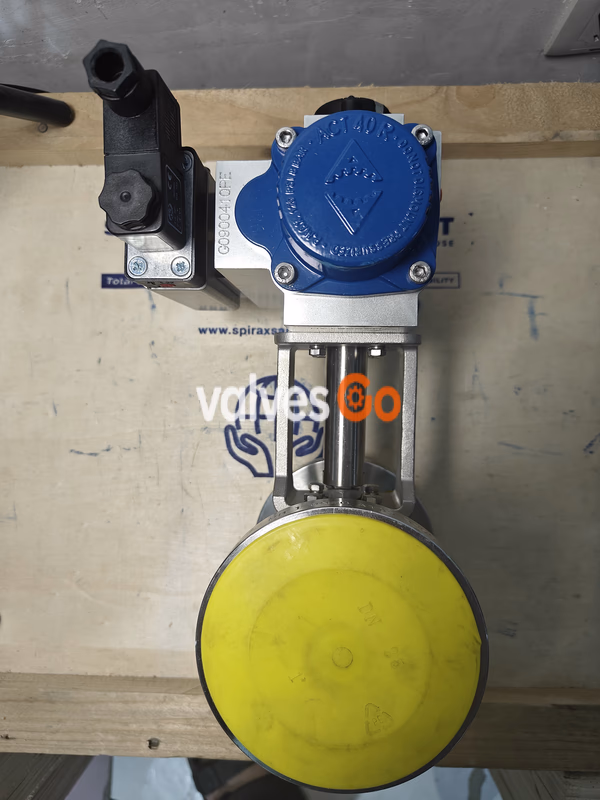

Construction

Dimensions

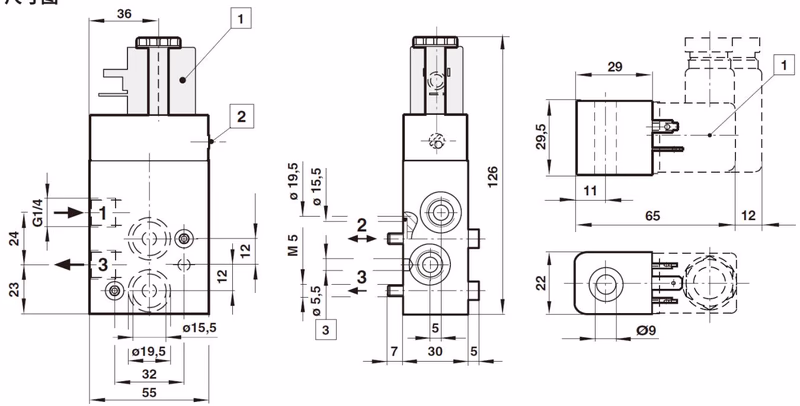

The source literature provides a dimensional drawing for the actuator-mounted assembly.
