All-Stainless Steel Material
Description

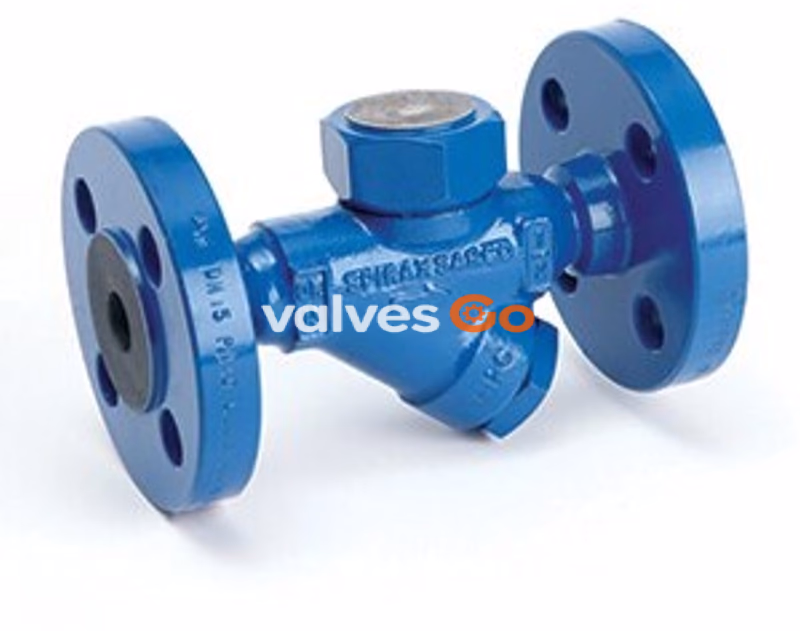

The TD32F is a maintainable medium pressure flanged thermodynamic steam trap which has an integral strainer screen fitted to protect the internals from dirt.
- TD32FLC: Designed specifically for low load applications such as steam mains drainage.
- TD32FA / TD32FALC: Fitted with an anti-air-binding disc to ensure prompt removal of air on start-up.
- TD32FALC: Identified by the groove in the cap.
Standards & Certification
This product fully complies with the requirements of the European Pressure Equipment Directive 2014/68/EU (formerly 97/23/EC). Certification to EN 10204 3.1 is available upon request (must be stated at time of order).
Sizes and Pipe Connections
- Sizes: DN15, DN15LC, DN20, DN20LC, DN25 and DN25LC.
- Connections: Flanged ASME (ANSI) B 16.5 Class 150 and 300, DIN 2501 PN40 and JIS/KS 10, 16 and 20.

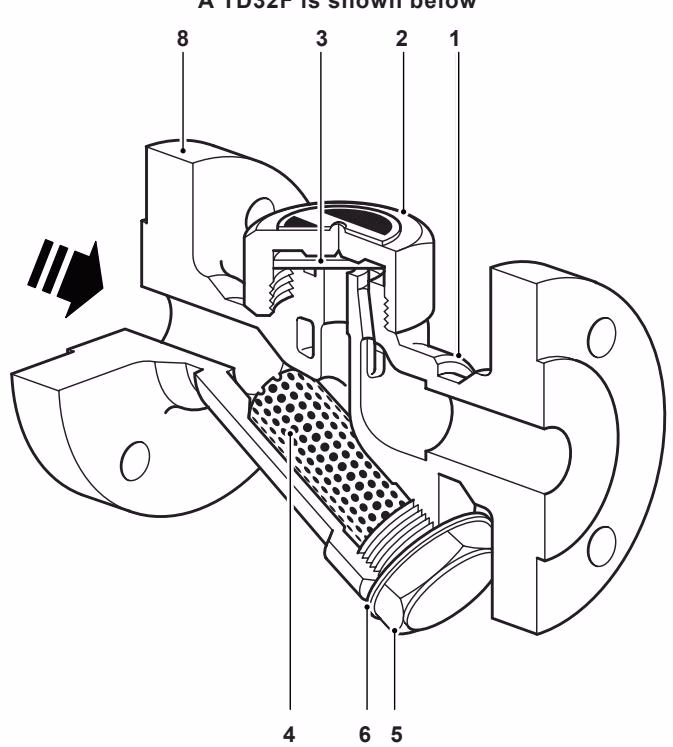

Materials
| No. | Part | Material | Standard |
|---|---|---|---|
| 1 | Body | Stainless steel | ASTM A743 CA-40 |
| 2 | Cap | Stainless steel | AISI 416 |
| 3 | Disc | Stainless steel | BS 1449 420 S45 |
| 4 | Strainer screen* | Stainless steel | ASTM A240 316L |
| 5 | Strainer cap | Stainless steel | AISI 416 |
| 6 | Strainer cap gasket | Stainless steel | BS 1449 304 S16 |
| 7 | Insulating cover** | Aluminium | |
| 8 | Flanges | Steel | DIN 17243 C22.8 Ws 1.0460 |
*Note: TD32FA and FALC are fitted with a 100 mesh stainless steel screen. Other versions have 0.8 mm perforated screen.**Optional extra for the DN15 and DN20 only, to prevent heat loss.

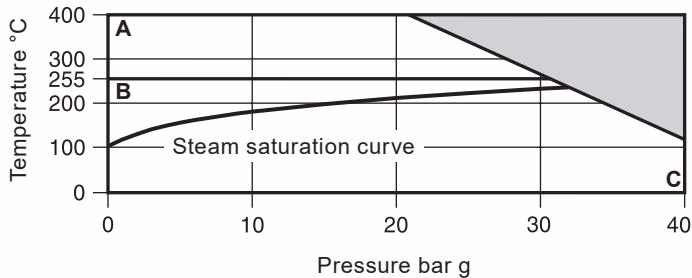

Pressure / Temperature Limits
Operating Range:
- A - B for TD32F and TD32FLC
- C - B for TD32FA and TD32FALC
| Body design condition | PN40 |
|---|---|
| PMA Maximum allowable pressure | 40 bar g |
| TMA Maximum allowable temperature | 400 °C |
| Minimum allowable temperature | 0 °C |
| PMO Max operating pressure (Sat. Steam) | 32 bar g |
| TMO Max operating temp (TD32F/LC) | 400 °C |
| TMO Max operating temp (TD32FA/ALC) | 255 °C |
| Minimum operating temperature | 0 °C |
| Minimum operating pressure | 0.25 bar g |
| PMOB Max operating backpressure | 80% of upstream pressure |
| Cold hydraulic test pressure | 60 bar g |
Product is safe for use under full vacuum conditions.

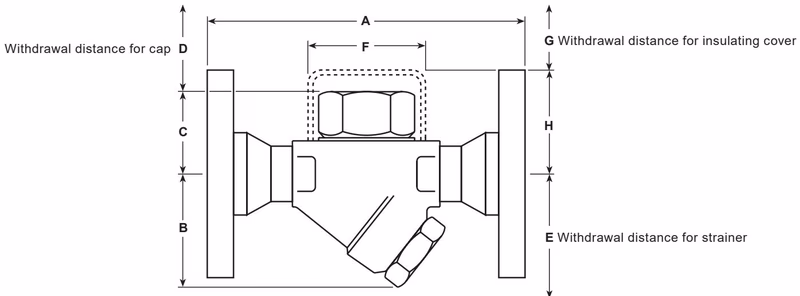

Dimensions and Weights
(approximate) in mm
| Size | A | B | C | D | E | F | G | H | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| DN15 / DN15LC | 150 | 55 | 41 | 40 | 80 | 57 | 38 | 55 | 2.4 |
| DN20 / DN20LC | 150 | 60 | 47 | 40 | 95 | 57 | 38 | 61 | 3.1 |
| DN25 / DN25LC | 160 | 65 | 53 | 40 | 100 | - | - | - | 4.2 |

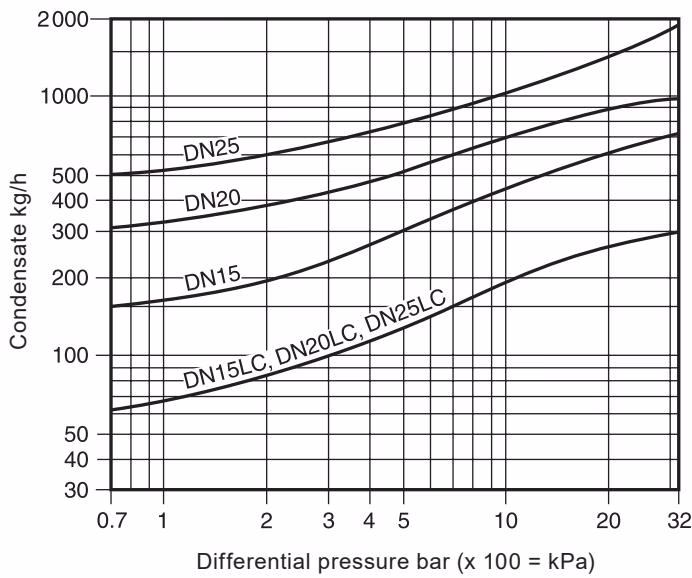

Capacities
Installation and Maintenance
The TD32F is designed for installation with the disc in a horizontal plane with the cover at the top.
- It is recommended that a non-return valve is fitted when discharging condensate into return lines where backpressure is experienced.
- It is also recommended that a diffuser is fitted when discharging to atmosphere.
- For ease of maintenance, fit isolation valves upstream and downstream of the steam trap.
- For full details see the Installation and Maintenance Instructions (IM-P068-26) supplied with the product.
Spare Parts
The spare parts available are shown in heavy outline. Parts drawn in a grey line are not supplied as spares.
| Available spares | Item No. |
|---|---|
| Disc for TD32F or TD32FLC (packet of 3) | 3 |
| Disc, strainer screen and gasket for TD32FA or TD32FALC | 3, 4, 6 |
| Strainer screen and gasket | 4, 6 |
| Strainer cap gasket (packet of 3) | 6 |
| Insulating cover (DN15 and DN20 only) | 7 |
Recommended tightening torques:
| Part | Size | or mm | Torque (N m) |
|---|---|---|---|
| 2 Cap | DN15LC, 20LC, 25LC | 36 A/F | 135 - 150 |
| 2 Cap | DN15 | 41 A/F | 180 - 200 |
| 2 Cap | DN20 | 41 A/F | 180 - 200 |
| 2 Cap | DN25 | 55 A/F | 250 - 275 |
| 5 Strainer cap | - | 32 A/F | 170 - 190 |
