Yoshitake AL-52FS-95 is a home boiler relief valve installed in the plumbing system of a heat exchanger. It is used for small hot water boilers operating at a pressure of less than 100 kPa or 200 kPa. This valve automatically discharges water to protect the machinery when pressure abnormally increases due to water expansion and system trouble.

Features

• A large diaphragm at the pressure receiving section enables it to blow out a large capacity at the first operation. It also makes the commence-to-blow pressure and reseating pressure stable.
• The valve is sanitary, since the wetted part and the mechanical part are separated by the diaphragm.
• A manual lever enables checking the operation and water level. It can also quickly discharge water inside the system.
• The diaphragm is made of heat and water-resistant synthetic rubber.
• The AL-52FS is suitable for electric water heaters, since the valve seat is made of stainless steel.

Specifications

Application	Cold and hot water
Commence-to-blow pressure	95 +4/-6 kPa
Reseating pressure	87 kPa or more
Max. temperature	100°C
Body	Bronze
Diaphragm	Synthetic rubber
Connection	JIS R 3/4 x JIS Rc 1/2 screwed

TIP

Please use AL-24F for big size hot water heat exchangers.

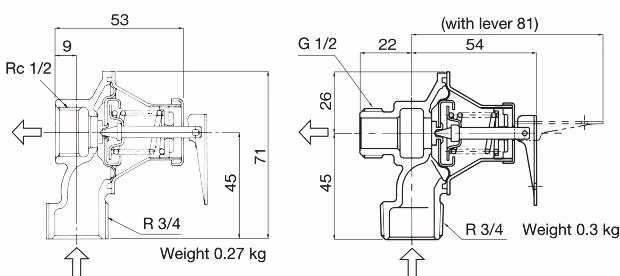

Dimensions and Weights

Maximum Pressure Limits

Water pressure reducing valve	Relief valve for hot water maker	Max. pressure of hot water heat exchanger
80 kPa	95, 97 kPa	100 kPa
85 kPa	97 kPa	100 kPa
120 kPa	190 kPa	200 kPa
150 kPa	190 kPa	200 kPa
170 kPa	190 kPa	200 kPa

WARNING

Using the valves configured for higher pressures (190 kPa) for a simple boiler (100 kPa) is illegal.

Piping Example

Material Specifications

No.	Part Name	Material	Q.TY
1	Valve Body	CAC406	1
2	Valve Seat	SUS304	1
3	O-Ring	FKM	1
4	Diaphragm	FKM	1
5	Diaphragm Seat	SPC	1
6	Diaphragm Presser	C3602	1
7	Valve Stem	C3604	1
8	Spring Seat	SPC	1
9	Spring Cover	SPC	1
10	Cross Recessed Pan Head Machine Screw	S12C	4
11	Adjusting Spring	SWP	1
12	Adjusting Screw	C3604	1
13	Cap	SUS430	1
14	Lever	SUS430	1
15	Split Pin	SUS	1
16	Label	Polyester	1
