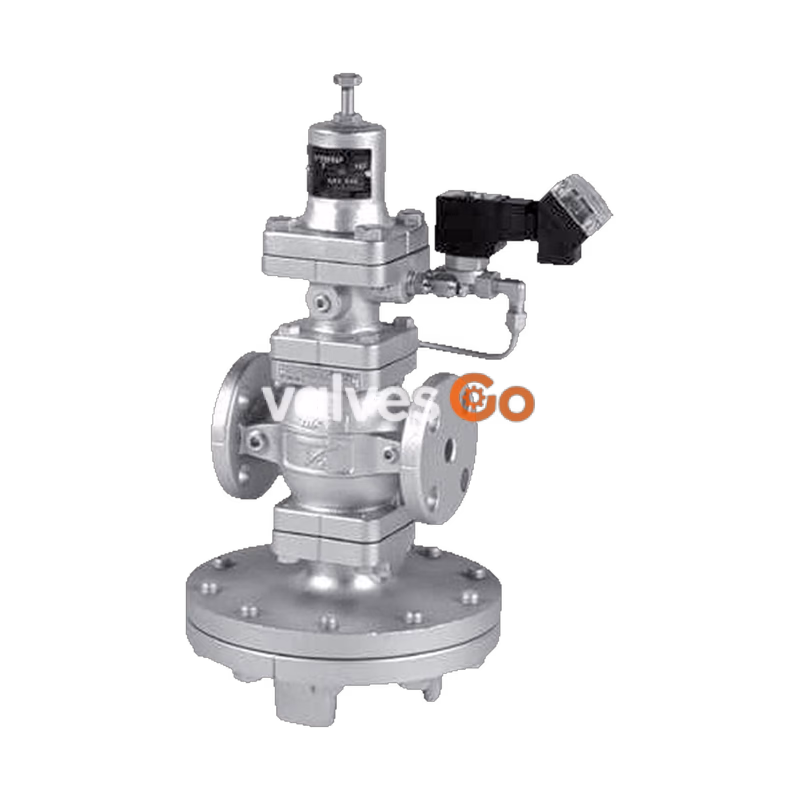

Yoshitake CP-2002 combination valve integrates multiple functions into a single valve to realize space reduction, cost saving, and controllability of plural valves without efforts. It is designed for applications requiring pressure reducing valves, solenoid valves, temperature regulators, or their combination.

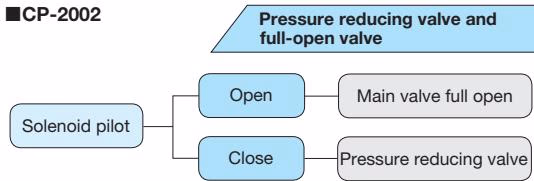

Steam is usually supplied only when required, meaning that steam is controlled as a batch (intermittent) system. Steam ON/OFF is switched by a solenoid valve; however, the rapid opening and closing operation of a solenoid valve causes various problems to other devices, such as pressure reducing valves. To solve such problems, the CP-2002 provides a reliable ON-OFF system.

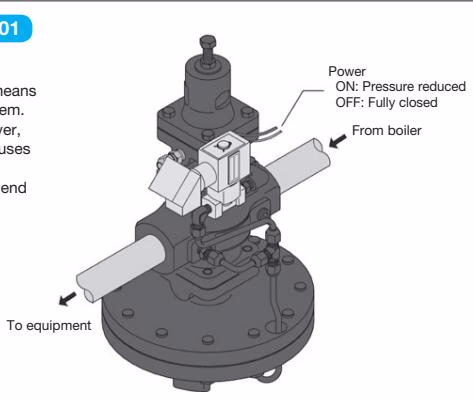

Control Example

State	Pressure
Solenoid valve ON	P1 = 1.0 MPa, P2 = 0.2 MPa
Solenoid valve OFF	P1 = 1.0 MPa, P2 = 0 MPa

Specifications

Specification	Value
Application	Steam
Inlet pressure	0.1 - 1.0 MPa
Reduced pressure	0.02 - 0.15 MPa, 0.1 - 0.85 MPa
Maximum temperature	183℃
Actuation of solenoid valve	Normally closed
Rated voltage	AC 100 V (50/60 Hz), AC 200 V (50/60 Hz) available
Connection	JIS Rc screwed, JIS 10K flanged
Material (Main valve body)	Ductile cast iron
Material (Diaphragm)	Stainless steel
Nominal size	Screwed: 15A - 50A, Flanged: 15A - 100A

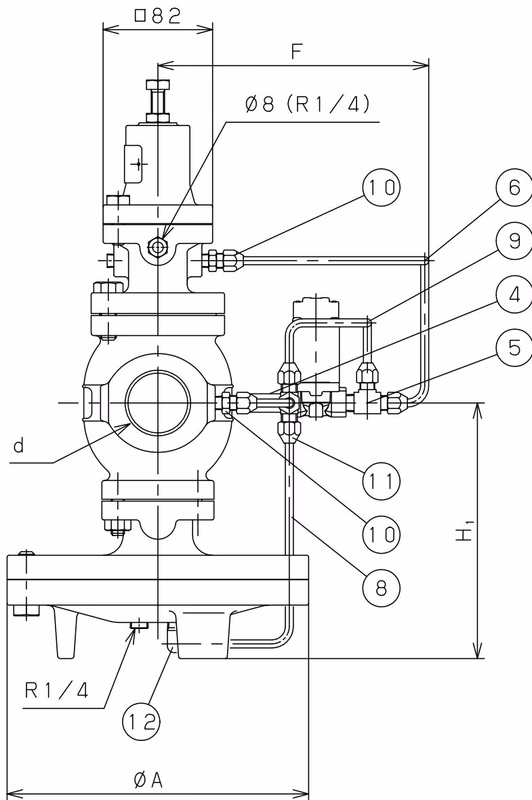

Accessory Parts

No.	Part Name	Material	Qty
14	Sensing Pipe	Copper (C1220)	1
13	Sensing Pipe Joint	Brass (C3604)	2
12	Elbow	Brass (C3771)	1
11	Tee	Brass (C3771)	1
10	Joint	Brass (C3604)	2
9	Pipe D	Copper (C1220)	1
8	Pipe C	Copper (C1220)	1
7	Pipe B	Copper (C1220)	1
6	Pipe A	Copper (C1220)	1
5	Tee Elbow	Brass	1
