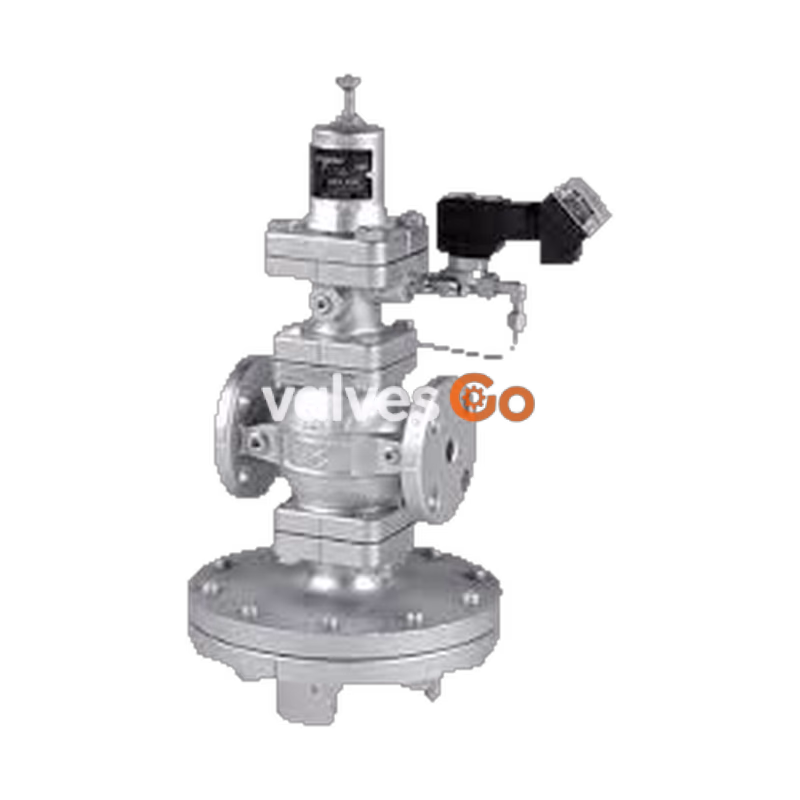

Yoshitake CP-2003 steam combination valve integrates multiple functions into a single unit, realizing space reduction, cost savings, and the simplified control of plural valves. Designed specifically for steam applications, it combines a pressure reducing valve and a solenoid valve.

System Efficiency

In order to increase the performance and efficiency of the system and to save energy, a high-pressure steam line and a low-pressure steam line can be used together. The CP-2003 performs these operations alone, replacing the need for two or more conventional valves.

Quicker Startup Control

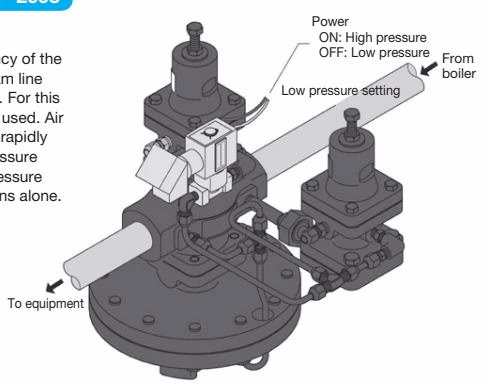

During system startup, air is discharged with low-pressure steam. The system is then rapidly raised to the intended temperature with high-pressure steam, and regular operation begins with low-pressure steam. The CP-2003 controls these stages automatically via its solenoid valve.

Control Example

Actuation	Inlet Pressure ($P_1$)	Reduced Pressure ($P_2$)

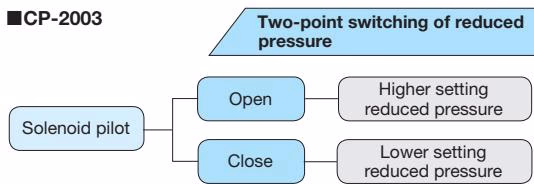

Solenoid valve ON	1.0 MPa	0.5 MPa
Solenoid valve OFF	1.0 MPa	0.2 MPa

Specifications

Specification	Value
Application	Steam
Inlet pressure	0.1 - 1.0 MPa
Reduced pressure	0.02 - 0.15 MPa / 0.1 - 0.85 MPa
Maximum temperature	183°C
Actuation of solenoid valve	Normally closed
Rated voltage	AC 100 V, 50/60 Hz / AC 200 V, 50/60 Hz
Connection	JIS Rc screwed / JIS 10K flanged
Material (Main valve body)	Ductile cast iron
Material (Main valve, valve seat)	Stainless steel
Material (Diaphragm)	Stainless steel
Nominal size	Screwed: 15A-50A / Flanged: 15A-100A
