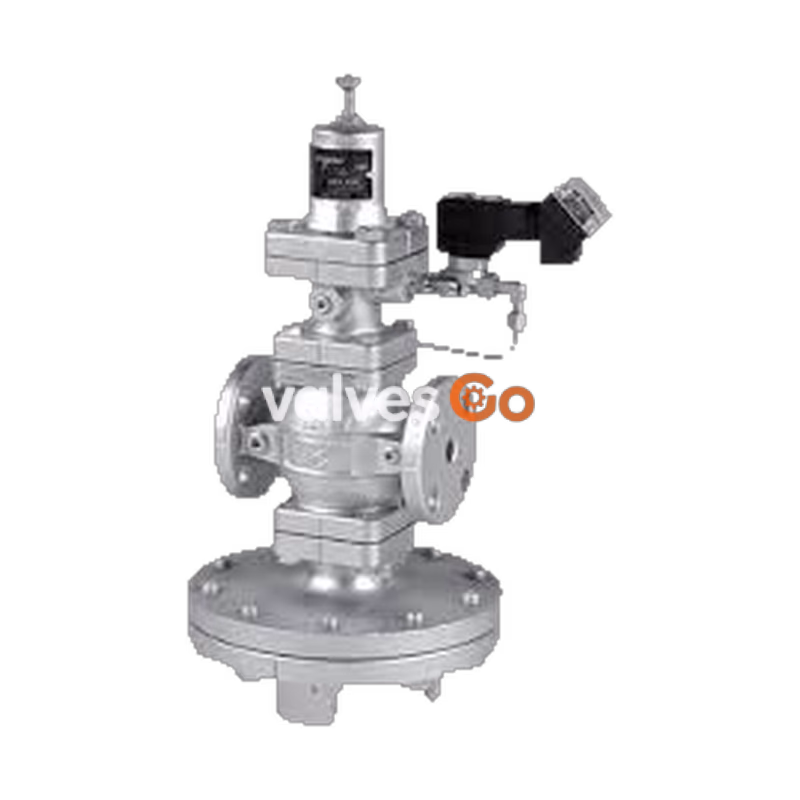

Yoshitake CP-2004 combination valve integrates multiple functions into a single unit, eliminating the need to install separate pressure reducing valves and solenoid valves. Designed for steam applications, it realizes space reduction, cost savings, and simpler piping systems. The CP-2004 model specifically enables the switching of reduced pressure with ON-OFF control.

Specifications

Specification	Value
Application	Steam
Inlet Pressure	0.1 - 1.0 MPa
Reduced Pressure	0.02 - 0.15 MPa, 0.1 - 0.85 MPa
Maximum Temperature	183°C
Actuation of Solenoid Valve	Normally closed
Rated Voltage	AC 100 V (50/60 Hz), AC 200 V (50/60 Hz) available
Connection	JIS Rc screwed, JIS 10K flanged
Main Valve Body Material	Ductile cast iron
Main Valve & Valve Seat Material	Stainless steel
Diaphragm Material	Stainless steel
Nominal Size	Screwed: 15A - 50A, Flanged: 15A - 100A

Control Principle

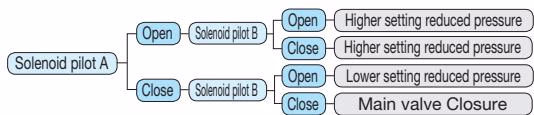

The CP-2004 allows switching of reduced pressure using ON-OFF control through its dual pilot valve system.

Note

The minimum differential pressure across the valve is 15% of the inlet gauge pressure (minimum value: 0.05 MPa). Valve seat leakage is 0.01% or less of the rated flow.

Dimensions and Weights

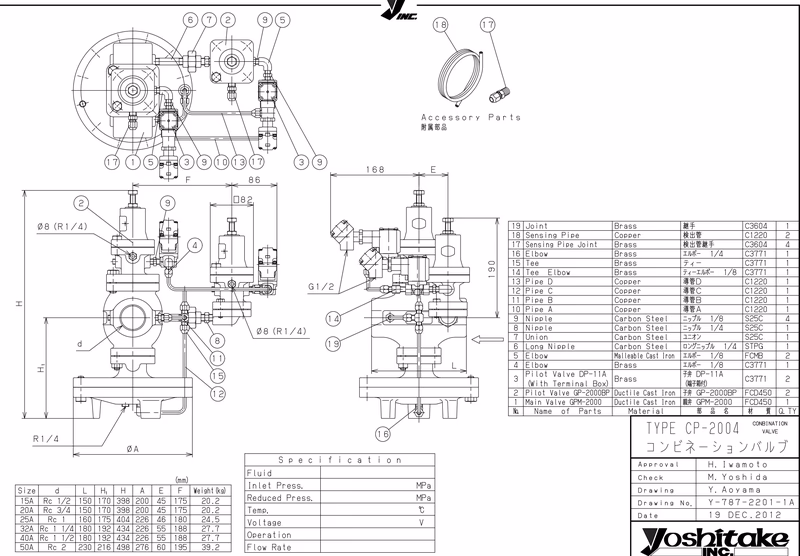

Screwed Type (JIS Rc)

Size	d (Rc)	L (mm)	H1 (mm)	H (mm)	A (mm)	E (mm)	F (mm)	Weight (kg)
15A	1/2	150	170	398	200	45	175	20.2
20A	3/4	150	170	398	200	45	175	20.2
25A	1	160	175	404	226	46	180	24.5
32A	1 1/4	180	192	434	226	55	188	27.7
40A	1 1/2	180	192	434	226	55	188	27.7
50A	2	230	216	498	276	60	195	39.2

Flanged Type (JIS 10K FF)

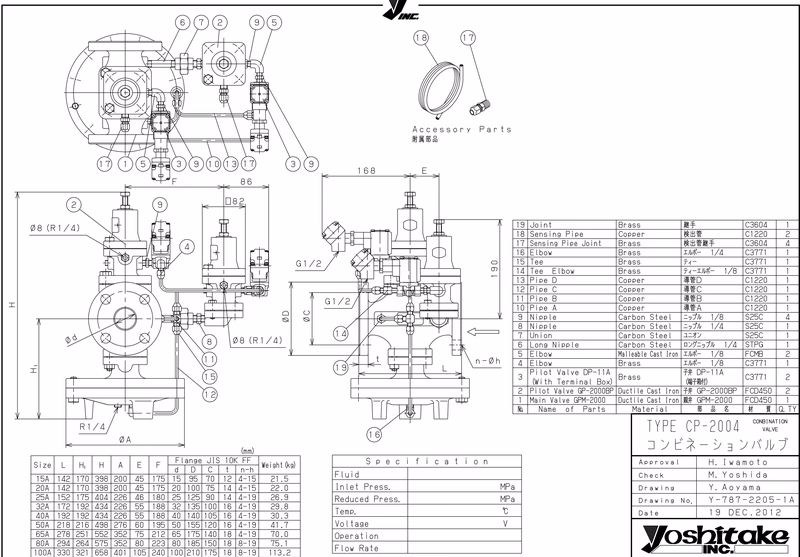

Size	D (mm)	L (mm)	H1 (mm)	H (mm)	A (mm)	E (mm)	F (mm)	C (mm)	t (mm)	n-h	Weight (kg)
15A	95	142	170	398	200	45	175	70	12	4-15	21.5
20A	100	142	170	398	200	45	175	75	14	4-15	22.0
25A	125	152	175	404	226	46	180	90	14	4-19	26.9
32A	135	172	192	434	226	55	188	100	16	4-19	29.8
40A	140	192	192	434	226	55	188	105	16	4-19	30.3
50A	155	218	216	498	276	60	195	120	16	4-19	41.7
65A	175	278	251	552	352	75	212	140	18	4-19	70.0
80A	185	294	264	575	352	80	223	150	18	8-19	75.1
100A	210	330	321	658	401	105	240	175	18	8-19	113.2

Parts List

No.	Name of Parts	Material	Qty
1	Main Valve GPM-2000	Ductile Cast Iron	1
2	Pilot Valve GP-2000BP	Ductile Cast Iron	2
3	Pilot Valve DP-11A (With Terminal Box)	Brass	2
4	Elbow 1/8	Brass	1
5	Elbow 1/8	Malleable Cast Iron	2
6	Long Nipple 1/4	Carbon Steel	1
7	Union	Carbon Steel	1
8	Nipple 1/4	Carbon Steel	1
9	Nipple 1/8	Carbon Steel	4
10	Pipe A	Copper	1
11	Pipe B	Copper	1
12	Pipe C	Copper	1
13	Pipe D	Copper	1
14	Tee Elbow 1/8	Brass	1
15	Tee	Brass	1
16	Elbow 1/4	Brass	1
17	Sensing Pipe Joint	Brass	4
18	Sensing Pipe	Copper	2
19	Joint	Brass	1
