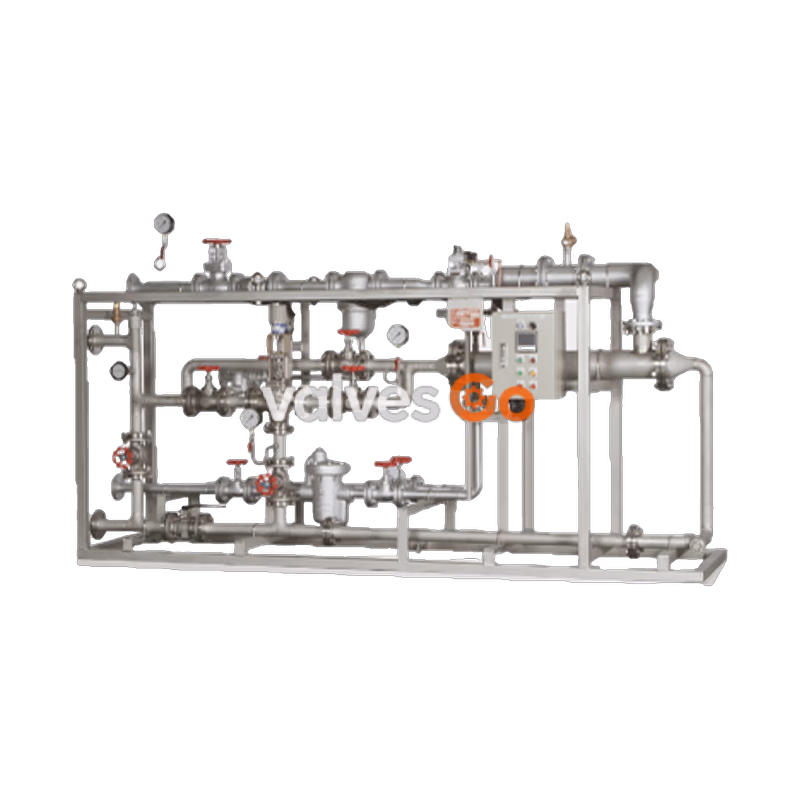

Yoshitake HN-300M series is a custom-made (made-to-order) hot water navigator system. It is designed to provide high-accuracy temperature control for various high-temperature and high flow rate applications, from handwashing and showering to equipment sterilization in production processes. We manufacture the appropriate product setup according to the customer's usage and conditions.

Applications

The HN-300M is versatile and supports various cleaning and sterilization processes:

• Handwashing and showering
• Appliance and floor cleaning
• Production process cleaning, including CIP (Cleaning in Place) and SIP (Sterilize in Place)

Key Features

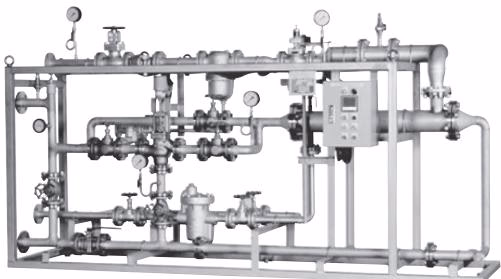

Digital Three-Way Valve Control System

High-accuracy temperature control is achieved through PID control based on feed-forward control.

High-Temperature and High Flow Rate

The system can be used in a wide range of applications, from washing at 50-60°C to high-temperature sterilization at 80-90°C.

Control Panel Customization

The control panel can be customized according to requests. External input/output is supported, allowing for the configuration of maximum and minimum temperature alarms, warning buzzers, emergency steam supply shutdowns, and line pump emergency shutdowns.

Stainless Steel Shell & Tube Heat Exchanger

Due to the adoption of a colgate (corrugated) tube, the heat transfer area is large, providing excellent heat exchange capability. Both the shell and tube, as well as the three-way valve body, are constructed from stainless steel, ensuring durability.

Easy Digital Temperature Setting

The digital interface makes changing set temperatures easy, improving efficiency across all application changes.

Specifications

Model	HN-300M
Heating Fluid	Steam
Heated Fluid	Water
Steam Supply Pressure	0.6-1.0 MPa
Steam Pressure Inside Unit	0.6-1.0 MPa
Water Supply Pressure	0.2-0.7 MPa
Temperature Adjustment Range	30-93°C
Minimum Temperature Difference	15°C
Maximum Water Supply Pressure Loss	0.07 MPa
Three-Way Valve Body Material	Stainless steel
Shell Material	Stainless steel
Tube Material	Stainless steel (SUS316L)

Flow Rate Performance

Flow rate with steam pressure at 0.15 MPa:

Water Supply Temperature (°C)	Preset Temperature (°C)	Standard Heat Exchanger Flow Rate (L/min)	Large Heat Exchanger Flow Rate (L/min)
15	70	245	355
15	80	200	300
15	90	180	260
20	70	225	370
20	80	215	310
20	90	183	265

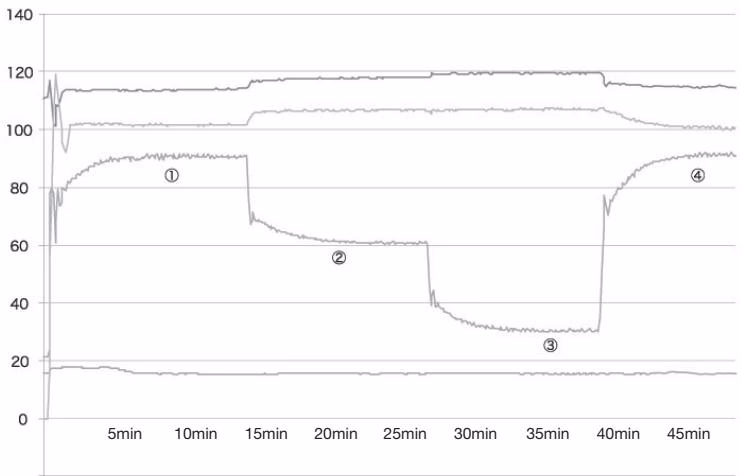

Temperature Regulation Test Data

• Supply water: 18°C
• High hot water temperature: 120°C
• Setting 1: Hot water temperature set to 90°C, maintaining flow rate of 100 L/min for 10 minutes (temperature rises to 90°C within 4 minutes, regulated within ±1.5°C).
• Setting 2: Hot water temperature set to 60°C, maintaining flow rate of 100 L/min for 10 minutes (temperature drops to 60°C within 5 minutes, regulated within ±1.5°C).
• Setting 3: Hot water temperature set to 30°C, maintaining flow rate of 100 L/min for 10 minutes (temperature drops to 30°C within 5 minutes, regulated within ±1.5°C).
• Setting 4: Hot water temperature set to 90°C, maintaining flow rate of 100 L/min for 10 minutes (temperature rises to 90°C within 5 minutes, regulated within ±1.5°C).
