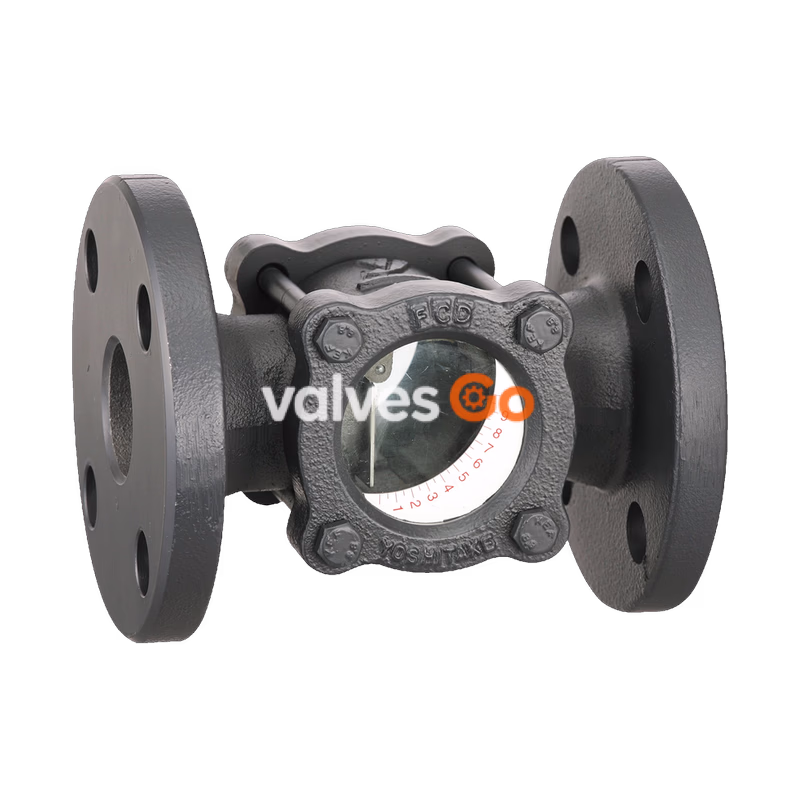

Yoshitake SL-1S and SL-1F are plain type sight glasses used for visual flow monitoring in pipelines. They are suitable for cold and hot water, oil, and other non-hazardous fluids. For steam condensate applications, a mica plate must be installed.

Features and Specifications

The sight glasses are designed for reliable operation across various non-hazardous fluid applications. A mica plate is required when handling steam condensate.

Dimensions and Weights

The following tables provide the dimensions (L, W) and weights (kg) for different nominal sizes (d).

SL-1S

SL-1F

Piping Example

Proper installation is critical for correct operation and accurate flow visualization. Follow standard installation practices for cold and hot water, as well as steam condensate applications.

Disassembly, Cleaning, and Reassembly

WARNING

Overtightening damages the glass. Glasses and mica plates are not bonded. Please be careful when handling.

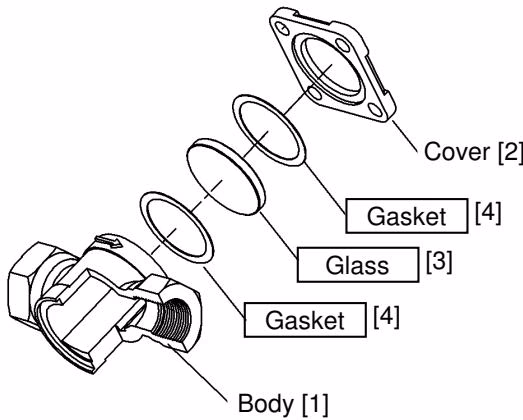

When reassembling the SL-1S or SL-1F sight glasses:

1. Attach the gaskets, mica plates (if used for steam condensate), glasses, outer gaskets, and covers in this order to the body.
2. To fix the covers to the body, tighten them temporarily with bolts, spring washers, and nuts, then tighten evenly at the specified torque.
