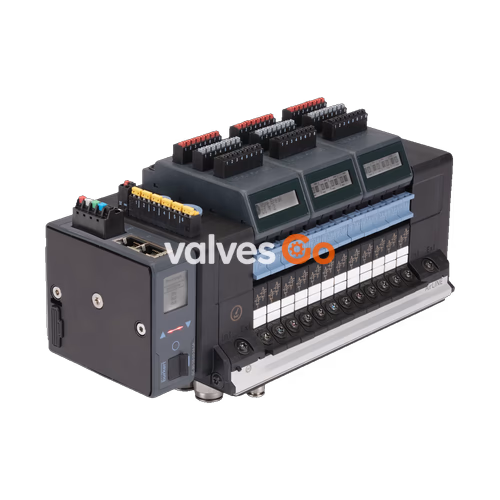

BURKERT Type 8652 AirLINE valve island (Model 20007879) has been especially developed for process automation requirements. This specific 16-bank configuration features Industrial Ethernet (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) protocols and an aluminium AirLINE Quick adapter plate. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols, saving time during start-up and maintenance.

Key pneumatic functions ensure increased process reliability, such as integrated check valves in the exhaust air ducts to prevent unplanned actuation due to pressure peaks. The hardware is optimised for installation at the bottom of the control cabinet.

Model 20007879 Specifications

Feature	Value
Number of valve ports	16 PCE
Valve positions 1-16	5/2-way monostable WWH
Pressure port	D10
Working port	D6
Supply/Working connection material	Brass
AirLINE Quick material	Aluminium
Auxiliary pilot air	Internal
Nominal pressure	-1 bar to 10 bar
Control pressure	3 bar to 10 bar
Temperature (medium/environment)	-10 °C to 55 °C
Digital inputs number	32 (El. modules 1-4 with DI)
Integrated check valves	Yes (in 3 (R) and 5 (S))
Pneumatic HotSwap	Yes (in 1 (P))
Protection type	IP20 (max. with suitable connector)

General Technical Data

Product properties	Description
Body material	PA (polyamide)
Seal material	NBR and PUR
Width per station	11 mm
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Operating voltage	24 V DC (±10% tolerance)
Nominal power of each valve	0.7 W (0.175 W after power reduction)
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Compressed air quality	ISO 8573-1: 2010, Class 7.4.4

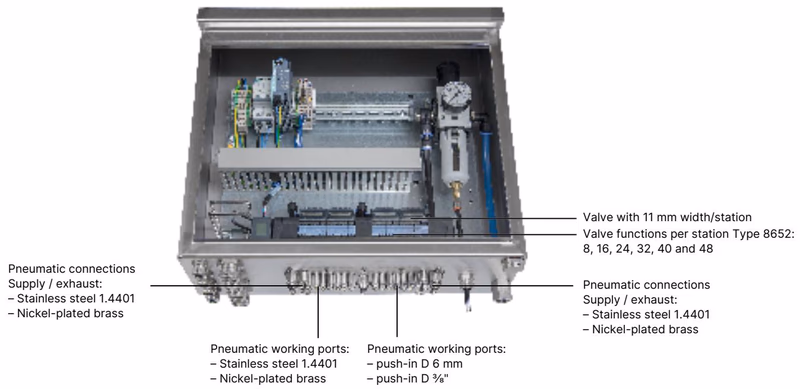

AirLINE Quick

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages

• Reduced space requirement in the control cabinet.
• Makes it possible to use more compact control cabinets.
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet.

Approvals and Conformities

• Explosion protection: ATEX (BVS 20 ATEX E 031 U II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc), IECEx (IECEx BVS 20.0024 U Ex ec IIC Gc / Ex tc IIIC Dc). Suitable for zone 2/22.
• North America: UL Listed (UL 61010-1, CAN/CSA-C22.2 No. 61010-1) and UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Div 2).
• Others: China Compulsory Certification (CCC).

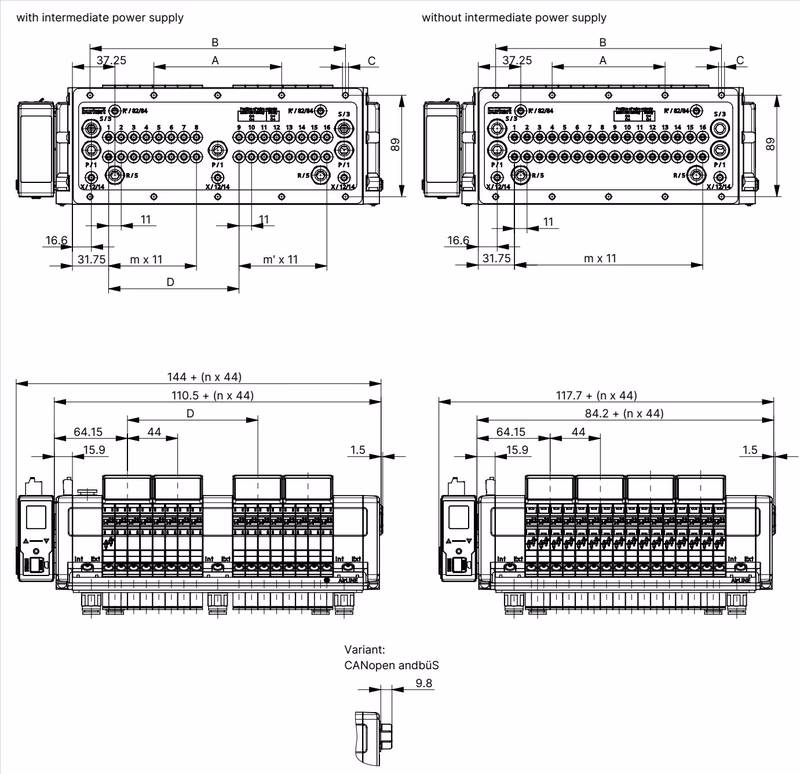

Dimensions (16-fold Variant)

Note: Dimensions in mm. 16-fold with intermediate supply: A=112, B=224, C=10xM5, D=114.3, m=7, m'=7, n=4.

Product Connections

Industrial Ethernet Interface (X1 and X2 RJ45)

Pin	Assignment
1	TX+
2	TX-
3	RX+
6	RX-

(Pins 4, 5, 7, 8 are N.C.)

Installation Notes

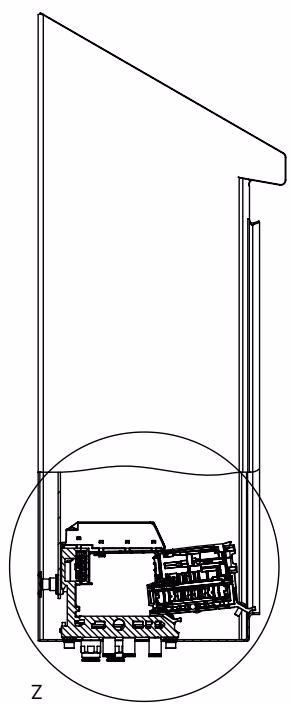

Hot Swap Function

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

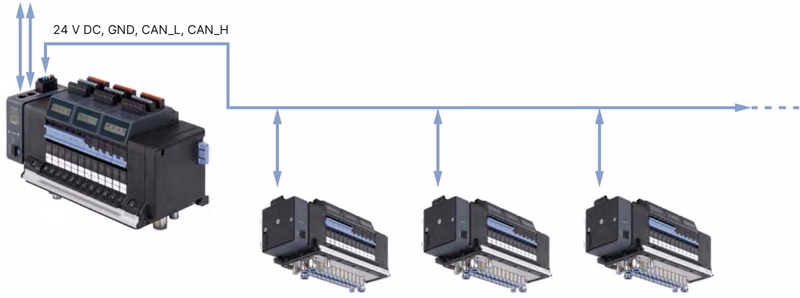

Example Configuration

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.
