Burkert 8652 AirLINE valve island is developed for process automation requirements. Diagnostic functions are visualised on the LC display in clear text and symbols, simplifying message allocation and saving time during start-up and maintenance. Diagnostic messages are also available at the controller for a fast overview of the plant status. The hardware is optimised for installation at the bottom of the control cabinet or on a standard rail. Key pneumatic functions, such as check valves in the exhaust air ducts, prevent unplanned actuation due to pressure peaks.

General Technical Data

Property	Value
Body material	PA (polyamide)
Seal material	NBR and PUR
Width per station	11 mm
Number of valve slots	Max. 24
Maximum valve functions	Max. 48
Pressure range	Vac to 10 bar
External supply air	3 to 10 bar
Flow rate (air)	310 l/min (measured at +20 °C, 6 bar inlet, 1 bar differential)
Operating voltage	24 V DC (±10% tolerance)
Nominal power per valve	0.7 W (0.175 W after power reduction)
Protection class	III according to DIN EN 61140, VDE 0140
Degree of protection	IP20, IP65 in closed control cabinets
Ambient temperature	-10 °C to +55 °C

AirLINE Quick Adapter

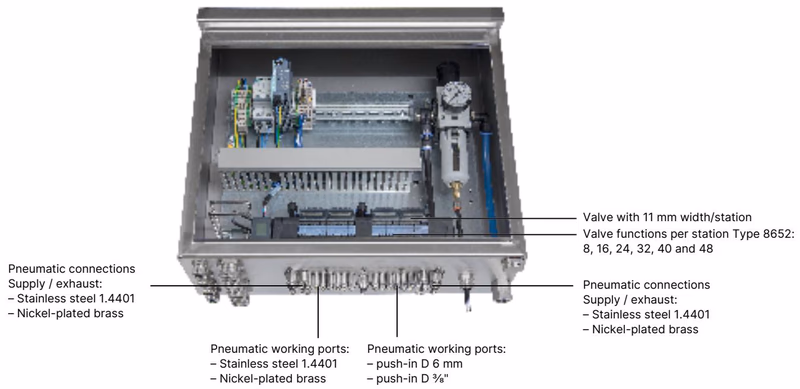

The AirLINE Quick adapter reduces the use of components in the control cabinet by adapting the valve terminal directly to the control cabinet floor or wall. This reduces space requirements and installation effort due to hose connections directly at the bottom of the control cabinet.

Property	Value
Adapter plate material	Stainless steel 1.4301, Anodised aluminium
Pneumatic connection material	Stainless steel 1.4401, Nickel-plated brass
Valve functions per station	8, 16, 24, 32, 40 and 48
Pneumatic supply / exhaust	Push-in D 10 mm, 3/8"
Pneumatic working ports	Push-in D 6 mm, 1/4"

Circuit Functions

Symbol	Description
CF C	3/2-way solenoid valve, servo-controlled, normally closed
CF D	2 × 3/2-way solenoid valve, servo-controlled, normally open
CF H	5/2-way solenoid valve, servo-controlled, pressure applied via port (1)
CF L	5/3-way solenoid valve, in middle position all ports locked
CF M	5/3-way solenoid valve, servo-controlled, in middle position ports 2 and 4 ventilated
CF N	5/3-way solenoid valve, in middle position ports 2 and 4 exhausted
CF Z	5/2-way solenoid valve, impulse variant with 2 coils

Approvals and Conformities

INFO

The product is compliant with EU Directives and carries a Type Rating (NEMA 250) of Type 4X in closed enclosures for the stainless steel variant.

• Explosion Protection: ATEX (II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc) and IECEx (Ex ec IIC Gc / Ex tc IIIC Dc) suitable for Zone 2/22.
• North America: UL Listed (UL 61010-1) and UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Div 2).
• CCC: China Compulsory Certification for hazardous applications.

Dimensions

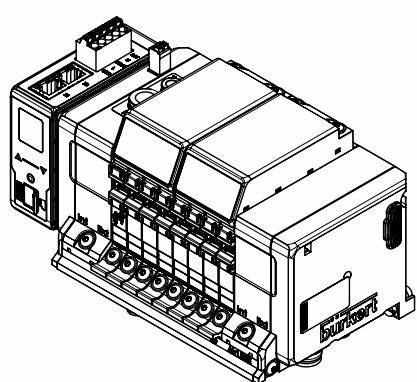

Dimensions for the 4-, 8-, and 12-fold variants with standard rail EN 50022 35 x 7.5 or 35 x 15.

Variant	A	B	C	m	n
4-fold	66	-	4 x M5	3	1
8-fold	35	111	8 x M5	7	2
12-fold	77	154	10 x M5	11	3

Product Connections

Industrial Ethernet (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) or PROFINET S2 – Interface X1 and X2 RJ45

Pin	Assignment
1	TX+
2	TX-
3	RX+
6	RX-

WARNING

CANopen requires two terminating resistors: one at the beginning of the network and one at the end. The resistance between CAN_H and CAN_L when the power is switched off should be approximately 60 Ω.

Product Design and Assembly

Electronic Module with Digital Inputs

The digital inputs are supplied (24 V) by the electronic module. Current is limited to a maximum of 30 mA per digital input. Standard 3-wire sensors, 2-wire sensors (10–30 V), and mechanical limit switches can be used.

Valves Type 6534 for Safety-Related Shut-Off (SIA Variant)

Type 6534 valves are equipped with additional connection terminals, allowing a valve circuit to be interrupted by an external switch. To use the shut-off function, connect the terminal to a potential-free contact (mechanical switch or relay).

Example Configuration

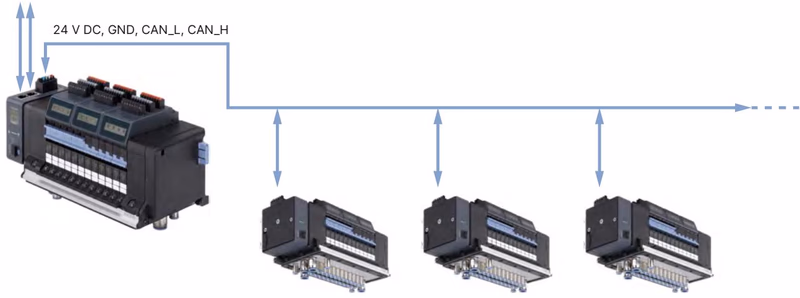

The following illustration shows a network with the AirLINE Type 8652 Industrial Ethernet variant as the master valve terminal and various AirLINE Type 8652 büS variants as slave valve terminals.
