BURKERT 20032236 (Type 8652) AirLINE valve island is developed for process automation requirements. Diagnostic functions are visualised on the LC display in clear text and symbols, simplifying message allocation and saving time during start-up and maintenance. Diagnostic messages are also transmitted to the controller for a fast overview of the plant status. The hardware is optimised for installation at the bottom of the control cabinet, with standard rail installation also supported. Key pneumatic functions, such as check valves in the exhaust air ducts, prevent unplanned actuation due to pressure peaks and ensure increased process reliability.

General Technical Data

Product Properties	Specification
Body Material	PA (polyamide)
Seal Material	NBR and PUR
Width per station	11 mm
Number of valve slots	Max. 24 (8 PCE for SKU 20032236)
Maximum valve functions	Max. 48
Pressure range	Vac to 10 bar (-1 to 10 bar)
External supply air	3 to 10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Operating voltage	24 V DC (±10% tolerance)
Nominal power per valve	0.7 W (0.175 W after power reduction)
Nominal current per valve	29 mA (10 mA after power reduction)
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Ambient temperature	-10 °C to +55 °C
Degree of protection	IP20, IP65 in closed control cabinets

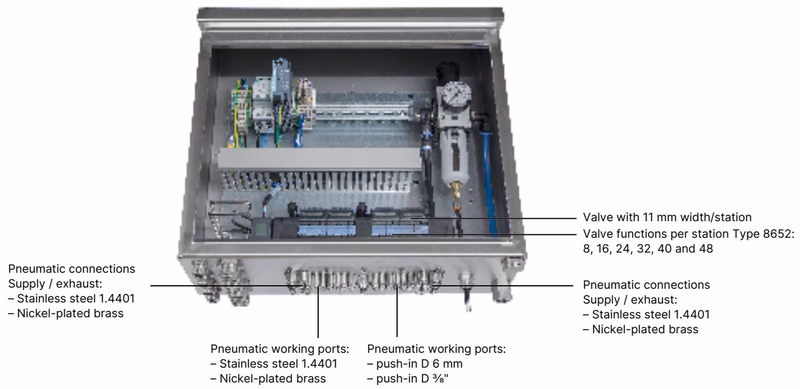

AirLINE Quick Installation

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or wall.

Advantages:

• Reduced space requirement in the control cabinet, enabling the use of more compact cabinets.
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet.

AirLINE Quick Properties	Specification
Adapter Plate Material	Stainless steel 1.4301 or Anodised aluminium
Pneumatic connection	Stainless steel 1.4401 or Nickel-plated brass
Pneumatic Supply / Exhaust	Push-in D 10 mm, 3/8"
Pneumatic working ports	Push-in D 6 mm, 1/4"

Circuit Functions

The Type 8652 supports multiple standard and safety-related (SIA) circuit functions. The SIA variant (Type 6534) is equipped with additional connection terminals, allowing a valve circuit to be interrupted by an external switch for safety-related shut-off.

Circuit Function	Description
C (CF C)	3/2-way solenoid valve, servo-controlled, normally closed.
D (CF D)	2 × 3/2-way solenoid valve, servo-controlled, normally open.
H (CF H)	5/2-way solenoid valve, servo-controlled. Pressure applied via port (1), therefore port (2) or (4) is under pressure.
L (CF L)	5/3-way solenoid valve, in middle position all ports locked.
M (CF M)	5/3-way solenoid valve, in middle position ports 2 and 4 ventilated.
N (CF N)	5/3-way solenoid valve, in middle position ports 2 and 4 exhausted.
Z (CF Z)	5/2-way solenoid valve, impulse variant with 2 coils.

Approvals and Conformities

• Explosion Protection: Optional ATEX/IECEx Zone 2/22 (II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc).
• North America: Optional UL Listed (UL 61010-1) and UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, II, III, Div 2).
• CCC: Optional China Compulsory Certification for hazardous applications.

ATEX Installation Conditions

For explosion protection type "ec", the device must be installed in an enclosure complying with EN/IEC 60079-0 and EN/IEC 60079-7 with a minimum protection rating of IP54. For type "tc" (dust), the enclosure must have a minimum protection rating of IP6X.

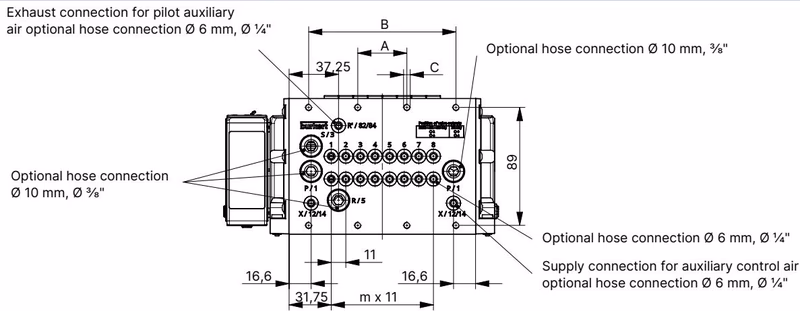

Dimensions

Dimensions for the 4-, 8-, and 12-fold variants (in mm):

Product Connections

Power Supply

• Communication and displays: 5-pin spring-loaded terminal (24 V DC, CAN_H, Shielding, CAN_L, GND).
• Pneumatic valves: 2-pin spring-loaded terminal (AUX 24 V, GND). The interface plate separates the pneumatic valves' power supply from the main communication module.

Fieldbus Interface

For Industrial Ethernet (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) or PROFINET S2, the device uses RJ45 interfaces (X1 and X2).

Product Installation

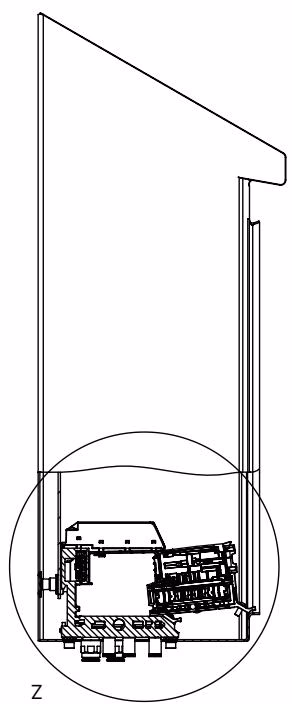

Hot Swap Function

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

Electronic Module with Digital Inputs (Optional)

The digital inputs are supplied (24 V) by the electronic module. Current is limited to a maximum of 30 mA per digital input. Standard 3-wire sensors, 2-wire sensors with voltages between 10–30 V, and mechanical limit switches can be used. The module provides open-circuit detection with 2-wire sensors and short-circuit detection with 3-wire sensors.
