BURKERT 20061874 Type 8652 AirLINE Valve Island with Industrial Ethernet

BURKERT Type 8652 AirLINE valve island (SKU 20061874) optimised for process automation. Features 12 valve ports, Industrial Ethernet, ATEX/IECEx Zone 2 approval, and LC display diagnostics.

BURKERT 20061874 Type 8652 AirLINE Valve Island with Industrial Ethernet

BURKERT Type 8652 AirLINE valve island (SKU 20061874) has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller, enabling a fast overview of the plant status. The hardware is optimised for installation at the bottom of the control cabinet, though installation on a standard rail is also possible. Key pneumatic functions ensure increased process reliability; for instance, check valves in the exhaust air ducts make sure there is no unplanned actuation due to pressure peaks.

Key features include safety-related shut-off of valves (SIA variant), higher plant availability with PROFINET S2 (system redundancy), and EX-variants suitable for ATEX / IECEx Zone 2, CCC, and cURus HazLoc CL I, II, III Div 2 environments.

General Technical Data ​

Product propertiesSpecification
Body MaterialPA (polyamide)
Seal MaterialNBR and PUR
Width per station11 mm
Manual overrideLatching, spring return (optional: lockable)
Number of valve slotsMax. 24 (12 PCE for SKU 20061874)
Maximum valve functionsMax. 48
Pressure rangeVac...10 bar (-1 to 10 bar)
External supply air3...10 bar
Flow rate $Q_{Nn}$ value air310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Operating voltage24 V DC (±10% tolerance)
Nominal power per valve0.7 W (0.175 W after power reduction)
Nominal current per valve29 mA (10 mA after power reduction)
Operating mediumOil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Degree of protectionIP20, IP65 in closed control cabinets
Ambient temperature-10 °C...+55 °C

AirLINE Quick ​

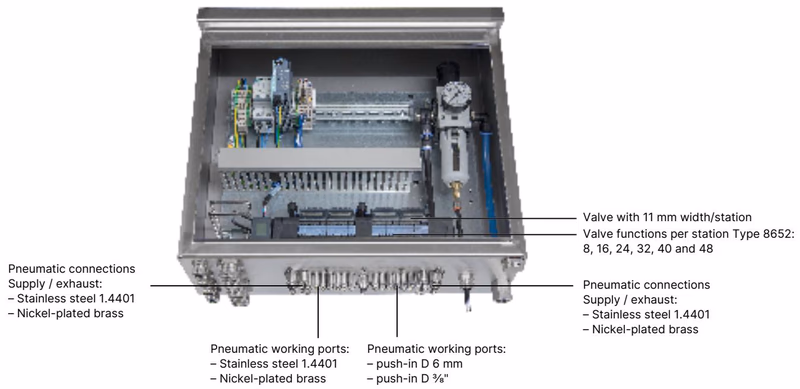

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

  • Reduced space requirement in the control cabinet.
  • Makes it possible to use more compact control cabinets.
  • Reduced installation effort due to hose connections directly at the bottom of the control cabinet.

BURKERT 20061874 BURKERT Type 8652 AirLINE Quick Adapter in stainless steel or anodised aluminium

PropertySpecification
AirLINE Quick Adapter PlateStainless steel 1.4301 / Anodised aluminium
Pneumatic connectionStainless steel 1.4401 / Nickel-plated brass
Pneumatic Supply / ExhaustPush-in D 10 mm, 3/8"
Pneumatic working portsPush-in D 6 mm, 1/4"

Circuit Functions ​

The Type 8652 supports various circuit functions depending on the installed valves. The standard configuration for SKU 20061874 includes 5/2-way monostable WWH valves.

Circuit functionDescription
C (CF C)3/2-way solenoid valve, servo-controlled, normally closed
D (CF D)2 × 3/2-way solenoid valve, servo-controlled, normally open
H (CF H)5/2-way solenoid valve, servo-controlled. Pressure applied via port (1), therefore one of the two ports (2) or (4) is under pressure.
L (CF L)5/3-way solenoid valve, in middle position all ports locked
M (CF M)5/3-way solenoid valve, in middle position ports 2 and 4 ventilated
N (CF N)5/3-way solenoid valve, in middle position ports 2 and 4 exhausted
Z (CF Z)5/2-way solenoid valve, impulse variant with 2 coils

Approvals and Conformities ​

  • Explosion protection: Optional as a category 3 device suitable for zone 2/22. ATEX: II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc. IECEx: Ex ec IIC Gc / Ex tc IIIC Dc.
  • North America: Optional UL Listed (UL 61010-1) and UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Div 2).
  • CCC: Optional China Compulsory Certification for hazardous applications in China.

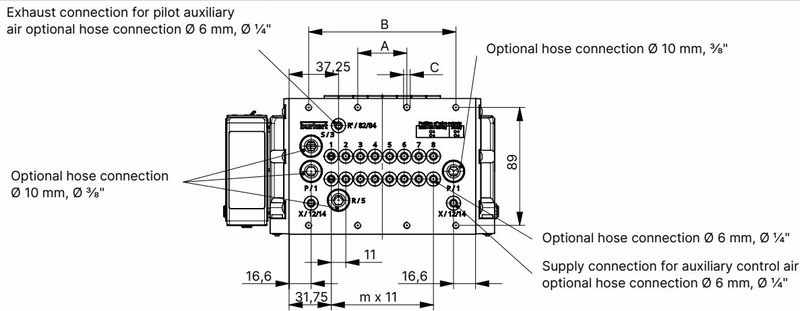

Dimensions ​

BURKERT 20061874 BURKERT Type 8652 dimensions for 4-, 8- and 12-fold variants

VariantABCmn
4-fold66-4 x M531
8-fold351118 x M572
12-fold7715410 x M5113

(Dimensions in mm, unless otherwise stated)

Product Connections ​

Industrial Ethernet Interface ​

For Industrial Ethernet (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) or PROFINET S2 – Interface X1 and X2 RJ45:

PinAssignment
1TX+
2TX-
3RX+
4N.C.
5N.C.
6RX-
7N.C.
8N.C.

Product Installation ​

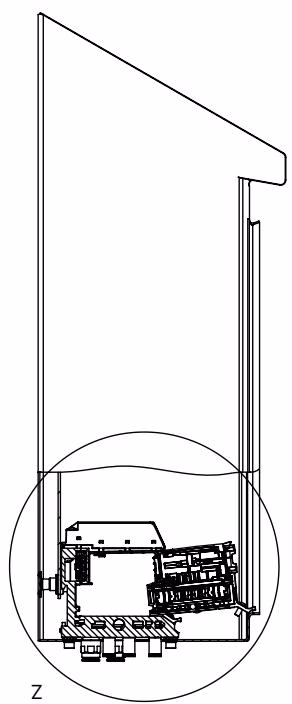

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

BURKERT 20061874 BURKERT Type 8652 installation situation inside the control cabinet

Electronic Module with Digital Inputs ​

The digital inputs are supplied (24 V) by the electronic module. Current is limited to maximum 30 mA per digital input. Standard 3-wire sensors and 2-wire sensors with voltages between 10…30 V as well as mechanical limit switches can be used.

Possible data3-wire sensors2-wire sensorsMechanical limit switches
Sensor actuatedXXX
Sensor not actuatedXXX
Short circuitX--
Wire break-X-

Example Configuration ​

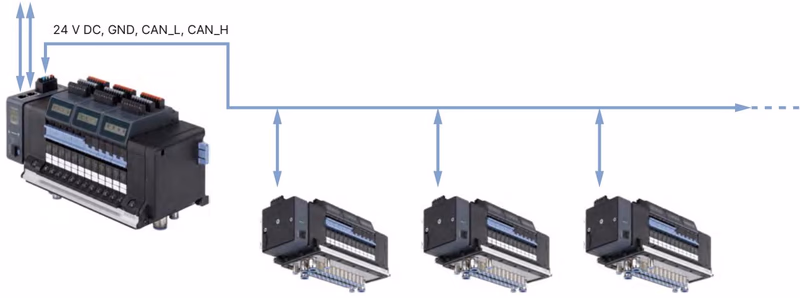

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.

BURKERT 20061874 BURKERT Type 8652 example configuration with Industrial Ethernet

Safety Instructions for EX Areas

  • Danger from voltage: Before working on the device or system, switch off the power supply and secure against reactivation.
  • In an existing explosive atmosphere, the connection terminals for 24 V supply, SIA, EVS, and digital inputs may only be plugged in or unplugged when the power is switched off.
  • The use of the Hot Swap function is prohibited in an existing explosive atmosphere unless it can be proven by suitable test equipment that no explosive atmosphere is present for a certain period.
  • Ensure that the transient protection is set to a value that does not exceed 140% of the peak rated voltage value at the supply terminals to the equipment.
