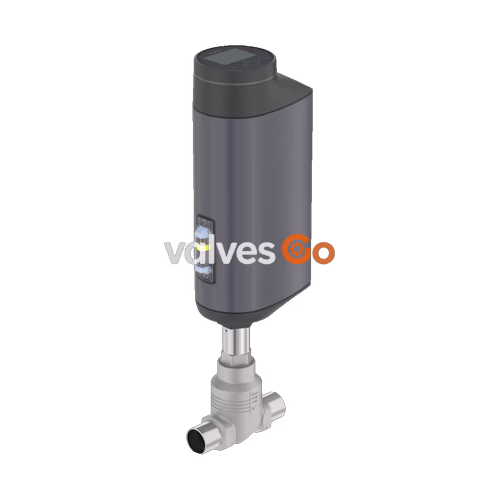

BURKERT 20076076 (Type 3361) is an innovative electromotive 2-way globe control valve designed for demanding operating conditions. This specific model features a DN 10 welded connection (DIN EN ISO 1127 / ISO 4200 / DIN 11866 Series B), a stainless steel valve body, and an AG2 (1300 N) electromotive actuator. Operating at 24 V DC, it handles pressures up to 25 bar and medium temperatures from -10 °C to 150 °C. The valve delivers highly precise, dynamic closed-loop control with a positioning speed of up to 6 mm/s, reacting almost delay-free to process signals.

The Type 3361 features a weather, impact, and vibration-resistant design with an IP65/IP67 and NEMA 4X protection rating. The closed design and robust surface ensure hygienic requirements for fast and residue-free cleaning are met. It includes a positioner function, a linear 10:1 control cone variant, and electrical energy storage for a normally closed safety position in case of power failure.

General Technical Data

Product properties
Design	Globe control valve
Nominal diameter	DN 10 (NPS 3/8)
Safety setting in case of power failure	With energy storage SAFEPOS energy-pack: open, closed or freely programmable position. Without energy storage: blocked in last position
Flow direction	Against closing direction (below seat)
Controller variant	Positioner
Weight	AG2: up to 5.5 kg (Total weight including valve body depending on port connection)

Performance data
Operating pressure	0...25 bar(g)
Nominal pressure	PN 25 (DIN EN 1333), Class 150 (DIN EN 1759)
Kv value (water)	0.1 m³/h
Flow characteristic	Linear 10:1
Closing time	3.400 ms (typical)
Travel speed	6 mm/s (for AG2 actuator force 1300 N)
Dead band of the position control	± 0.1 %

Electrical data
Operating voltage	24 V DC ± 10 % (maximum residual ripple 10 %)
Operating current	AG2: maximum 3 A (at maximum load and including 1 A charging current of the optional energy storage SAFEPOS energy-pack). At minimum operating temperature additionally 2 A
Protection class	III (DIN EN 61140)
Duty cycle	100 %

Communication and control
Standard signal (analogue)	Set-point value: 0/4...20 mA, 0...5/10 V and binary input
Fieldbus (digital)	Bürkert system bus (büS)

Material Specifications

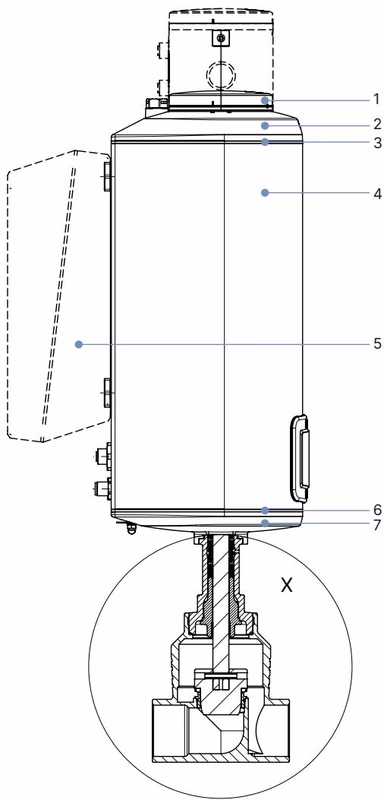

Actuator AG2

No.	Component	Material
1	Display housing/blind cover/gateway housing	PPS (standard), stainless steel 1.4301 (for ATEX/IECEx)
2	Actuator cover	PPS
3	Seal	EPDM
4	Actuator housing	Powder-coated aluminium
6	Seal	EPDM
7	Actuator base	PPS

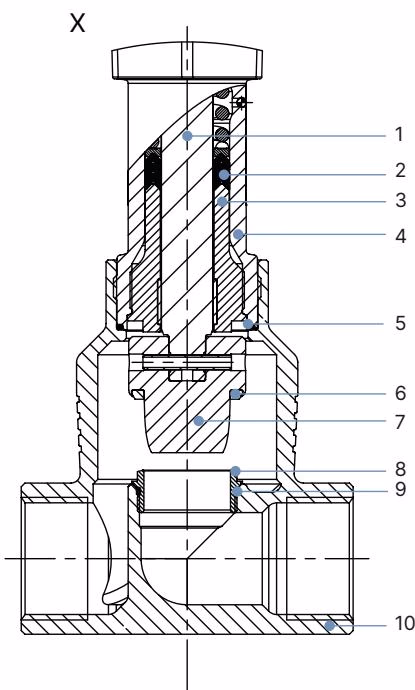

Valve Body

No.	Component	Material
1	Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
2	Spindle seal	PTFE V-seals (filled) with spring compensation
3	Spindle guide	Stainless steel 1.4404 (316L)
4	Packing gland tube	Stainless steel 1.4401 (316)
5	Seal valve body	Graphite or PTFE
6	Seat seal	Stainless steel 1.4571 (optionally hardened), PTFE or PEEK seal washer
7	Control cone	Stainless steel 1.4571 (optionally hardened)
8	Valve seat	Stainless steel 1.4571 (optionally hardened)
9	O-ring valve seat	EPDM or PTFE
10	Valve body	Stainless steel CF3M

Dimensions

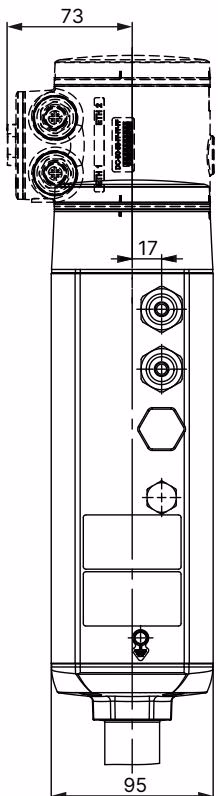

Actuator AG2

Nominal diameter (port connection)		Height
DN	NPS	H1 Standard variant
10	3/8	417 mm

INFO

Dimensions without sealing function: the actuator is raised by approx. 2 mm in the closed position.

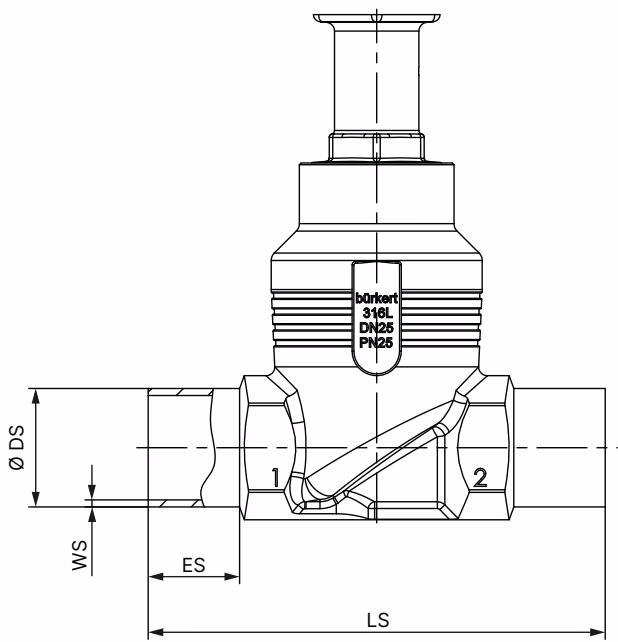

Body with Welded Connection

Nominal diameter			DIN EN ISO 1127 / ISO 4200 / DIN 11866 series B
DN	ES	LS	∅ DS / WS
10	20	90	17.2 / 1.6

Operating Limits

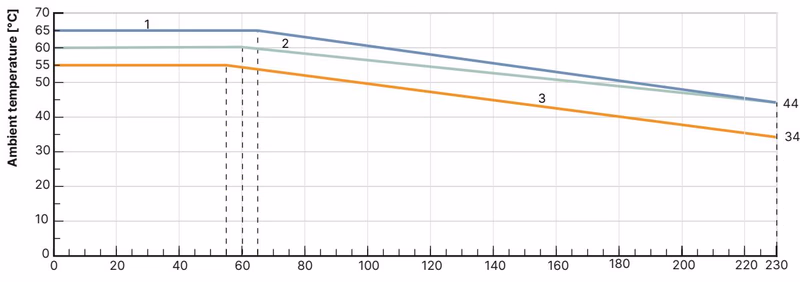

Operating Limits for Ambient and Medium Temperature

The maximum permissible temperature for the environment and the medium are dependent on each other. The maximum allowable temperature curves of different device variants are shown in the temperature chart. The curves were determined for maximum operating conditions (maximum operating pressure and motor power).

No.	Description
1	Devices without module
2	Devices with display
3	Devices with energy storage SAFEPOS energy-pack or fieldbus gateway, with/without display module

Service and Maintenance

WARNING

Risk of injury from high pressure. Before working on the system or device, switch off the pressure and vent or drain lines. Spare parts may be replaced only by trained technicians and with the appropriate tools.

When replacing the control cone, seal set, or valve seat, ensure the device is in the MANUAL operating state and the valve is moved to the open position before removing the actuator from the valve body. After mounting the actuator, run the X.TUNE function to adjust the position control to the physical stroke of the actuating element used.

DANGER

Danger due to uncontrolled process after running the X.TUNE function. If the X.TUNE is run under medium pressure, the controller will be incorrectly adjusted. Never run the X.TUNE under medium pressure.
