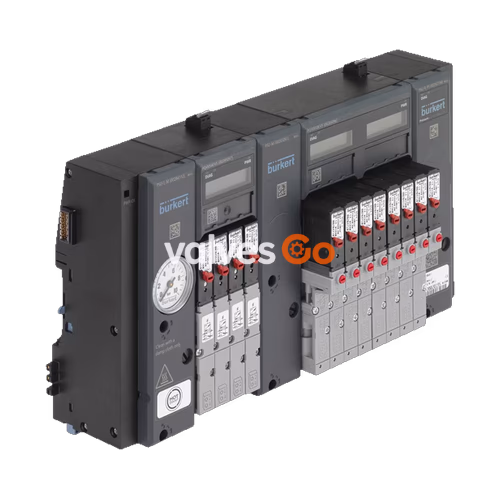

Burkert Type 8647 AirLINE SP is a modular, electropneumatic automation system consisting of connection and valve modules. It is designed for complete integration into the decentralized peripheral systems SIMATIC ET 200SP and SIMATIC ET 200SP HA from Siemens. The valve island incorporates pneumatic pilot valves directly into the SIMATIC I/O system, allowing pneumatic cylinders and process valves to be connected at the pneumatic outputs.

INFO

The valve block and the electronic modules of SIMATIC ET 200SP / SIMATIC ET 200SP HA provide extensive configuration options and diagnostics capabilities, including LC displays on the electronic base modules.

General Technical Data

Product Properties	Specification
Width per station	11 mm
Number of valve slots	Max. 64 (single valves), Max. 32 (impulse/double valves)
Maximum valve functions	64 on one valve block
Pressure range	Vacuum to 10 bar (with UL approval Vac to 8 bar)
Flow rate ($Q_{Nn}$ value air)	200 to 300 l/min (measured at +20 °C, 6 bar inlet, 1 bar differential)
Operating voltage	24 V DC (±10% tolerance)
Nominal power per valve	0.8 W (single), 2x 0.8 W (double/impulse with power reduction)
Protection class	IP20, IP65 in closed control cabinets
Operating medium	Oil-free or lubricated compressed dry air (ISO 8573-1:2010, Class 7.4.4)

System Components

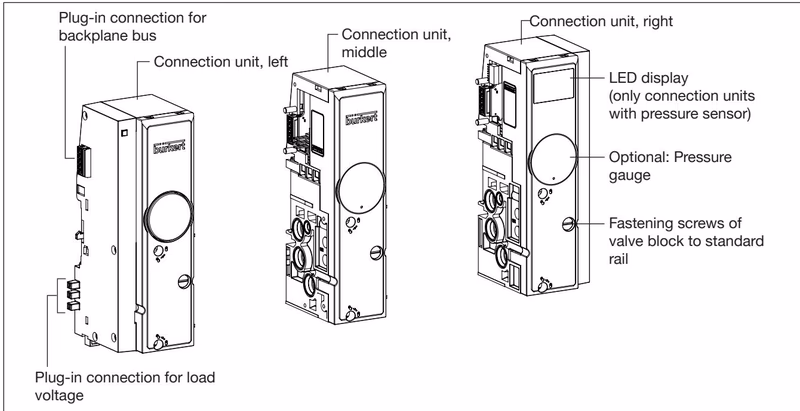

Connection Units

The pneumatic supply and deaeration of the valve block occur via connection units, which also secure the block to the standard rail. Connection units can be optionally equipped with a pressure gauge or an electronic pressure sensor. Variants with an electronic pressure sensor provide the measured supply pressure as an analog value via the ET 200SP and feature five LEDs for device and pressure status.

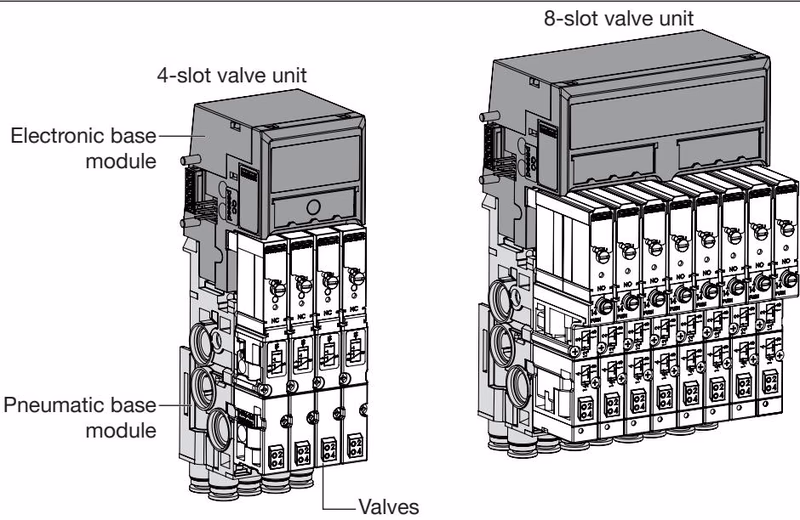

Valve Units

Valve units convert electrical control signals into pneumatic output signals. They consist of an electronic base module (PQ module), a pneumatic base module, and the pilot valves.

• Electronic Base Module: Contains electrical plug-in connections, valve driving electronics, visual status LEDs, and a graphics LCD. Available with 4 or 8 valve slots.
• Pneumatic Base Module: Supports the valves, ensures pneumatic supply/deaeration, and provides the working ports.

Pilot Valves

The system integrates specific Burkert pilot valves for pneumatic actuation:

• Type 6524 & 6525: 3/2-way, 2x3/2-way, and 5/2-way valves consisting of a flipper solenoid pilot and a pneumatic seat valve.
• Type 0460: 5/2-way impulse and 5/3-way valves featuring a double coil pilot valve and a pneumatic slide valve.

Circuit Functions

Symbol	Description
C (CF C)	3/2-way solenoid valve, servo-controlled, normally closed
D (CF D)	3/2-way solenoid valve, servo-controlled, normally open
H (CF H)	5/2-way solenoid valve, servo-controlled
L (CF L)	5/3-way solenoid valve, middle position all ports locked
N (CF N)	5/3-way solenoid valve, middle position ports 2 and 4 exhausted
Z (CF Z)	5/2-way solenoid valve, impulse variant with 2 coils

Safety-Related Shut-off

WARNING

The electrical shutdown of valve Types 6524 and 6525 causes them to return to their rest position. Using manual override to operate valves overrides the electrical shutdown.

The Type 8647 supports safety-related applications through different shut-off variants:

• SIA or EVS Shut-off: External Valve Shutdown (EVS) allows module-by-module shutdown of all valves via an external potential-free switching contact. SIA allows individual valve shutdown. Logic and diagnostics remain active on the LC display.
• F-PM-E Power Module: The load voltage of the valve block can be shut down by the Siemens F-PM-E 24VDC/8A PPM ST power module. This variant meets requirements for safety-related control systems (e.g., DIN EN ISO 13849).

AirLINE Quick

The AirLINE Quick adapter allows the valve terminal to be mounted directly to the control cabinet floor or wall, eliminating the need for internal bulkhead fittings and reducing the required cabinet space. It features stainless steel or anodized aluminum adapter plates and push-in pneumatic connections.
