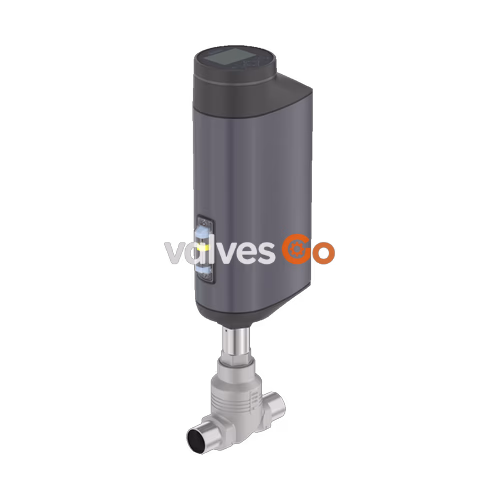

BURKERT Type 3361 electromotive 2-way globe control valve (SKU: 20114250) features an AG3 actuator with a 10,000 N driving force and a positioning speed of 3 mm/s. The valve body is constructed from stainless steel with a DN 80 flange connection (DIN EN 1092-1) and a PTFE seat seal. It operates on a 24 V DC supply voltage and handles nominal pressures from -0.9 bar to 21 bar (PN 25). The electromotive actuator with ball screw positions the control cone with high precision, reacting almost delay-free to process signals.

General Technical Data

Feature	Value
Design	Globe control valve
Nominal diameter	DN 80
Port connection	Flange (DIN EN 1092-1)
Safety setting	Blocked in last position (without SAFEPOS energy-pack)
Flow direction	Against closing direction (below seat)
Operating pressure	-0.9 to 21 bar
Kv value (water)	100 m³/h
Operating voltage	24 V DC ± 10 % (maximum residual ripple 10 %)
Degree of protection	IP65/IP67 (DIN EN 60529), NEMA 4X

Materials

Component	Material
Valve body	Stainless steel CF3M
Seat seal	PTFE
Spindle	Stainless steel 1.4401 (316) / 1.4404 (316L)
Actuator housing	Powder-coated aluminium
Actuator cover	PC
Actuator base	Stainless steel 1.4308

Dimensions

Actuator AG3

For the DN 80 nominal diameter, the standard variant height (H1) is 628 mm. Dimensions without sealing function: the actuator is raised by approx. 2 mm in the closed position.

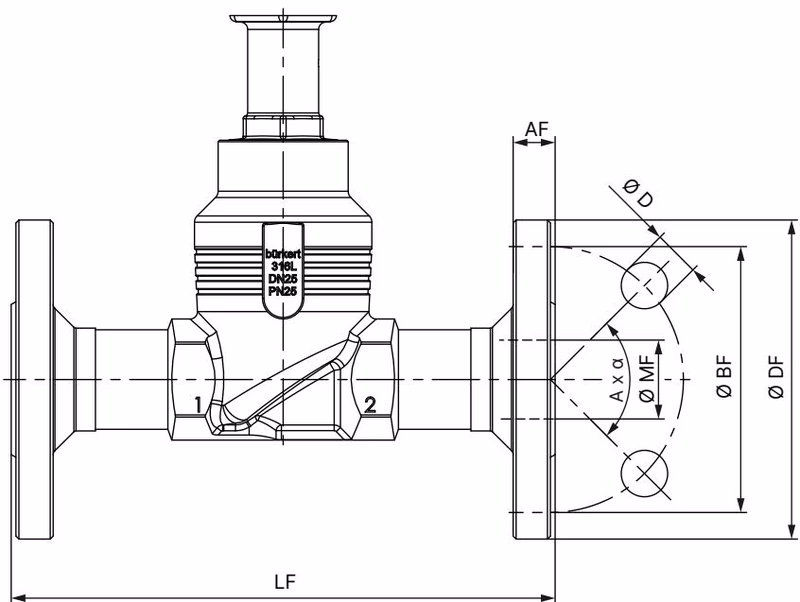

Body with Flange Connection

DN	∅ DF	LF	∅ BF	AF	∅ D	A x α	∅ MF
80	200	310	160	24	18	8 × 45°	81.0

Product Design and Assembly

The electromotive linear drive consists of a brushless DC motor, a gear, and a spindle system that transfers the force to the closing element. The integrated electronics are controlled by standard analogue signals (0/4...20 mA, 0...5/10 V). The actuator keeps the valve tight and in position even at the maximum specified medium pressure in a powerless standstill.

Operating Limits

The maximum permissible temperature for the environment and the medium are dependent on each other. For PTFE seat seals, the recommended medium temperature is -40 °C to +130 °C. Metallic seals are required for temperatures up to +230 °C.

Installation

The valve can be installed in any position, but mounting with the actuator upright is recommended. Protect the device from electromagnetic interference, UV radiation, and weather conditions when used outdoors.
