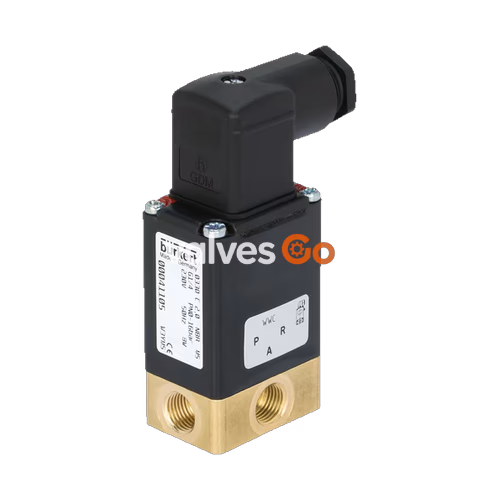

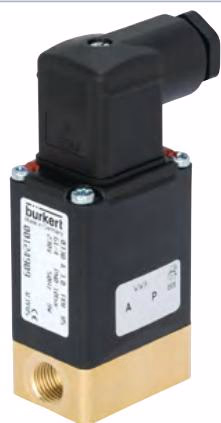

BURKERT 41116 (Type 0330) is a direct-acting, media-separated 3/2-way pivoted armature solenoid valve configured in Circuit Function C (normally closed). Operating on 230 V AC at 50 Hz, the valve features a brass body, an internal orifice of DN 3.0 mm (1/8 inch), and G 1/4 female threaded process connections. An NBR (Nitrile rubber, Shore 70) diaphragm hermetically isolates the media from the magnetic actuator, protecting moving parts and coil components from fluid contact.

Rated for working pressures from 0.00 to 10.00 bar across both liquid and gaseous media, BURKERT 41116 delivers a water flow capacity Kv of 0.18 m³/h and an air flow QNn of 195 l/min. The solenoid drive is molded with chemically resistant Class H epoxy and operates with a 100% ED continuous rating. Switching response times range from 8 to 15 ms for both opening and closing at +20 °C and 6 bar. The assembly includes a manual override for commissioning and comes complete with an enclosed Form A cable plug achieving an IP65 degree of protection.

Technical Specifications

Parameter	Specification	Source Detail
Article Number	41116 (041116)	Standard delivery program
Type Family	Type 0330	Direct-acting pivoted armature valve
Circuit Function	Circuit Function C (WW C)	3/2-way, direct-acting, normally closed
Nominal Diameter (DN)	3.0 mm	Orifice size 1/8"

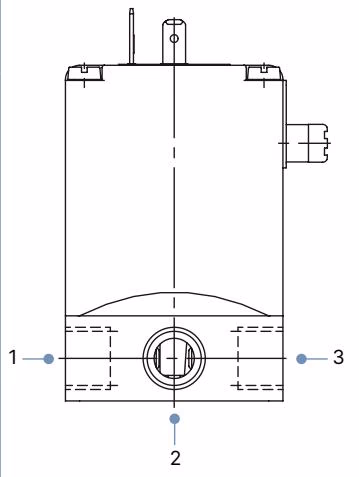

Fluidic Ports	3 ports, G 1/4 internal thread	Inlet 1 (P/NC), outlet 2 (A/OUT), exhaust 3 (R/NO)
Operating Pressure Range	0.00...10.00 bar	Overpressure to atmospheric pressure
Flow Value Kv (water)	0.18 m³/h	Measured at +20 °C, 1 bar pressure drop
Flow Value QNn (gas)	195 l/min	Air at standard conditions
Voltage / Frequency	230 V AC / 50 Hz	Voltage tolerance ±10%
Electrical Power Draw	Inrush: 30 VA; Hold: 15 VA (8 W)	AC 50 Hz standard variant
Duty Cycle	100% ED	Continuous operation with brass body
Switching Time AC	Opening: 8...15 ms; Closing: 8...15 ms	Measured at +20 °C, 6 bar at valve outlet
Body / Seat Material	Brass	Wetted metallic elements
Seal Material	NBR	Diaphragm and O-ring (Shore 70)
Fluid Temperature Range	0 °C...+80 °C	For neutral media with NBR seals
Maximum Viscosity	37 mm²/s	Maximum allowable medium viscosity
Ambient Temperature	Max. +55 °C	Rated environmental threshold
Electrical Connection	Plug pattern Form A	DIN EN 175301-803 (cable plug enclosed)
Protection Class	IP65	Achieved with mounted cable plug
Overall Body Length	46 mm	Face-to-face metal body dimension
Valve Weight	0.45 kg	Net weight of metal body unit

Circuit Function and Port Assignment

BURKERT 41116 operates in Circuit Function C (CF C), which defines a 3/2-way direct-acting solenoid valve closed in the de-energized position. In this de-energized state, pressure inlet port 1 (P/NC) is sealed shut, while working outlet port 2 (A/OUT) is open to exhaust port 3 (R/NO). When electrical power is applied to the 230 V coil, the pivoted armature opens port 1 to port 2 while closing exhaust port 3.

Circuit Function	Connection 1	Connection 2	Connection 3	De-energized Status
A (2/2-way)	P	A	—	Port 1 (P) closed, outlet 2 (A) blocked
B (2/2-way)	B	P	—	Port 2 (P) connected to 1 (B), open
C (3/2-way)	P	A	R	Port 1 (P) closed, port 2 (A) vented to port 3 (R)
D (3/2-way)	R	B	P	Port 3 (P) connected to port 2 (B), port 1 (R) closed
E (3/2-way)	P1	A	P2	Mixing valve: outlet 2 (A) connected to inlet 3 (P2)
F (3/2-way)	A	P	B	Distribution valve: inlet 2 (P) routed to outlet 3 (B)
T (3/2-way)	NC	IN/OUT	NO	Flow direction optional, normally closed

Operating Pressure Limits in Alternate Circuit Functions

The internal compression springs in Type 0330 are calibrated specifically for the factory circuit function. If a DN 3.0 mm metal body valve configured for Circuit Function C is plumbed into alternative circuits, maximum allowable operating pressure varies: 10 bar for Function A, 1 bar for Function B, 10 bar for Function C, 1 bar for Function D, 1 bar for Function E, and 10 bar for Function F.

Materials and Media Separation

The construction of Type 0330 isolates all mechanical pivoting elements and magnetic core assemblies from the process media. The isolating diaphragm acts simultaneously as the dynamic barrier between the fluid chamber and the solenoid actuator.

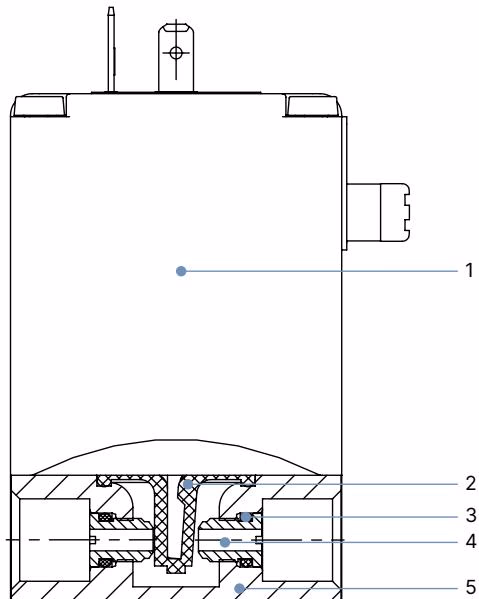

Item No.	Element	Material	Material Function in 41116
1	Solenoid Coil	Epoxy	Thermal Class H molded encapsulation
2	Diaphragm	NBR	Flexible media-isolating seal (Shore 70)
3	O-ring	NBR	Internal sealing between fluid housing and base
4	Valve Seat	Brass	Precision machined integral orifice sealing seat
5	Valve Body	Brass	Wetted pressure housing with G 1/4 female ports

NBR seal material is suited for neutral mediums, including dry or lubricated compressed air, town gas, water, hydraulic fluids, technical oils and greases without aggressive chemical additives, and technical oxygen. Chemical compatibility can be confirmed through the Bürkert resistApp database.

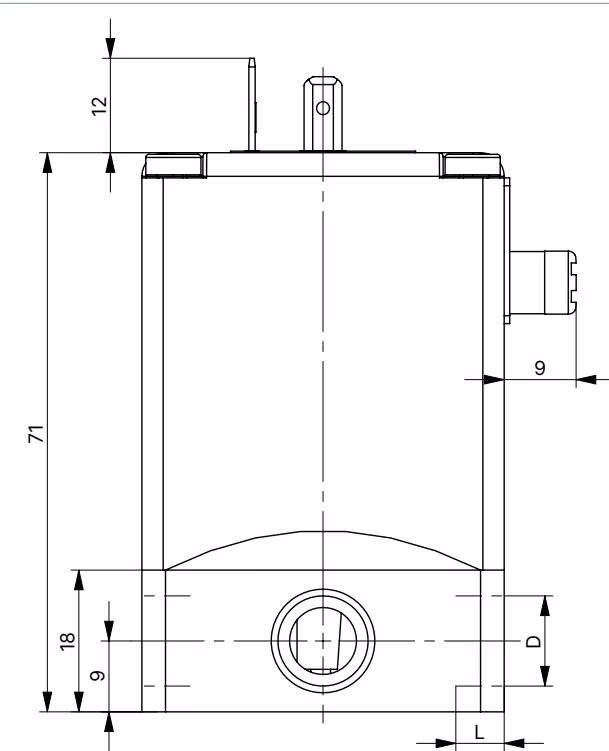

Installation Dimensions and Mounting

BURKERT 41116 features a metal body with a face-to-face length of 46 mm. All three process connections use G 1/4 threads.

Dimension Parameter	Value (mm)	Technical Note
Thread Type D1	G 1/4	Cylindrical pipe thread according to DIN EN ISO 228-1
Thread Length L1	9.0 mm	Connection depth on end ports
Center Port Thread Depth	Min. 7.5 mm	Minimum threaded depth at middle port connection
Installation Length	46.0 mm	Total length of metal valve body
Mounting Pattern Pitch	38.0 × 24.0 mm	Two tapped mounting holes on body bottom side
Mounting Fastener Thread	M4	Threaded fastening screws for metal body execution
Manual Override Radius	R84 mm	Pivoting clearance required for manual switch lever

Thread Depth Caution for G 1/4 Connections

When installing pipe fittings into the G 1/4 connection threads, observe that the middle connection provides a minimum thread length of 7.5 mm. When pipe fittings require deeper thread engagement, variants with G 1/8 threading are selected to prevent bottoming out against the valve seat chamber.

Mounting Orientation

The valve may be installed in any physical mounting orientation. Orientation with the solenoid actuator upright is recommended to minimize particulate sedimentation on the isolating diaphragm.

Electrical Characteristics and Switching Times

The 230 V 50 Hz AC solenoid coil draws an inrush power of 30 VA during armature pickup. In the held position, power consumption drops to 15 VA (8 W active power). Continuous energization (100% ED) is rated at ambient temperatures up to +55 °C.

Electrical Specification	AC Standard (50 Hz)	Source Reference
Nominal Operating Voltage	230 V AC	Metadata and ordering chart
Allowable Voltage Tolerance	±10%	General technical data
Inrush Power Consumption	30 VA	Armature pull-in phase
Holding Power Consumption	15 VA (8 W)	Steady-state energized phase
Opening Time	8...15 ms	+20 °C, 6 bar outlet pressure (0...90% rise)
Closing Time	8...15 ms	+20 °C, 6 bar outlet pressure (100...10% drop)
Electrical Protection Standard	IP65	With DIN EN 175301-803 Form A cable plug
Coil Insulation Class	Class H	Epoxy resin encapsulation

System Accessories and Ordering Context

BURKERT 41116 is supplied complete with an enclosed Form A cable plug. Additional factory accessories and alternate voltage executions within the same Type 0330 brass/NBR product family are detailed below:

Article No.	Designation	Technical Description
041116	Type 0330 Valve Complete	3/2-way NC, DN 3.0 mm, Brass, NBR, G 1/4, 230 V / 50 Hz AC, 0-10 bar
041107	Type 0330 Valve Complete	3/2-way NC, DN 3.0 mm, Brass, NBR, G 1/4, 24 V DC, 0-10 bar
041108	Type 0330 Valve Complete	3/2-way NC, DN 3.0 mm, Brass, NBR, G 1/4, 24 V / 50 Hz AC, 0-10 bar
314802	Cable Plug Type 2518	Form A DIN EN 175301-803, 0...250 V AC/DC without circuit
314812	Cable Plug Type 2518	Form A DIN EN 175301-803, 12...24 V AC/DC with LED indicator
314820	Cable Plug Type 2518	Form A DIN EN 175301-803, 12...24 V AC/DC with LED and varistor
137943	Cable Plug Type 2509	Form A DIN EN 175301-803, 0...250 V AC/DC without circuitry
013253	Mounting Plate Kit	Complete mounting bracket for DIN rail mounting (2/2-way pass body)
013372	Circlip Accessory	Retaining clip preventing inadvertent manual override operation
