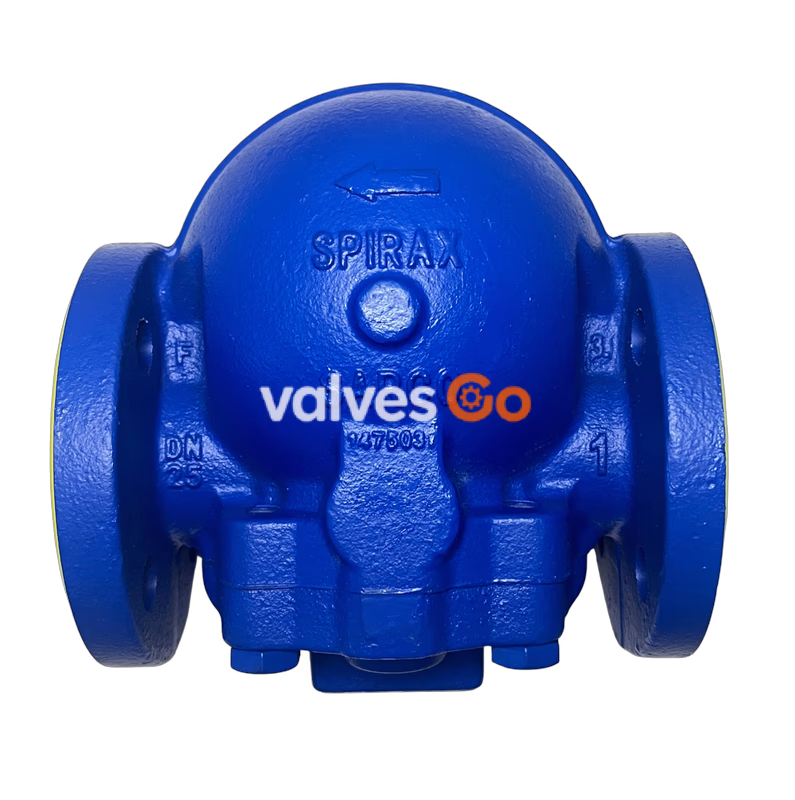

Product Overview

The Spirax Sarco FT14 is a flanged SG iron ball float steam trap having an integral automatic air vent. It is designed for all types of low and high pressure steam heating and process equipment.

Product Features

• Integral automatic air vent as standard.
• Optional Steam Lock Release (SLR) mechanism available (replaces the standard air vent).
• Flow direction can be specified as right to left (R-L) or left to right (L-R).
• With the standard air vent, it is known as the FT14 (e.g. FT14-4.5) or FT14 TV.
• With the SLR, it is known as the FT14 SLR.

Sizes and Pipe Connections

Size	Connection	Face-to-Face Standard
DN15, DN20, DN25	Flanged EN 1092 PN16	EN 26554 (Series 1)

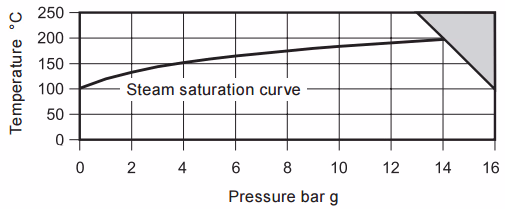

Pressure / Temperature Limits

Parameter	Value
Body design conditions	PN16
PMA - Maximum allowable pressure	16 bar g @ 120°C
TMA - Maximum allowable temperature	250°C @ 13 bar g
Minimum allowable temperature	-10°C
PMO - Maximum operating pressure for saturated steam service	14 bar g
TMO - Maximum operating temperature	250°C @ 13 bar g
Minimum operating temperature	0°C (Note: For lower operating temperatures consult Spirax Sarco)
ΔPMX - Maximum differential pressure	FT14-4.5: 4.5 bar FT14-10: 10 bar FT14-14: 14 bar
Maximum cold hydraulic test pressure	24 bar g

Materials

No.	Part	Material	Standard
1	Body	SG iron	DIN 1693 GGG 40.3
2	Cover bolts	Carbon steel	BS 3692 Gr. 8.8
3	Cover gasket	Reinforced exfoliated graphite
4	Cover	SG iron	DIN 1693 GGG 40.3
5	Valve seat	Stainless steel	BS 970 431 S29
6	Valve seat gasket	Stainless steel	BS 1449 304 S11
7	Pivot frame assembly securing screws	Stainless steel	BS 6105 A2-70
8	Pivot frame	Stainless steel	BS 1449 304 S16
9	Ball float and lever	Stainless steel	BS 1449 304 S16
10	Air vent assembly	Stainless steel
11	Air vent seat gasket	Stainless steel	BS 1449 304 S11
12	SLR assembly	Stainless steel	BS 970 303 S21
13	SLR gasket	Stainless steel	BS 1449 304 S11
14	SLR seal	Graphite
15	Blanking plug	Carbon steel	BS 970 230 M07
16	Blanking plug gasket	Stainless steel	BS 1449 304 S11
17	Erosion deflector (DN25 only)	Stainless steel	BS 1449 304 S16

Dimensions and Weights (approximate) in mm and kg

Size	A	B	C	D	E	F	Weight
DN15	150	107	147	69	45	195	7.2
DN20	150	107	147	69	45	195	7.3
DN25	160	122	163	75	52	201	9.3

Capacities

(Please refer to the capacity chart for detailed flow rates based on differential pressure.)

Installation and Maintenance

Installation

The trap must be installed with the float arm in the horizontal plane so that it rises and falls vertically. It is normally supplied with the flow direction from Right to Left (R-L) when facing the body, but can be configured for Left to Right (L-R) flow.

Maintenance

Before undertaking any maintenance on the trap, ensure that the system is fully isolated and that the pressure and temperature have reached safe levels.

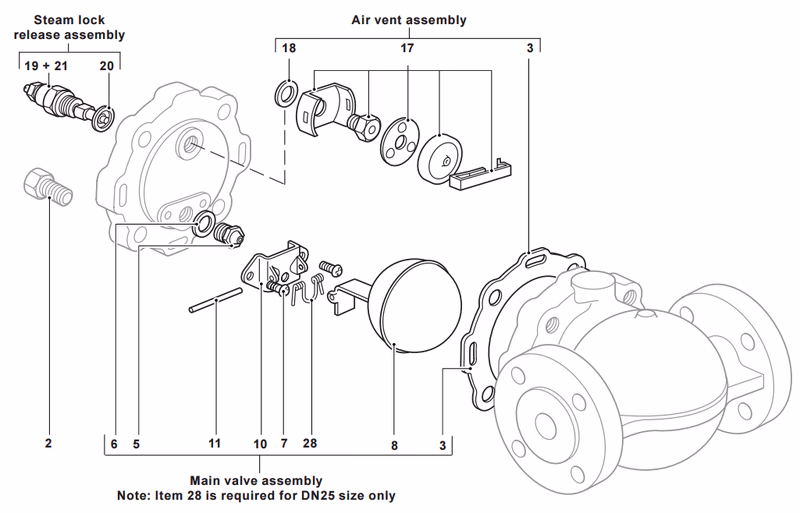

Spare Parts

The spare parts available are detailed below. No other parts are supplied as spares.

Available Spares

Description	Items
Main valve assembly with float	5, 6, 7, 8, 9
Air vent assembly	10, 11
Steam lock release and air vent assembly	10, 11, 12, 13, 14
Cover gasket (packet of 3)	3
Maintenance kit	3, 5, 6, 7, 8, 9, 10, 11

How to order spares Always order spares by using the description given in the column headed 'Available spares' and state the size, type of trap and pressure range. Example: 1 - Main valve assembly with float for a Spirax Sarco DN25 FT14-4.5 ball float steam trap.

Recommended Tightening Torques

Item No.	Qty	Size	Torque (Nm)
2	4	M10 x 30	20 - 24
5	1	17 A/F	50 - 55
7	2	M5 x 20	2.5 - 3.0
10	1	17 A/F	50 - 55
12	1	17 A/F	50 - 55
15	1	19 A/F	20 - 24

How to Order

Example: 1 off Spirax Sarco DN25 FT14-4.5 TV ball float steam trap, flanged EN 1092 PN16.
