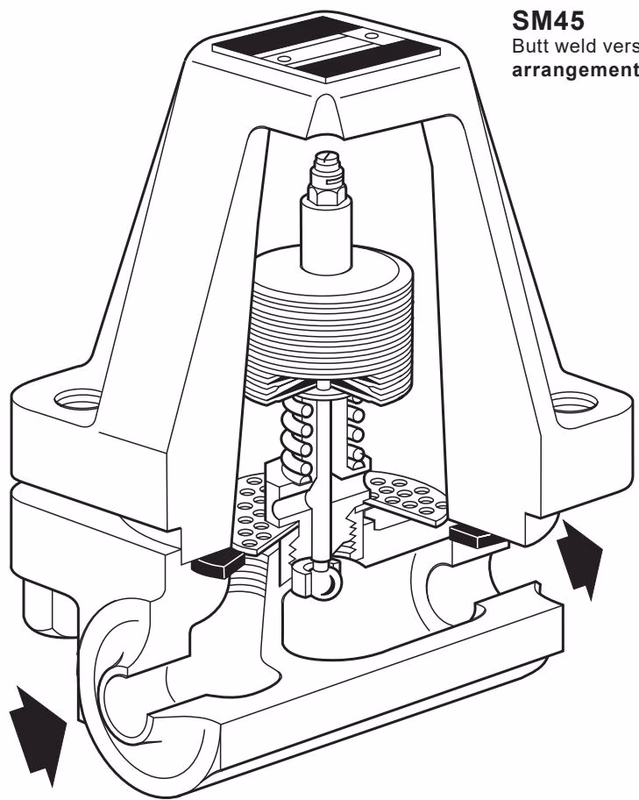

Spirax Sarco SM45 is a medium pressure, temperature sensitive, maintainable bimetallic steam trap. The operating element comprises a stack of bimetal discs which control the flow of condensate, air, and other incondensible gases at a preset temperature below steam saturation. The body and cover are forged, and the trap is available with integral flanges.

Standards and Certification

This product fully complies with the requirements of the Pressure Equipment Directive (PED) and carries the mark when so required. It is available with certification to EN 10204 3.1.

INFO

All certification/inspection requirements must be stated at the time of order placement.

Sizes and Pipe Connections

• Screwed BSP or NPT: 1/2", 3/4", and 1"
• Butt weld / Socket weld: 1/2", 3/4", 1", and 1 1/2" (butt weld to suit schedule 80 pipe; socket weld to BS 3799 Class 3000)
• Standard flange: DN15, DN20, DN25, and DN40 to EN1092 PN64, ASME 300, and JIS/KS 30K

Materials

No.	Part	Material	Specification
1	Cover	Alloy steel	DIN 17243 13Cr Mo44 (W/S 1.7335)
2	Locking nut	Stainless steel	BS 970 303 S21
3	Thermostatic element	Corrosive resistant bimetal / Stainless steel	1/2" - Rau Type RR, 3/4" - 1" Type 100
4	Strainer screen	Stainless steel	ASTM A240 316L
5	Valve seat	Stainless steel	BS 970 431 S29
6	Valve seat gasket	Stainless steel	BS 1449 304 S12
7	Valve	Stainless steel	BS 970 431 S29
8	Spring	Stainless steel	BS 2056 302 S26
9	Body	Alloy steel	DIN 17245 CS 22 Mo4
10	Cover gasket	Spirally wound stainless steel, graphite filled
11	Cover stud	Alloy steel	ASTM A193 Gr. B7
	Cover nut	Carbon steel	BS 4882 Gr. 2H
	Cover washer	Carbon steel	BS 4320 Table 1 Form A
12	Seat insert	Stainless steel	BS 970 321 S20
13	Name-plate	Stainless steel	BS 1449 304 S16

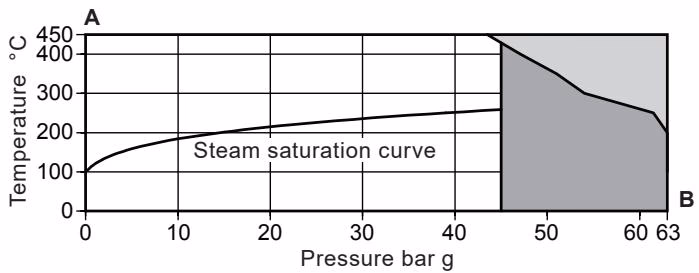

Pressure/Temperature Limits (ISO 6552)

Flanged: EN 1092 PN64, Screwed, Socket weld, Butt weld

WARNING

The product should not be used in this region as damage to the internals may occur.

Body design condition	PN64
PMA - Maximum allowable pressure	63 bar g @ 200 °C
TMA - Maximum allowable temperature	450 °C @ 43.5 bar g
Minimum allowable temperature	-10 °C
PMO - Maximum operating pressure	45 bar g @ 259 °C (for saturated steam service)
TMO - Maximum operating temperature	450 °C @ 43.5 bar g
Minimum operating temperature	0 °C
Maximum cold hydraulic test pressure	95 bar g

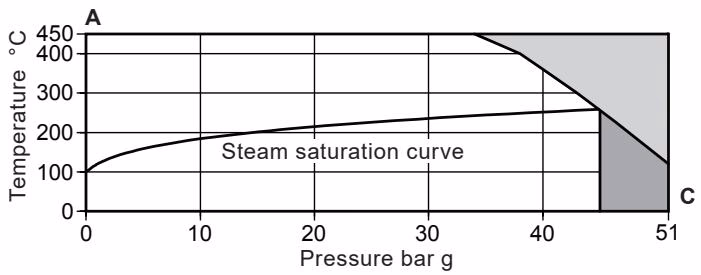

Flanged: ASME 300

WARNING

The product must not be used beyond the parameter of the PMA or TMA of the relative end connection.

Body design condition	ASME 300
PMA - Maximum allowable pressure	51 bar g @ 120 °C
TMA - Maximum allowable temperature	450 °C @ 34 bar g
Minimum allowable temperature	-10 °C
PMO - Maximum operating pressure	45 bar g @ 259 °C
TMO - Maximum operating temperature	450 °C @ 34 bar g
Minimum operating temperature	0 °C
Maximum cold hydraulic test pressure	72 bar g

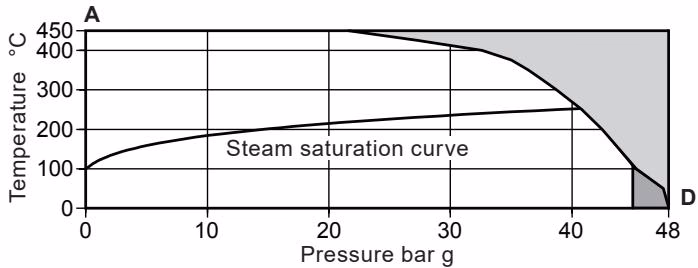

Flanged: JIS/KS 30K

Body design condition	JIS/KS 30K
PMA - Maximum allowable pressure	48 bar g @ 0 °C
TMA - Maximum allowable temperature	450 °C @ 22 bar g
Minimum allowable temperature	-10 °C
PMO - Maximum operating pressure	45 bar g @ 100 °C
TMO - Maximum operating temperature	450 °C @ 22 bar g
Minimum operating temperature	0 °C
Maximum cold hydraulic test pressure	77 bar g

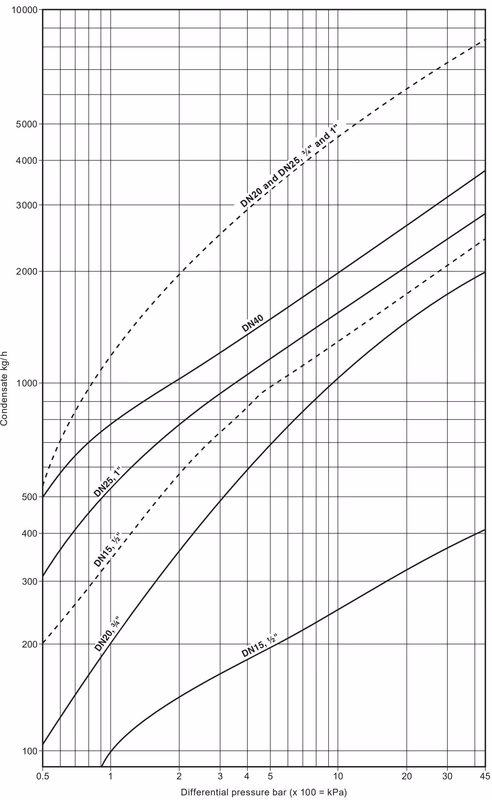

Capacities (K Values)

Size	DN15 (1/2")	DN20 (3/4")	DN25 (1")	DN40 (1 1/2")
K value	0.25	0.6	0.6	0.6

Dimensions and Weights (approximate in mm and kg)

Screwed, butt weld and socket weld

Size	A	C	D	E	H	Weight
1/2"	130	102	138	24	108	5.4
3/4"	130	102	138	24	108	5.4
1"	130	102	138	24	108	5.4

Flanged

Size	A1	C	D	E	H	Weight
DN15	210	102	138	24	108	7.2
DN20	230	102	138	24	108	8.6
DN25	230	102	138	24	108	9.5
DN40	260	102	146	30	114	13.6

Installation and Maintenance

The SM45 is designed for installation with the element in a horizontal plane with the cover at the top. When welding the trap into the line, there is no need to remove the element providing that welding is done by the electric arc method.

DANGER

The cover gasket contains a thin stainless steel support ring which may cause physical injury if not handled and disposed of carefully. Before undertaking any maintenance, the trap must be isolated from both supply and return lines and safely vented to atmospheric pressure.

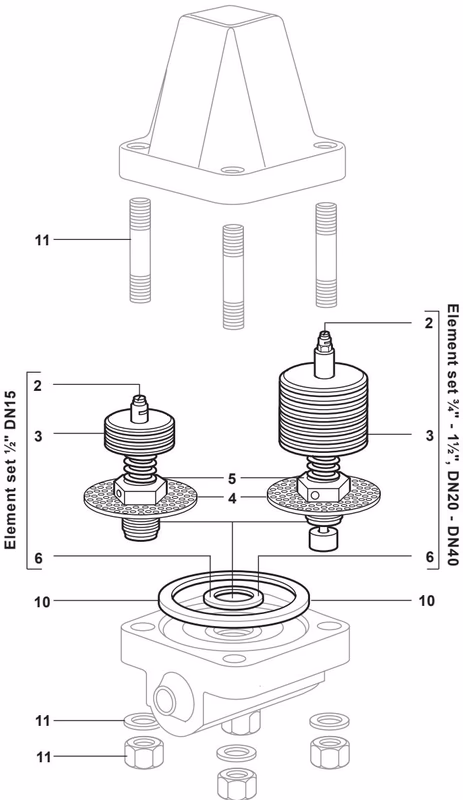

Spare Parts

The spare parts available are shown in solid outline.

Available spares	Part No.
Element set (Complete with valve, valve seat and valve seat gasket)	2, 3, 6
Strainer screen (3 off)	4
Set of gaskets (packet of 3 of each)	6, 10

Recommended Tightening Torques

Item	Part / Size	Thread	Torque (Nm)
5	Element (27 A/F)	-	120 - 132
11	Cover nuts (19 A/F)	M12	110 - 120
