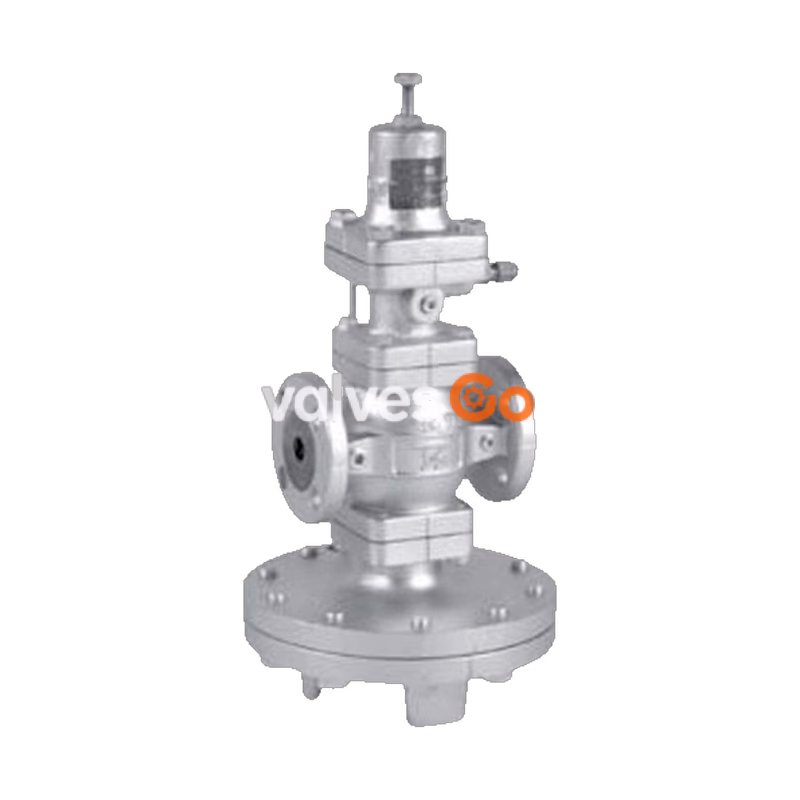

The Yoshitake GP-2000EN is a pilot-operated pressure reducing valve designed for steam applications. It features a ductile cast iron body, stainless steel main and pilot valves, and an external sensing method to provide highly stable secondary pressure control. With a large-size diaphragm and a high Cv value, it offers significantly improved flow and control capabilities compared to regular valves.

Features

• Stable Control: Large-size diaphragm and external sensing method control reduced pressure more stably.
• High Flow Capability: Since the Cv value is high, flow capability and control capability are significantly improved, one or two sizes smaller than the regular nominal size can be applied.
• Great Sealability: Spherical main valve offers great sealability and great reduction of valve seat leakage (compliant with ANSI Class IV).
• Low Pressure Management: Pressure management at low pressure (0.02 MPa or less) is available (with GP-2000L).

Specifications

Model	GP-2000	GP-2000EN
Application	Steam	Steam
Reduced pressure sensing method	External sensing *1	External sensing *1
Inlet pressure	0.1-2.0 MPa	0.1-2.0 MPa
Reduced pressure	0.02-0.15 MPa / 0.1-1.4 MPa / 1.3-1.7 MPa	0.02-0.15 MPa / 0.1-1.4 MPa / 1.3-1.7 MPa
Minimum differential pressure	0.05 MPa	0.05 MPa
Maximum pressure reduction ratio	20:1	20:1
Maximum temperature	220℃	220℃
Valve seat leakage	0.01% or less of rated flow	0.01% or less of rated flow
Body Material	Ductile cast iron	Ductile cast iron
Main / Pilot Valve Material	Stainless steel	Stainless steel
Diaphragm Material	Stainless steel	Stainless steel
Connection	JIS Flanged / Screwed	EN PN25 flanged

Sensing Pipe Requirement

*1 External sensing is standard. When installing the pressure reducing valve, be sure to connect the provided sensing pipe and joint. Unless the sensing pipe is connected, the valve will not operate. (Available with internal sensing type in different specifications. Note that Cv value of internal sensing type is lower than that of external sensing type.)

Variations

*2 Available with the GP-2000L, reduced pressure of 0.01 to 0.02 MPa, from 15A to 100A, inlet pressure of 0.1 to 0.5 MPa and maximum pressure reduction of 50:1. Available with external pilot type and ASME flanged versions.

Dimensions (mm) and Weights (kg)

GP-2000EN (PN25 Flanged)

Nominal size	L	H1	H	A	Weight
15A	150	170	398	200	15.7
20A	150	170	398	200	16.4
25A	160	175	404	226	20.8
32A	180	192	434	226	24.7
40A	200	192	434	226	25.6
50A	230	216	498	276	38.1
65A	290	251	552	352	66.7
80A	310	264	575	352	73.0

GP-2000 (Screwed Type)

Nominal size	d	L	H1	H	A	Weight
15A	Rc 1/2	150	170	398	200	14.0
20A	Rc 3/4	150	170	398	200	14.0
25A	Rc 1	160	175	404	226	18.5
32A	Rc 1-1/4	180	192	434	226	21.5
40A	Rc 1-1/2	180	192	434	226	21.5
50A	Rc 2	230	216	498	276	33.0

Remote Control & Piping

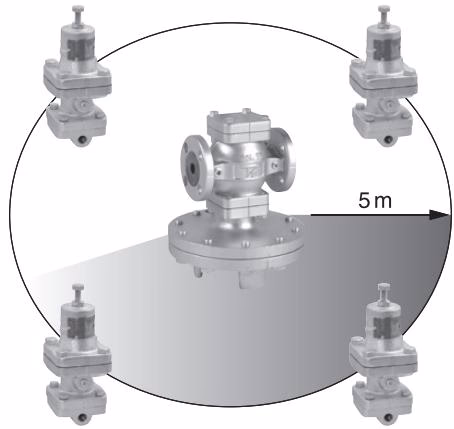

Manual Set Point Type Remote Control (Maximum distance of 5 meters)

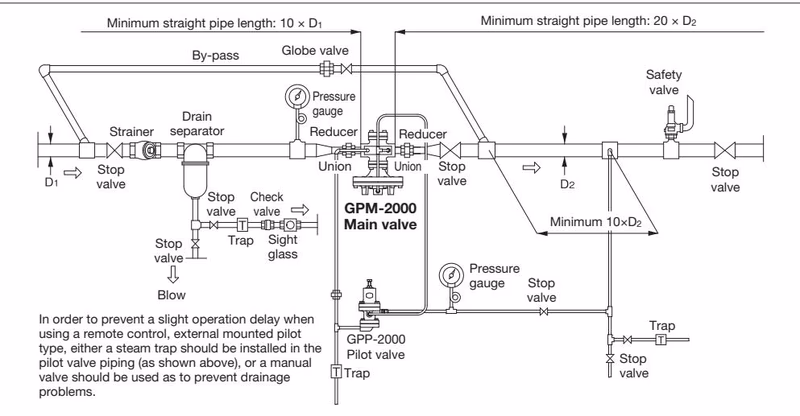

Piping Example

Variations

GPP-2000 pilot valve

GPM-2000 main valve (screwed)

GPM-2000 main valve (flanged)

GP-2000 Flow Rate Table (Partial)

P1 (MPa)	P2 (MPa)	15A	20A	25A	32A	40A	50A	65A
2.0	0.1-0.9	1,260	1,814	2,746	3,603	4,737	8,064	13,608
	1	1,234	1,777	2,690	3,530	4,641	7,899	13,330
	1.2	1,137	1,638	2,480	3,254	4,278	7,283	12,290
