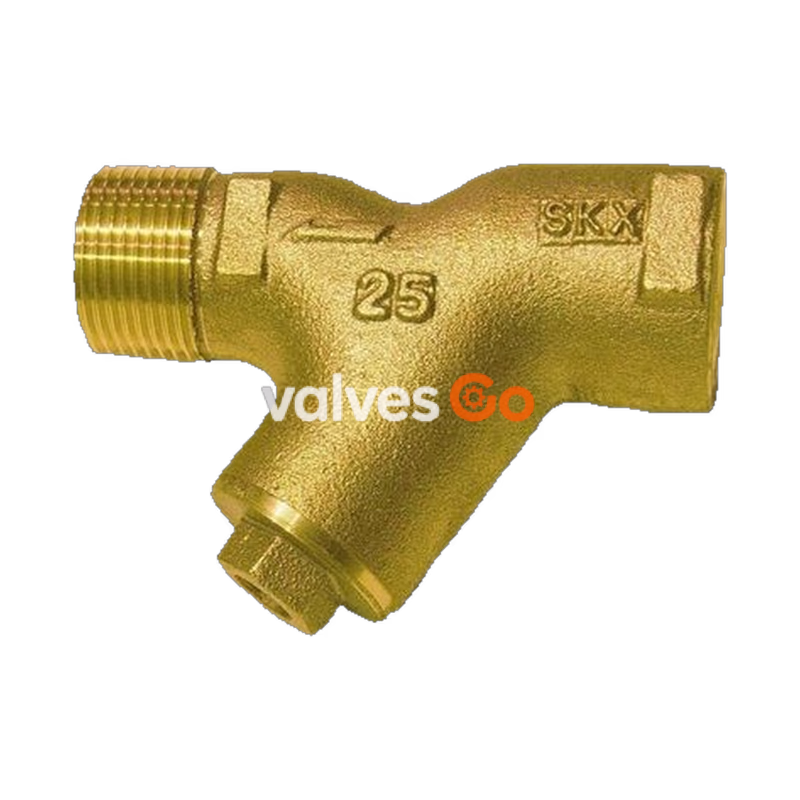

The Yoshitake SY-24 and SY-24-N are light weight and compact Y-type strainers designed for dust prevention in cold and hot water lines. Featuring a bronze body, these strainers eliminate concerns about red water and allow for direct connection to pressure reducing valves without the need for additional piping equipment such as nipples.

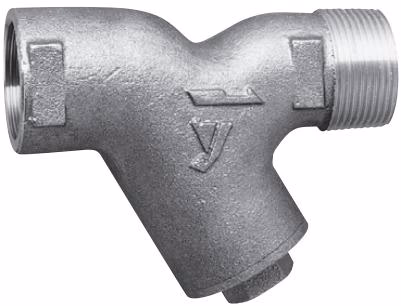

Features

• Light weight and compact. Used for dust prevention in a cold and hot water line.
• Able to connect directly to pressure reducing valve, and no need for piping equipment such as nipple.
• Screen cleaning is easy. Cap can be removed easily since the cap sealing is O-ring.
• No need to worry for red water because of bronze body.
• JWWA approval (SY-24-N)

Specifications

Model	SY-24	SY-24-N
Application	Cold and hot water	Cold and hot water
Maximum pressure	1.6 MPa	1.6 MPa
Maximum temperature	80℃	80℃
Body Material	Bronze	Bronze (NPb-treated)
Screen Material	Stainless steel	Stainless steel
Perforation	φ2.5-4P	φ2.5-4P
Mesh	Standard 60 mesh	Standard 60 mesh
Connection	Inlet: JIS Rc screwed Outlet: JIS R screwed	Inlet: JIS Rc screwed Outlet: JIS R screwed

Mesh Availability

• Available with 20 to 100 mesh screen for SY-24.
• SY-24-N mesh options are 20, 40, 60, 80, and 100 mesh.

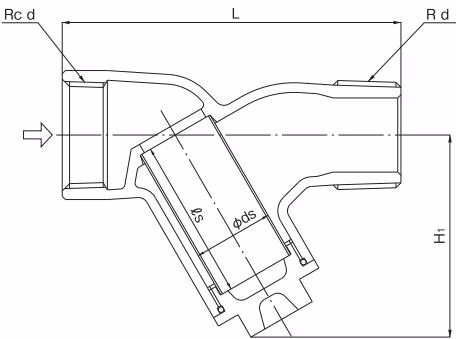

Dimensions and Weights

Nominal size	d	L (mm)	H1 (mm)	ds (mm)	ls (mm)	Weight (kg)
15A	1/2	80	46	18	32	0.25
20A	3/4	90	51	20	35	0.35
25A	1	105	63	25	50	0.55
32A	1-1/4	130	80	32	60	1.00
40A	1-1/2	150	90	40	70	1.44
50A	2	175	112	50	85	2.90

Structural Parts

No.	Name of Parts	Material
1	Body	Bronze (CAC406)
2	Cap	Bronze (CAC406)
3	Screen	Stainless Steel (SUS304)
4	O Ring	NBR / EPDM

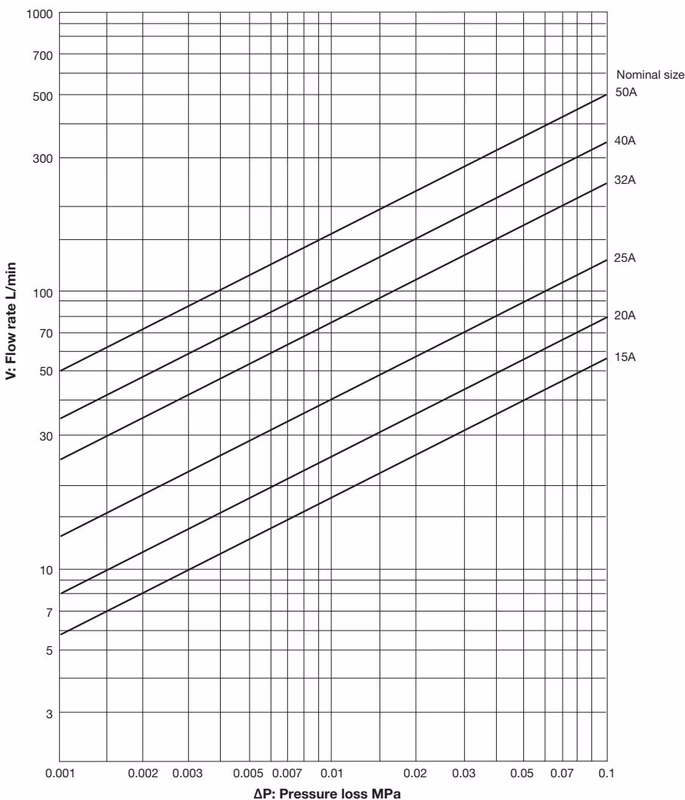

Pressure Loss Chart (For Water)

Chart Information

Please refer to P.4-12 in the main catalog for information about how to look at the chart and calculating examples.
