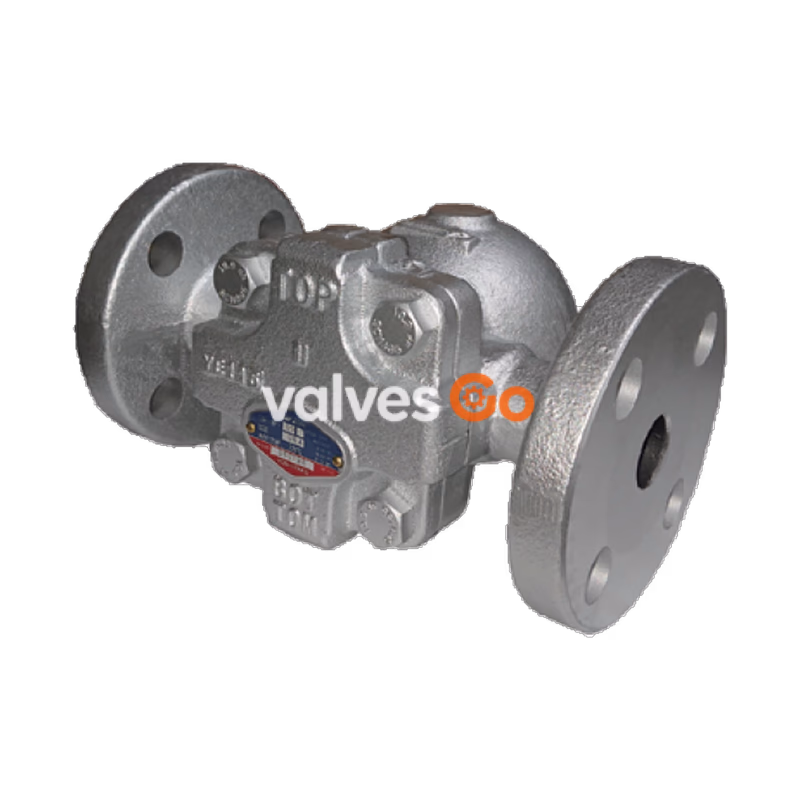

The Yoshitake TSF-11SF is a high-performance float steam trap constructed from cast stainless steel, providing exceptional durability and corrosion resistance. It is designed to discharge condensate effectively without retention, realizing an energy-saving steam system with no steam loss. The incorporated thermostatic air vent rapidly discharges air from inside the piping, significantly shortening the equipment warming-up time. By turning the cock, the TSF-11SF can accommodate various flow directions, including horizontal and vertical installations, allowing flow direction adjustment without disassembling the cover. Since the main parts are installed on the cover, inspection and parts replacement can be easily conducted without detaching the body from the piping.

Specifications

Specification	Value
Nominal Size	25A - 50A
Application	Steam condensate
Working Pressure	TSF-11SF-5: 0.01 - 0.5 MPa TSF-11SF-10: 0.01 - 1.0 MPa TSF-11SF-21: 0.01 - 2.1 MPa
Maximum Temperature	220°C
Body Material	Cast stainless steel
Float Material	Stainless steel
Valve & Valve Seat	Stainless steel
Connection	JIS 10K FF, JIS 20K RF, ASME 150lb RF, ASME 300lb RF, BS EN 25/40 RF flanged

Installation and Operation

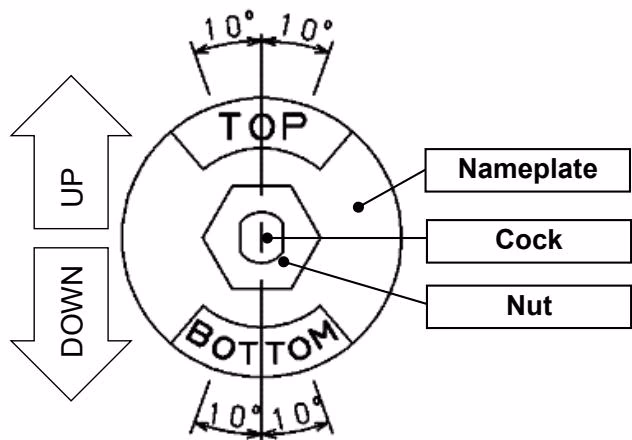

Flow Direction and Nameplate Adjustment

By turning the cock, it is possible to meet various flow directions such as horizontal or vertical installation. Adjust the direction of the nameplate in a no-pressure condition after installation. Turn the cock and adjust the direction of the nameplate to position the "TOP" and "BOTTOM" signs correctly.

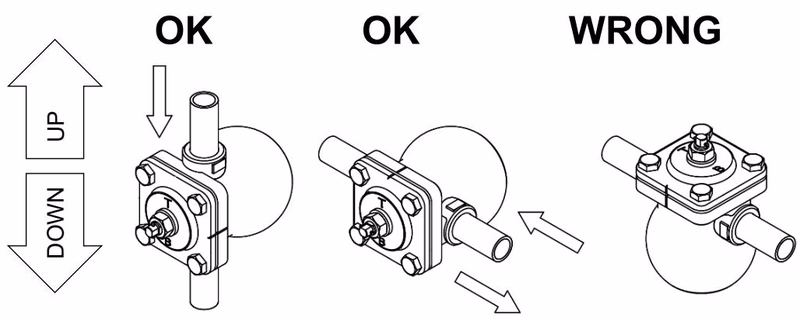

Installation Posture

• Allowable tilt from the horizontal/vertical line is within ±10°.
• Wrong posture hampers proper operation.
• Make sure to support the piping immovably.

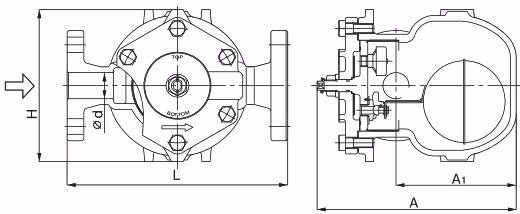

Dimensions and Weights

Nominal Size	L (mm)	A (mm)	A1 (mm)	H (mm)	Weight JIS 10K (kg)	Weight JIS 20K (kg)
25A	270	242	146.5	186	11.7	12.0
32A	270	242	146.5	186	12.6	13.0
40A	280	242	146.5	186	13.0	13.5
50A	290	242	146.5	186	14.2	14.7

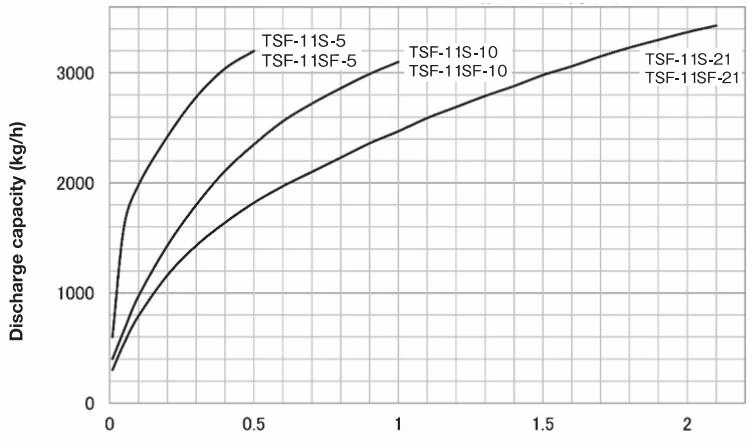

Maximum Continuous Discharge Capacity

The discharge capacity shown in the chart below is the maximum value. In designing a system, select a steam trap with a sufficient safety factor (more than two times the regular level).
