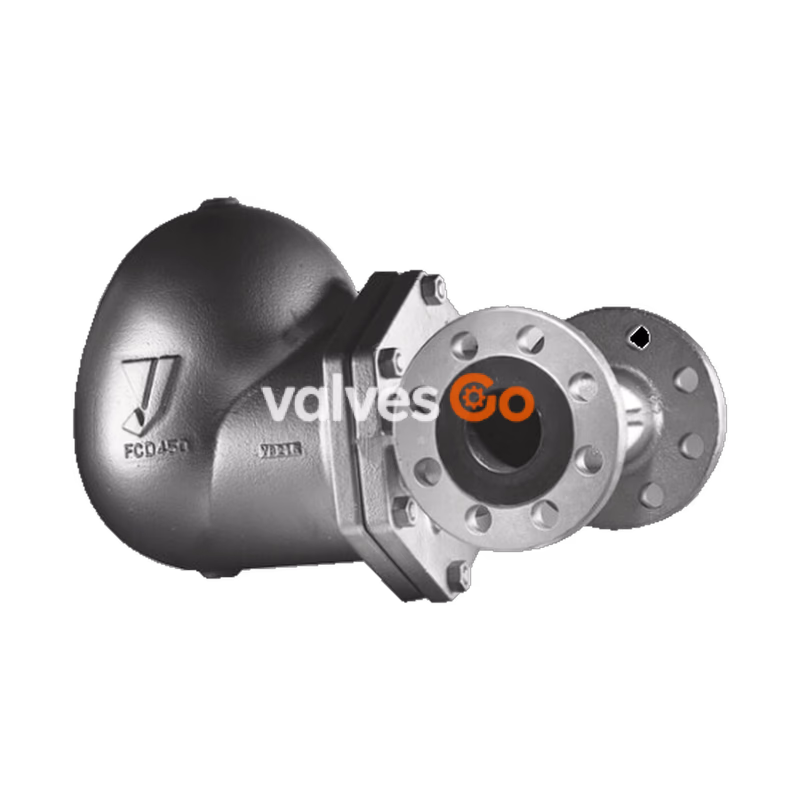

Yoshitake TSF-13 and TSF-13F are high-capacity float steam traps designed to efficiently discharge steam condensate. These models are available in 40A and 50A nominal sizes and provide stable operation realized by adopting a large float design.

Features

Stable operation is realized by adopting a large float, ensuring reliable and continuous condensate discharge from the piping system.

Specifications

Nominal Size	40A, 50A
Applicable Fluid	Steam condensate
Connections	JIS 10KRF/20KRF

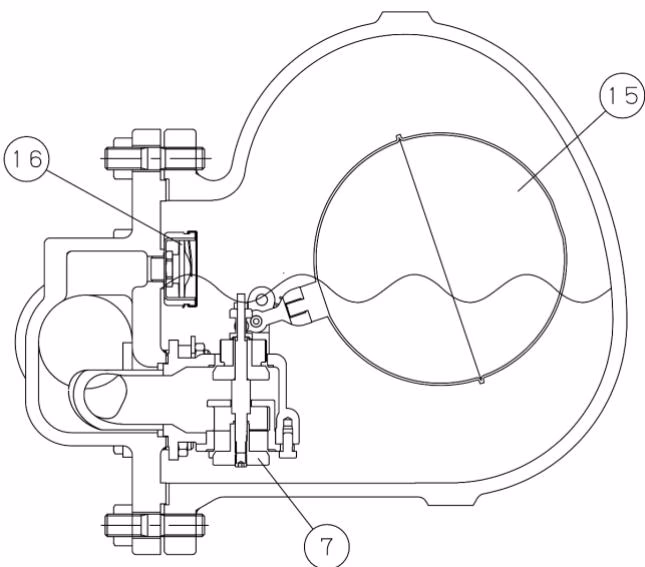

Operation and Structure

At start-up, since the float is down, the valve set is closed. In this state, air in the system and piping is discharged out through the air vent which is opened. When condensate flows in, the float rises, opening the valve to discharge the condensate.

Dimensions and Weights

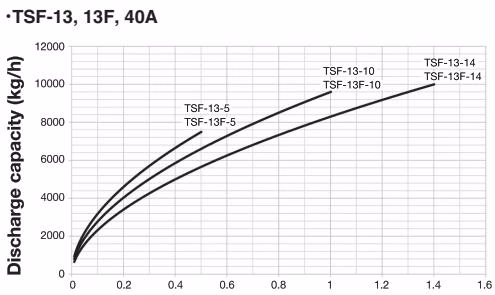

Maximum Continuous Discharge Capacity

When selecting a steam trap, ensure a sufficient safety factor of at least twice the required capacity.

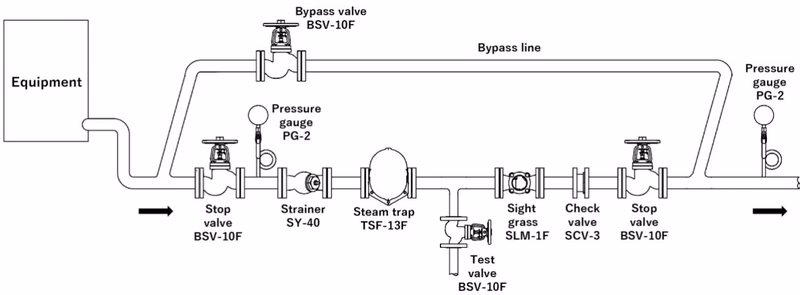

Piping Example

Piping Precaution

The pipe size on the outlet side of the product should be large enough so that the discharged condensate flows without any resistance.
