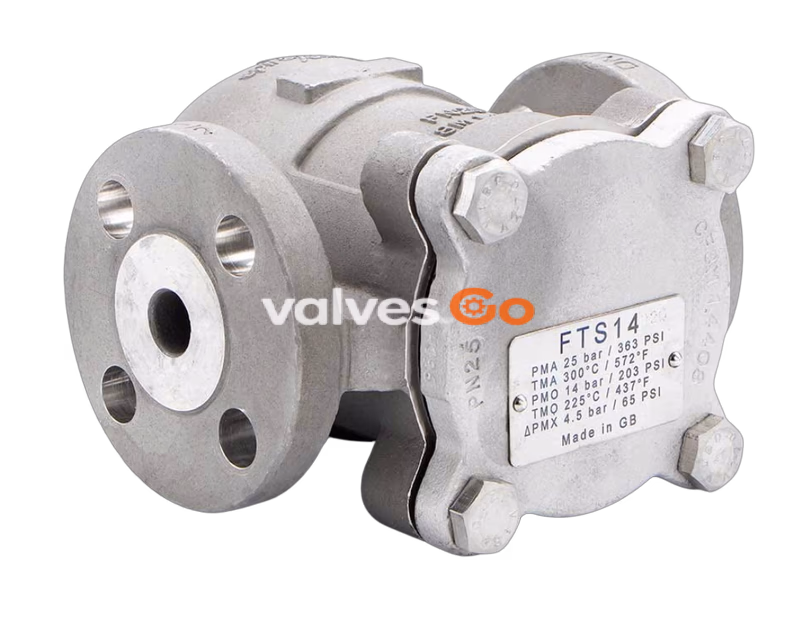

Product Overview

The FTS14 is an austenitic stainless steel (316) ball float steam trap with an integral automatic air vent. It provides efficient condensate drainage and prompt air removal to ensure process equipment operates to its maximum potential.

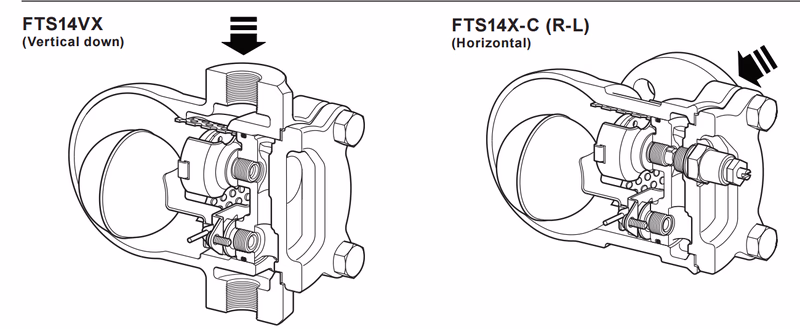

As standard, the FTS14 has horizontal connections with flow from right to left (R-L). However, its unique design allows the cover to be simply rotated to provide horizontal left to right (L-R) and vertical up or vertical down configurations.

Key Features

• High Corrosion Resistance: All 316 austenitic stainless steel body and internals.
• Versatile Orientation: Easily rotatable cover for horizontal (L-R, R-L) or vertical installation.
• Integral Air Venting: Built-in automatic air vent ensures quick start-ups.
• Hygienic Option: Tri-clamp ends available for sanitary applications (FTS14-4.5 only).

Sizes and Pipe Connections

Available sizes: ½", ¾", 1" and DN15, DN20, DN25.

Connections:

• Screwed: BSP T Rp (ISO 7-1) or NPT
• Socket weld: ASME B 16.11, BS 3799 Class 3000
• Flanged: EN 1092-1 PN16/PN25, ASME B 16.5 Class 150/300
• Tri-clamp: For hygienic/sanitary applications (FTS14-4.5 only)

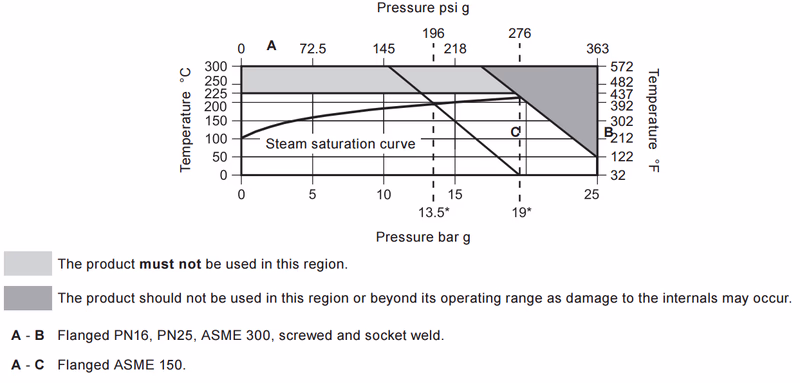

Pressure and Temperature Limits

The FTS14 is designed for PN25 body conditions.

Parameter	Value
Body design conditions	PN25
PMA - Maximum allowable pressure	25 bar g @ 50 °C
TMA - Maximum allowable temperature	300 °C
PMO - Maximum operating pressure	19 bar g (Flanged PN16/25, ASME 300, SW, Screwed)
TMO - Maximum operating temperature	225 °C @ 19 bar g
Minimum operating temperature	-20 °C
ΔPMX - Max. differential pressure	4.5 bar (FTS14-4.5), 10 bar (FTS14-10), 14 bar (FTS14-14)

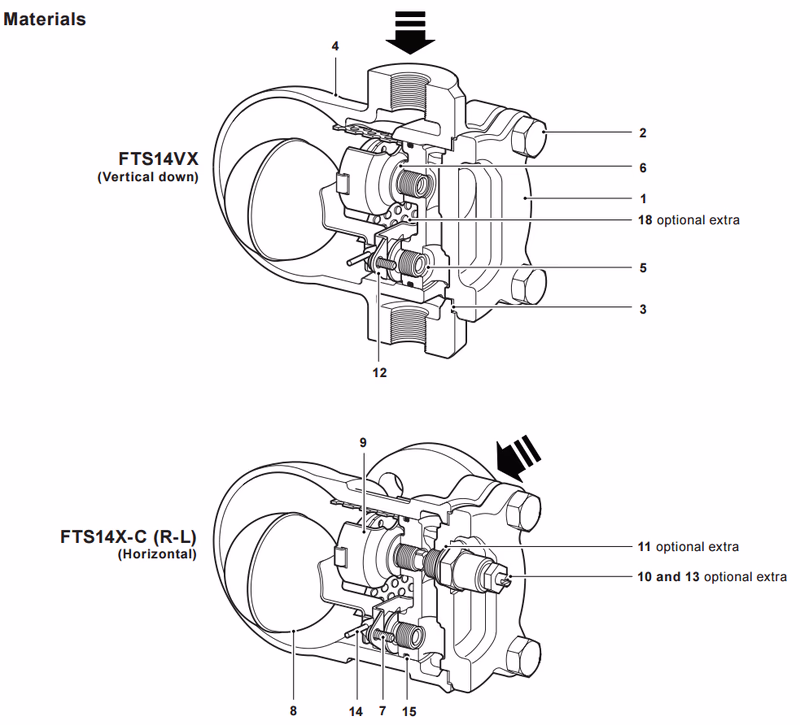

Materials

No.	Part	Material	Standard
1	Body	Austenitic stainless steel (316)	EN 10213-4 (1.4408) / ASTM A351 CF8M
2	Cover bolts	Stainless steel	BS EN 3506 A2-70
3	Cover gasket	Reinforced exfoliated graphite
4	Cover	Austenitic stainless steel (316)	EN 10213-4 (1.4408) / ASTM A351 CF8M
5	Main valve seat	Stainless steel	BS 970 431 S29
8	Ball float and lever	Stainless steel	BS 1449 304 S16
15	'O' ring	Grey Viton	FDA CFR Title 21, Para 177

Capacities

Dimensions and Weights (approximate)

Size	A (Screwed/SW)	A (Tri-clamp)	A1 (Flanged PN16/25)	B	C	D	E	F	Weight (Screwed)	Weight (Flanged)
½" (DN15)	135	180	150	97	48	162	135	22	3.75 kg	5.00 kg
¾" (DN20)	135	180	150	97	48	162	135	22	3.75 kg	5.00 kg
1" (DN25)	139	200	160	113	51	179	145	22	4.25 kg	6.25 kg

(Dimensions in mm)

Optional Extras

• Internal strainer (FTS14X): Comes with a built-in strainer screen.
• Steam lock release (FTS14-C): A manually adjustable needle valve can be added for use as a steam lock release mechanism.
• Tapped cover: The cover can be tapped ⅛" BSP for the installation of a temperature sensor.

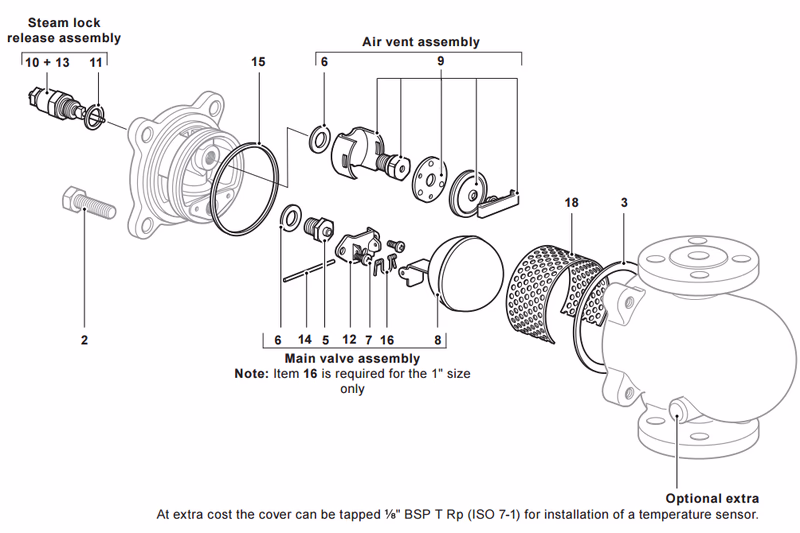

Spare Parts

Available spare parts include:

• Maintenance kit
• Gasket set

How to Order

Example: 1 off Spirax Sarco ½" FTS14X-4.5 R-L (right to left) stainless steel float trap fitted with screwed BSP connections. Fitted with integral air vent and strainer screen.
